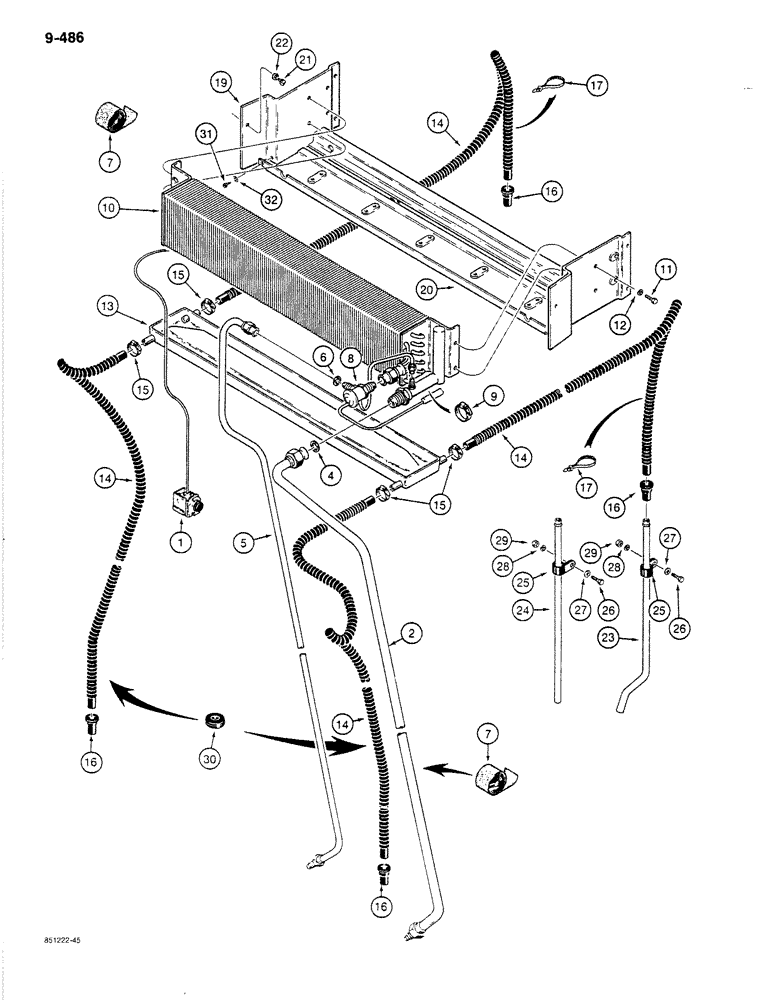

Запчасти Case 780C (9-486) - CAB AIR CONDITIONING (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
L73646
SWITCH
air conditioning control, see Figure 9-466 or 9-468
1шт.
2
F44941
TUBE
SPARE PART section, 3/4" OD
1шт.
3
RESERVED
1шт.
4
222-996
GASKET,3/4 Tube, Fl, Copper
copper, 3/4" tube OD, suction tube
1шт.
5
F44940
TUBE
SPARE PART pressure, 3/8" OD
1шт.
6
222-993
GASKET,3/8 Tube, Fl, Copper
1шт.
7
A42902
SEALING STRIP
TAPE - cork, insulating, bulk roll, 30 ft (914 cm) long
1шт.
8
F64389
VALVE
expansion
1шт.
9
98156C1
CLAMP
CLAMP - hose
1шт.
10
F44712
CORE
evaporator
1шт.
11
113-1
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
4шт.
12
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
4шт.
13
F44731
PAN
condensation
1шт.
14
F44783
TUBE
7/16" (11 mm) ID x 100" (2540 mm) long, cut from F64508, see below, drain, from condensation pan
4шт.
15
214-300
CLAMP
hose
4шт.
16
F44790
VALVE
END - drain hose, rubber
4шт.
17
L18337
CABLE TIE,9.95"-12.1" lg
CABLE STRAP tie, 15 inch, nylon
1шт.
18
RESERVED
1шт.
19
F96821
BRACKET
mounting, core
1шт.
20
F96820
PANEL
mounting, core
1шт.
21
187-1903
SELF-TAP SCREW,Hex Hd, #12 x 1/2"
hex head, self-tapping, No. 12-24 NC x 1/2", plated
6шт.
22
193-7
LOCK WASHER,Ext Tooth, #12
6шт.
23
L104944
TUBE,0.375" OD
SPARE PART extension, air conditioning drain, right-hand
1шт.
24
L104945
TUBE,0.375" OD x 17.5" L
SPARE PART extension, air conditioning drain, left-hand
1шт.
25
515-2295
CLAMP,3/8", Insul, 5/16" Bolt
drain tubes
4шт.
26
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
4шт.
27
195-103
WASHER,5/16"
4шт.
28
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
4шт.
29
9635082
NUT,5/16" - 18, Gr 5
4шт.
30
L15339
GROMMET,5/16" ID x 1 1/4" Groove Dia
rear drain hoses, in fenders
2шт.
31
187-460
SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"
indented hex washer head, slotted, No. 10-16 NC x 1/2", black
2шт.
32
193-6
LOCK WASHER,Ext Tooth, #10
2шт.
F64508
HOSE,0.43" ID x 100' Bulk
drain
1шт.
Выбрано товаров: 33
