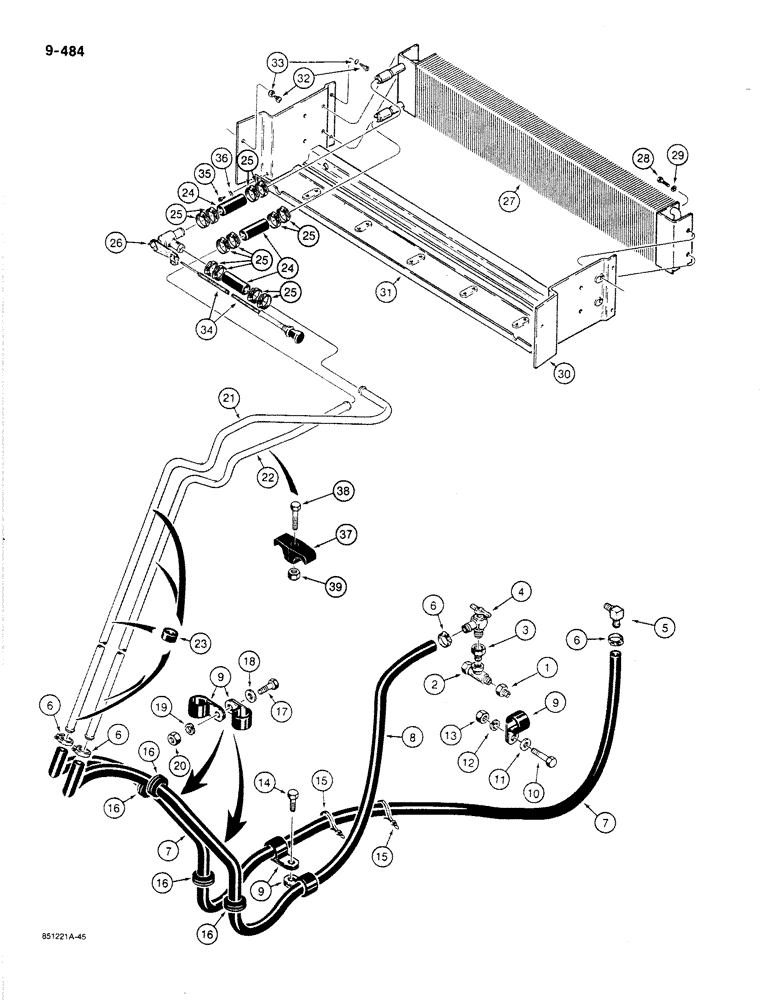

Запчасти Case 780C (9-484) - CAB HEATING SYSTEM (09) - CHASSIS/ATTACHMENTS

1

221-1060

REDUCER,Hex, 3/4" x 1/2" NPT

REDUCER - 3/4" x 1/2" NPT, supply hose, at engine manifold, left-hand side

1шт.

2

221-693

TEE,1/2" NPT

street, 1/2" NPT

1шт.

3

221-1056

BUSHING

REDUCER - 1/2" x 3/8" NPT

1шт.

4

A16764

VALVE

shutoff, at engine manifold, left-hand side

1шт.

5

217-144

45 ELBOW,45 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

Return hose, at engine, right-hand side

1шт.

6

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

hose, adjustable

4шт.

7

D90653

SPARE PART HOSE - 5/8" (16 mm) ID x 147-5/8" (3750 mm) long, cut from A42610 bulk, see below, heater, Serial Range: return-engine

1шт.

8

D76670

LARGE HOSE

SPARE PART 5/8" (16 mm) ID x 88" (2235 mm) long, cut from A42610 bulk, see below, heater supply from manifold

1шт.

9

R21385

CLAMP

P-style, heater hoses

7шт.

10

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

11

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

flat, 3/8", hardened, plated

1шт.

12

192-21

LOCK WASHER,3/8"

1шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

1шт.

14

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

16

A7808

GROMMET

hoses at floor plate and fender

4шт.

17

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

18

195-103

WASHER,5/16"

2шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

20

9635082

NUT,5/16" - 18, Gr 5

2шт.

21

F44939

HEATER TUBE

return

1шт.

22

F44938

HEATER TUBE

supply

1шт.

23

F64347

SEAL

INSULATOR - tubes

5шт.

24

R54967

HEATER HOSE,15.50 mm ID x 70.00 mm

Cut from 97252C1 bulk, See below, Heater tubes to flow control valve and core

3шт.

25

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

hose, adjustable

12шт.

26

F63865

VALVE

flow control, heater

1шт.

27

F45204

HEAT-EXCHANGER

CORE

1шт.

28

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

29

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

4шт.

30

F96821

BRACKET

heater core

1шт.

31

F96820

PANEL

lower, heater core

1шт.

32

187-1903

SELF-TAP SCREW,Hex Hd, #12 x 1/2"

hex head, self-tapping, No. 12-24 NC x 1/2", plated

6шт.

33

193-7

LOCK WASHER,Ext Tooth, #12

6шт.

34

F44755

CABLE

heater control, see Figure 9-466 or 9-468

1шт.

35

187-460

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

indented hex washer head, slotted, No. 10-16 NC x 1/2", black

2шт.

36

193-6

LOCK WASHER,Ext Tooth, #10

2шт.

37

D120613

CLAMP,20mm ID

tube

1шт.

38

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

39

131-666

LOCK NUT,3/8"-16, GB

1шт.

97252C1

HOSE,15.875 mm ID x 15240 mm Bulk

1шт.

A42610

LARGE HOSE

HOSE,LARGE bulk, 5/8" (16 mm) ID x 50 ft (1524 cm) long

1шт.
