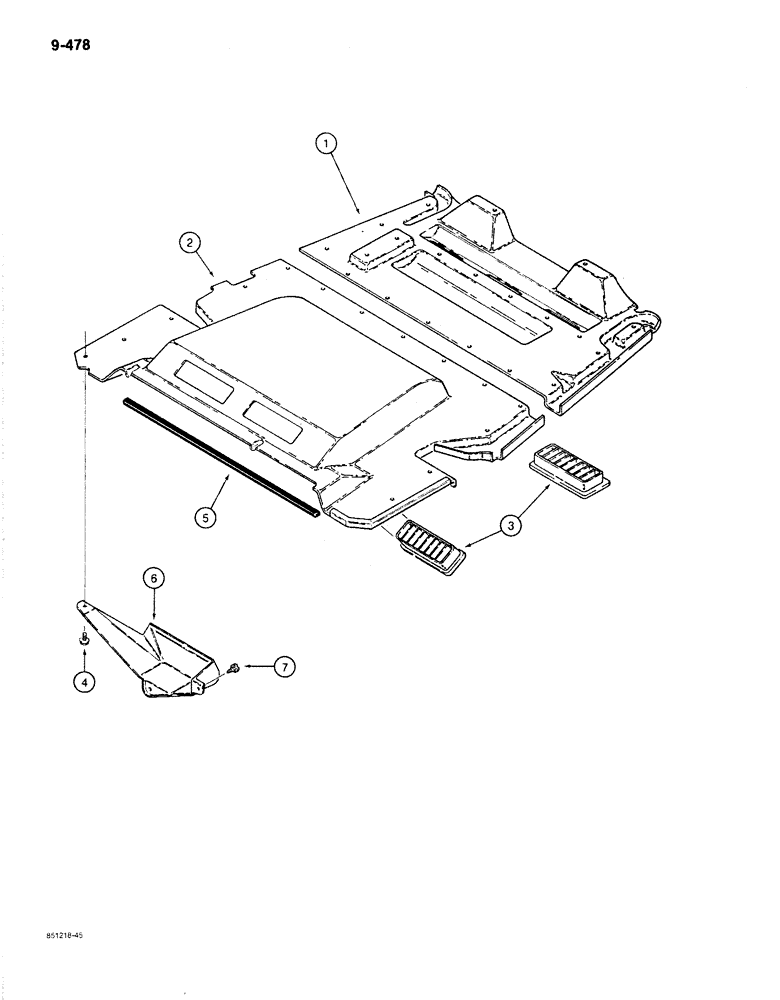

Запчасти Case 780C (9-478) - CAB HEADLINER AND WINDSHIELD WIPER COVERS (09) - CHASSIS/ATTACHMENTS

1

F45342

LINING

HEADLINER - front

1шт.

2

F45343

MOLDING

HEADLINER - rear

1шт.

3

L109555

GUARD

LOUVER - headliner

5шт.

4

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - special

34шт.

5

REF

INSTRUCTION

SEAL - foam, rear headliner, 23-5/8" (600 mm) long, cut from A42905, see below

1шт.

6

F45386

COVER ASSY

COVER - rear windsheild wiper motor

1шт.

7

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - self-tapping, Phillips head, with washer, No. 10-16 x 3/4", black

1шт.

A42905

FOAM

SEAL - foam, bulk roll, adhesive-backed, 1/2" (13 mm) wide x 1/8" (3 mm) thick x 50 ft (15.2 m) long

1шт.
