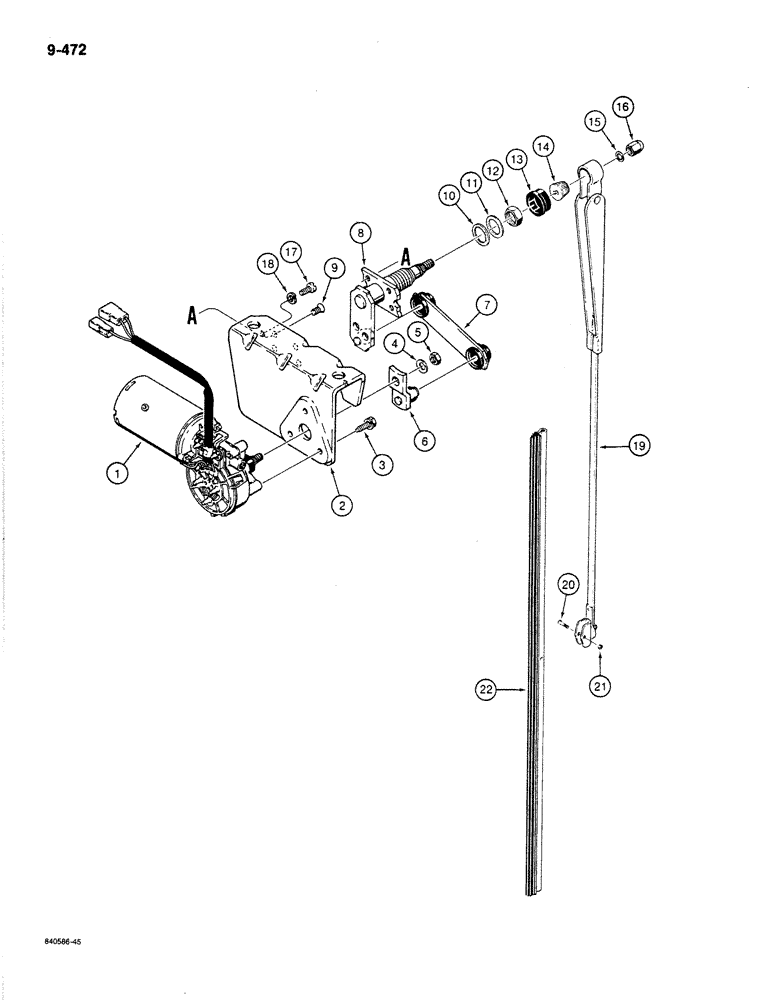

Запчасти Case 780C (9-472) - CAB FRONT WINDSHIELD WIPER, ROBERT BOSCH PARTS (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

MOTOR ASSEMBLY - includes backet, front windshield wiper, 24 volt, Robert Bosch assembly, for ordering information see Figure 9-470, Includes: Ref. 1 - 16

1шт.

A187599

MOTOR

ASSEMBLY - includes bracket, front windshield wiper, 12 volt, includes Refs. 1A - 16

1шт.

1

F96892

MOTOR HOUSING

windshield wiper, used on models with 24 volt electrical circuit

1шт.

1a

A186256

WIPER MOTOR,12V

windshield, used on models with 12 volt electrical circuit, not shown

1шт.

2

N8359

SUPPORT

windshield wiper assembly

1шт.

3

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

ASSEMBLY - includes lock washer, special, motor to bracket

3шт.

4

N8361

SPRING WASHER

bent, special

1шт.

5

L112090

NUT

hex, special, 8 mm

1шт.

6

N8360

SUPPORT

ARM - drive

1шт.

7

N9089

DRAG LINK

wiper

1шт.

8

N9090

WIPER BLADE

BLADE, WIPER SHAFT - pivot

1шт.

9

N8356

SCREW,Phillips Drive, Flat HD, M5 x 8mm

special, pivot shaft to bracket

4шт.

10

N6749

WASHER

fiber

1шт.

11

N6750

WASHER

steel

1шт.

12

N6751

NUT

shaft

1шт.

13

N6752

CAP

shaft, rubber

1шт.

14

N6753

BLOCK DRIVER

knurled

1шт.

15

193-68

LOCK WASHER,Int Tooth, 3/8"

1шт.

16

N6754

NUT

dome, special

1шт.

17

182-548

SCREW,Slotted Pan Hd, 1/4"-28 x 3/8"

machine, pn head slotted, 1/4" - 28 NF x 3/8", plated

2шт.

18

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

19

F44928

WIPER

ARM - windshield wiper, 22" (559 mm) long, Includes: Ref. 20 and 21

1шт.

20

182-567

SCREW,Sltd Pan Hd, #5-40 x 1/2"

machine, pan head slotted, No. 5-40 NC x 1/2", plated

1шт.

21

129-14

NUT,#5-40

1шт.

22

F43938

WIPER BLADE

BLADE, WIPER windshield, 22" (559 mm) long

1шт.
