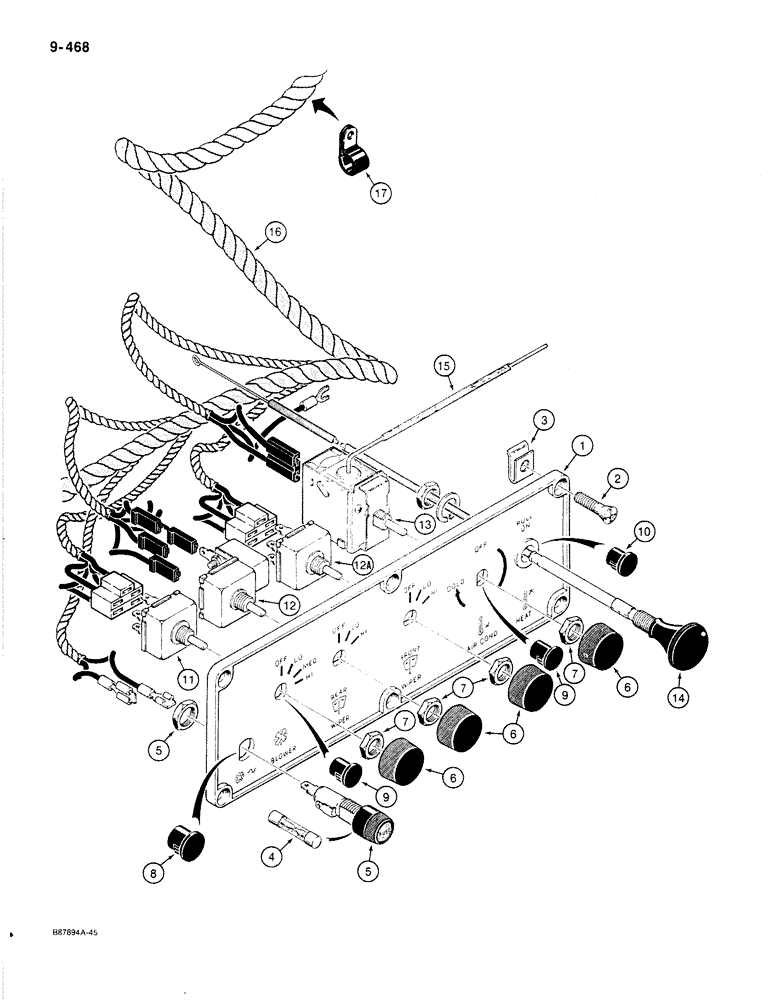

Запчасти Case 780C (9-468) - CAB CONTROL PANEL AND WIRING, USED ON MODELS WITH 12 VOLT ELECT CIRCUIT (09) - CHASSIS/ATTACHMENTS

1

F44727

PANEL ASSY.

control

1шт.

2

187-1084

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

oval Phillips head, No. 10-16 NC x 3/4", plated

6шт.

3

131-861

SPRING NUT,Tinn, U, #10-24

6шт.

4

223-27

FUSE,20 Amp, Type 3AG

20 amperes, 3AG20

1шт.

5

A22874

HOLDER

fuse

1шт.

6

A42578

KNOB

switch, use as required

2-4шт.

7

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

retaining, switch, use as required

2-4шт.

8

353-404

PLUG,Dome, .500" hole, Nylon

If used

1шт.

9

353-403

PLUG,Dome, .437" hole, Nylon

If used

1-3шт.

10

353-402

PLUG,Dome, .375" hole, Nylon

If used

1шт.

11

A42622

SWITCH

blower

1шт.

12

A42660

SWITCH

rear windshield wiper

1шт.

12a

R52415

ROTARY SWITCH

front windsheild wiper

1шт.

13

L73646

SWITCH

air conditioner

1шт.

14

1343934C1

CABLE

heat control (Replaces F44755)

1шт.

15

F44879

TUBE,0.12" ID x 0.17" OD x 20" L

from air conditioner switch

1шт.

16

D137814

HARNESS

cab

1шт.

17

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

cab harness at opertaors compartment frame, front, for mounting hardware see Figure 9-448, Refs. 2-5

1шт.
