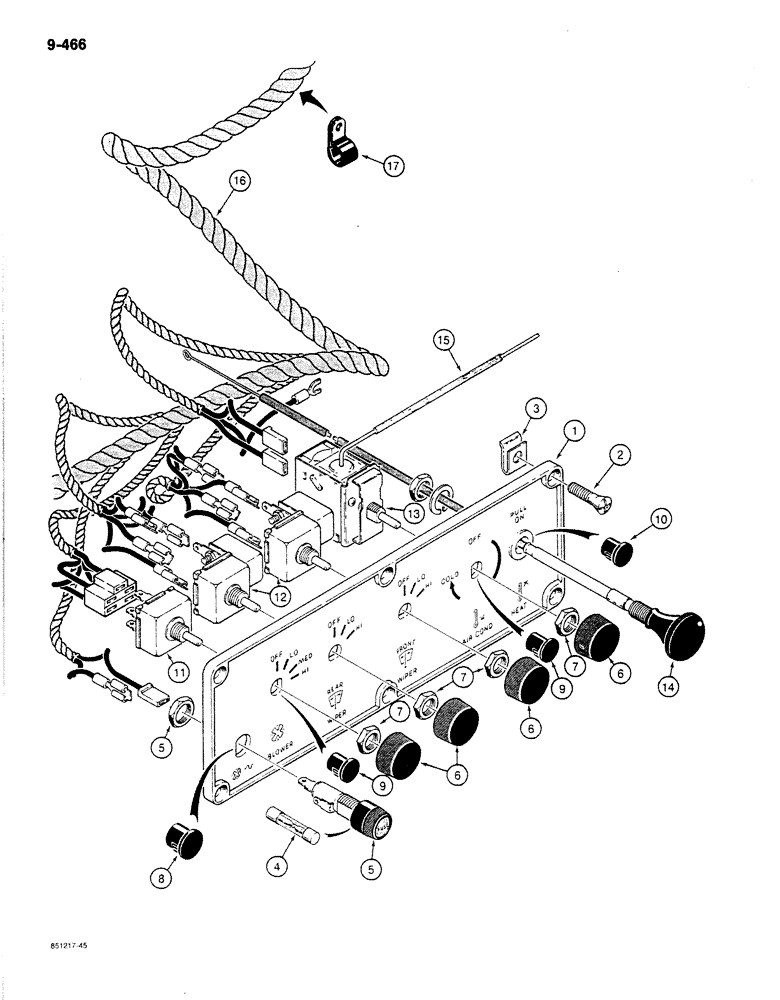

Запчасти Case 780C (9-466) - CAB CONTROL PANEL AND WIRING, USED ON MODELS WITH 24 VOLT ELEC. CIRCUIT (09) - CHASSIS/ATTACHMENTS

1

F44727

PANEL ASSY.

control

1шт.

2

187-1084

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

oval Phillips head, No. 10-16 NC x 3/4", plated

6шт.

3

131-861

SPRING NUT,Tinn, U, #10-24

6шт.

4

223-10

FUSE,10 Amp, Type 3AG

10 amperes, 3AG

1шт.

5

A22874

HOLDER

fuse

1шт.

6

A42578

KNOB

switch, use as required

2-4шт.

7

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

retaining, switch, use as required

2-4шт.

8

353-404

PLUG,Dome, .500" hole, Nylon

If used

1шт.

9

353-403

PLUG,Dome, .437" hole, Nylon

If used

1-3шт.

10

353-402

PLUG,Dome, .375" hole, Nylon

If used

1шт.

11

A42622

SWITCH

blower

1шт.

12

F42841

SWITCH

front and rear windshield wipers

2шт.

13

L73646

SWITCH

air conditioner

1шт.

14

1343934C1

CABLE

heat control (Replaces F44755)

1шт.

15

F44879

TUBE,0.12" ID x 0.17" OD x 20" L

from air conditioner switch

1шт.

16

F45224

HARNESS

cab

1шт.

17

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

cab harness at operators compartment frame, front, for mounting hardware see Figure 9-448, Refs. 2-5

1шт.
