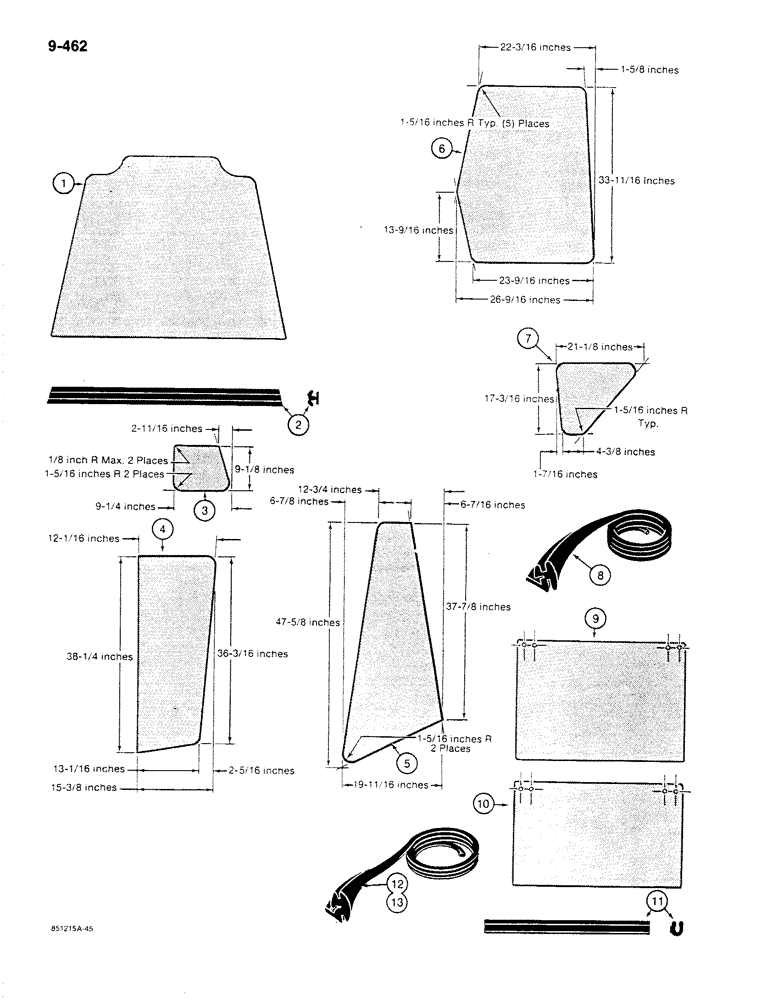

Запчасти Case 780C (9-462) - CAB GLASS - U.S. DIMENSIONS (09) - CHASSIS/ATTACHMENTS

1

F44623

WINDSHIELD

GLASS - upper, use Ref. 12 seal

1шт.

2

F44621

MOLDING

SUPPORT - windshield, bottom of upper windsheild

1шт.

3

REF

INSTRUCTION

GLASS - windshield, lower, use Ref. 12 seal

2шт.

4

REF

INSTRUCTION

GLASS - side, rear, use Ref. 13 seal

2шт.

5

REF

INSTRUCTION

GLASS - panel, next to rear window, use Ref. 13 seal

2шт.

6

REF

INSTRUCTION

GLASS - side, windows, use Ref. 12 seal

2шт.

7

REF

INSTRUCTION

GLASS - side, front lower; left-hand glass uses Ref. 12 seal, right-hand glass uses Ref. 8 seal

2шт.

8

L107709

SEAL ASSY.

SPARE PART used with Ref. 7 glass on the right-hand side, 61" long

1шт.

9

F44629

GLASS

rear window, upper

1шт.

10

F44630

GLASS

rear window, lower

1шт.

11

F44710

SEAL

SUPPORT - lower rear window, attaches to top of glass

1шт.

12

A42677

MOLDING

SEAL - used around all glass except right-hand Ref. 7 and Refs. 4, 5, 9, and 10, bulk roll, 50 ft long

1шт.

13

F43628

MOLDING

SEAL - used around rear side glass, Refs. 4 and 5, bulk roll, 100 ft long

1шт.
