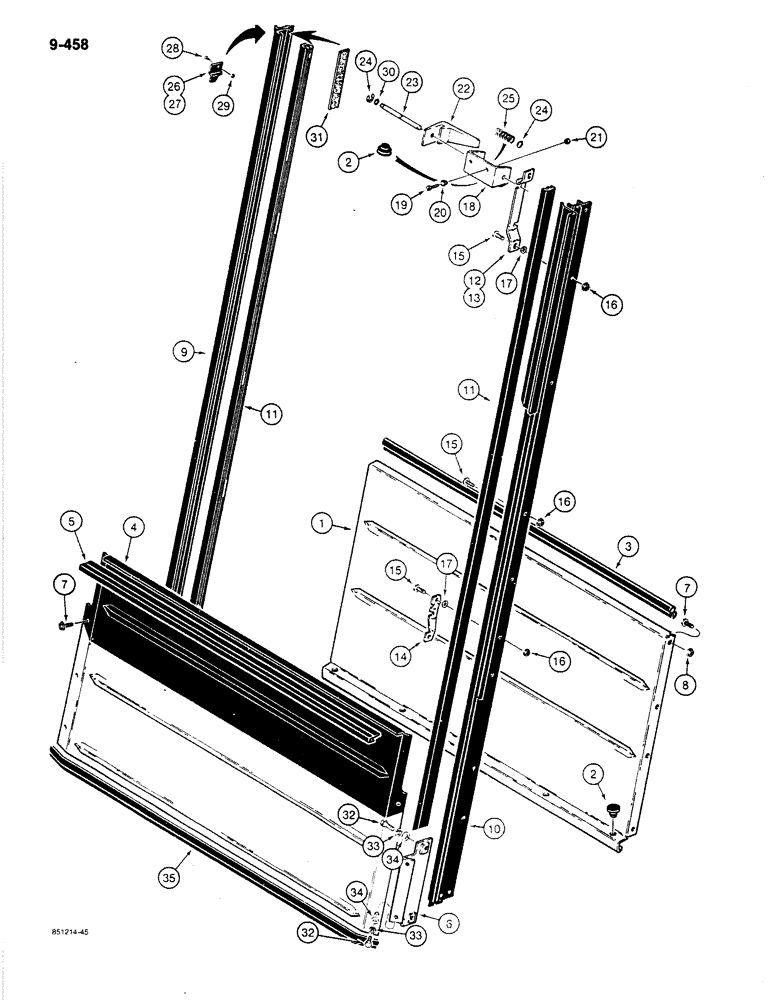

Запчасти Case 780C (9-458) - CAB REAR WINDOW (09) - CHASSIS/ATTACHMENTS

1

F42920

PANEL ASSY.

rear window, inner

1шт.

2

L60224

BUMPER

rubber, rear window

7шт.

3

F42780

SEAL

inner panel, rear window, 32-1/8" (816 mm) long, cut from F43086 bulk, see below

1шт.

4

F96709

PANEL

rear window, outer, includes decals

1шт.

5

F44711

SEAL

outer panel, rear window

1шт.

6

F96836

BRACKET

support, outer panel

2шт.

7

121-135

FLANGE BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

6шт.

8

131-937

FLANGE NUT,Flg, 5/16"-18

Special

4шт.

9

F96749

BRACKET

mounting, left-hand

1шт.

10

F96748

BRACKET

mounting, right-hand

1шт.

11

F44692

CHANNEL

rear windows

2шт.

12

F44830

BRACKET

window retaining, top, right-hand

1шт.

13

F44831

BRACKET

window reatining, top, left-hand

1шт.

14

F44702

BRACKET

window retaining, lower

2шт.

15

121-134

FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

14шт.

16

131-1351

FLANGE NUT,Flg, 1/4"-20

14шт.

17

195-518

WASHER,1/4", SAE

Used as a shim, if used

1шт.

18

F45111

LATCH

BRACKET - lift, window

4шт.

19

179-155

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

machine, ovel Phillips head, No. 10-24 NC x 3/4", plated

8шт.

20

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

Lift bracket mounting

8шт.

21

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

8шт.

22

F45110

LEVER

window lift

4шт.

23

F44699

PIN

winlow latch

4шт.

24

F45340

SNAP RING,#31, Ext, E-Type

#31, Ext, E-Type

8шт.

25

F62245

SPRING

window release

4шт.

26

F45084

RETAINER

window, up position, left-hand

1шт.

27

F45083

RETAINER

window, up position, right-hand

1шт.

28

121-134

FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

29

131-1351

FLANGE NUT,Flg, 1/4"-20

2шт.

31

NSS

NOT SOLD SEPARAT

STRIP - foam, behind window channel

2шт.

32

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

If used

8шт.

33

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

If used

8шт.

34

195-103

WASHER,5/16"

If used

8шт.

34a

121-135

FLANGE BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

Replaces Refs. 32, 33, and 34 on some models, not shown

8шт.

35

REF

INSTRUCTION

SEAL - base of rear window frame to floor plate, 33" (838 mm) long, cut from L107724 seal, see below

1шт.

For rear window glass, see Figure 9-462 or 9-464.

1шт.

F43086

SEAL

bulk roll, 100 ft (3048 cm)

1шт.

For rear window glass, see Figure 9-462 or 9-464.

1шт.

L107724

SEAL

strip, 48-1/2" (1232 mm) long

1шт.

For rear window glass, see Figure 9-462 or 9-464.

1шт.

30

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Window latch pin, if used

4шт.
