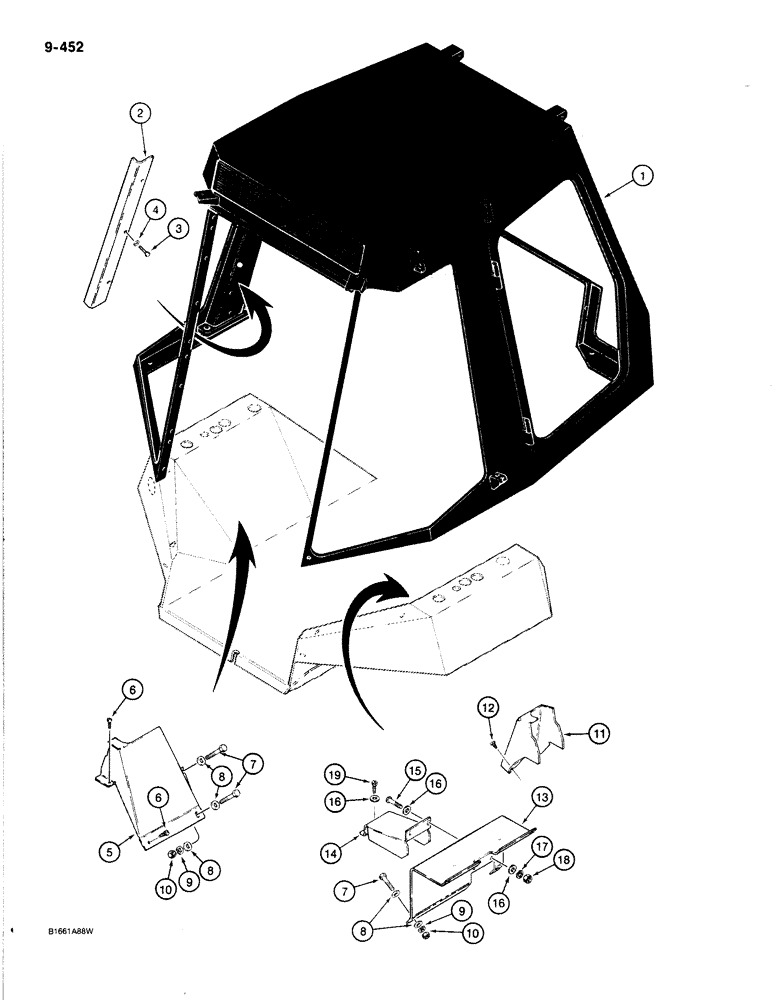

Запчасти Case 780C (9-452) - HEATING AND AIR CONDITIONING LINE COVERS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

FRAME - cab

1шт.

2

F44766

COVER

heating and air conditioning lines, upper

2шт.

3

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

4

195-518

WASHER,1/4", SAE

6шт.

5

L111759

COVER ASSY

left-hand fender

1шт.

6

187-814

SELF-TAP SCREW,Slotted Pan Hd, #6 x 3/8"

pan head, self-tapping, No. 6-20 NC x 3/8"

2шт.

7

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

8

95-6

WASHER,3/8"

12шт.

9

92-6

LOCK WASHER,3/8"

6шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

6шт.

11

L106509

COVER ASSY

air conditioning tubes, right-hand fender, upper

1шт.

12

187-811

SCREW,Slotted Pan Hd, #6 x 5/16"

pan head, self-tapping, No. 6-20 NC x 3/16"

4шт.

13

L104403

COVER ASSY

SPARE PART PLATE - tool box mounting

4шт.

14

L104388

COVER ASSY

SPARE PART air conditioning tubes, right-hand fender, lower

1шт.

15

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

16

195-102

WASHER,1/4"

flat, plated

5шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

18

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

19

448447

SCREW,Hex Hd, 1/4" x 5/8"

hex head, self-tapping, 1/4" - 20 NC x 5/8", plated

1шт.
