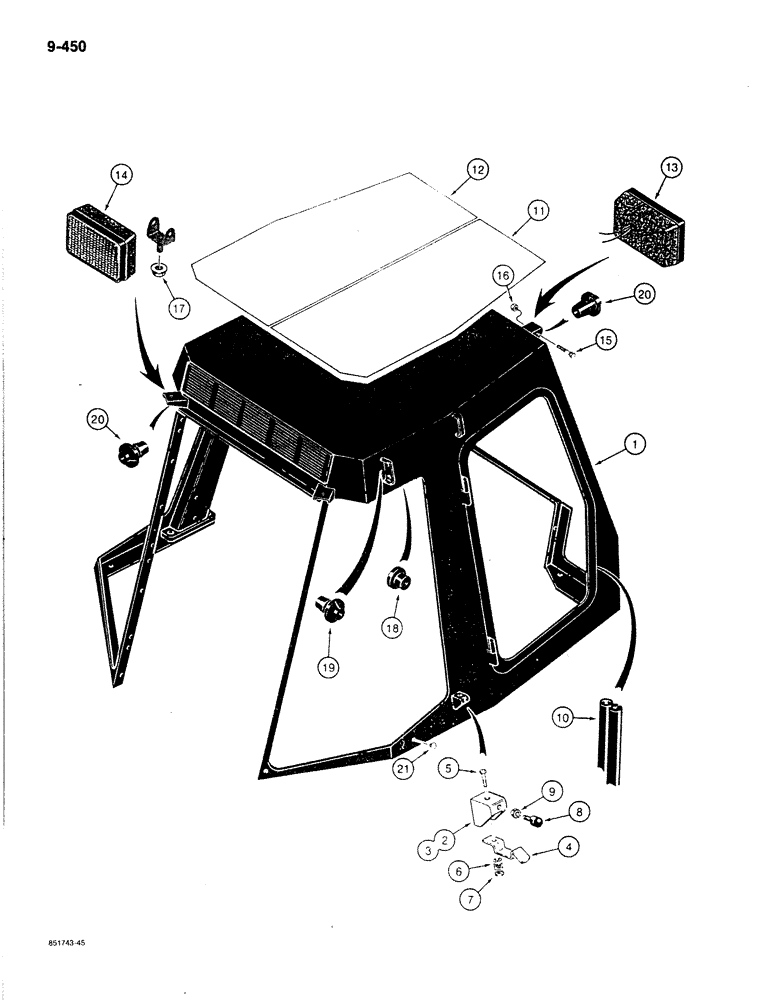

Запчасти Case 780C (9-450) - CAB FRAME AND LAMPS (09) - CHASSIS/ATTACHMENTS

1

R100082

FRAME ASSY

cab (Replaces NSS), Includes: Ref. 2and 3

1шт.

2

F97010

BRACKET

window latch, right-hand

1шт.

3

F97011

BRACKET

window latch, left-hand

1шт.

4

F42772

LATCH

window

2шт.

5

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

6

D36669

SPRING

bracket

2шт.

7

131-1180

LOCK NUT,1/4"-20, GA

2шт.

8

F44935

BUMPER

window

2шт.

9

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

10

REF

INSTRUCTION

SEAL - right-hand window frame, cut to length from F43086, see below

1шт.

For additional lamps and lamp wiring see Figures 4-116 and 4-118; for cab wiring harness see Figures 9-466 and 9-468.

1шт.

11

F44914

DECAL

COVER - white vinyl, top of roof, heat deflection, used on models with air conditioning, right-hand

1шт.

12

F44915

DECAL

COVER - white vinyl, top of roof, heat deflection, used on models with air conditioning, left-hand

1шт.

13

REF

INSTRUCTION

LAMP ASSEMBLY - front, used without hinge bracket, parts list Figure 4-120

2шт.

14

REF

INSTRUCTION

LAMP ASSEMBLY - rear, uses hinge bracket, parts list Figure 4-120

2шт.

15

113-165

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 2

hex head, 5/16" - 18 NC x 2-1/2", plated

2шт.

16

131-205

LOCK NUT,5/16"-18

hex, self-locking, 5/16" - 18 NC, plated

2шт.

17

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

Special locking

2шт.

18

353-704

GROMMET

3/4" (19 mm) hole size, for side lamp wires, inner cab frame

2шт.

19

F45451

PLUG

GROMMET - molded, split, 3/4" (19 mm) hole size, service replacement for grommet on side lamp harness, press into outer cab frame

2шт.

20

R52617

PLUG

GROMMET - molded, split, 3/8" (9.5 mm) hole size, front and rear lamp harness, press into outer cab frame

4шт.

21

353-402

PLUG,Dome, .375" hole, Nylon

(10 mm), Frame

2шт.

F43086

SEAL

bulk, 100 ft (3048 cm) long

1шт.

For additional lamps and lamp wiring see Figures 4-116 and 4-118; for cab wiring harness see Figures 9-466 and 9-468.

1шт.
