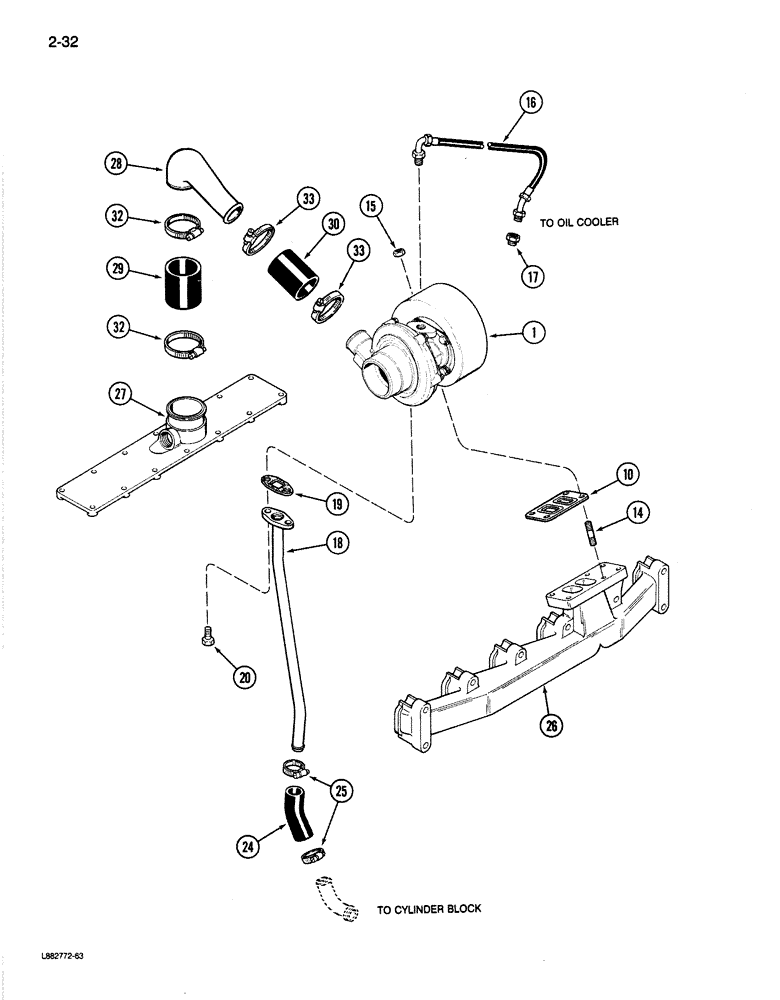

Запчасти Case 780C (2-32) - TURBOCHARGER SYSTEM, 6T-590 ENGINE (02) - ENGINE

1

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine, See Figure 2-34

1шт.

10

J901356

GASKET,0.5mm Thk

, Serial Range: turbocharger-manifold

1шт.

14

J905417

STUD

STUD - turbocharger mounting, M10 x 40 mm

4шт.

15

J901961

NUT

hex, turbocharger mounting

4шт.

16

J909548

HOSE

ASSEMBLY - oil supply, turbocharger

1шт.

17

A77457

FITTING

CONNECTOR female hex, drain tube to filter hose

1шт.

18

J905354

TUBE

oil drain

1шт.

19

J914388

GASKET

oil drain tube (Replaces J901805)

1шт.

20

J900630

BOLT,Hex Flg, M8 x 20, 8.8, Full Thd

hex, M8 x 1.25 x 20 mm

2шт.

24

J903745

LARGE HOSE

HOSE,LARGE turbocharger oil drain

1шт.

25

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

Turbocharger drain hose

2шт.

26

REF

INSTRUCTION

MANIFOLD - exhaust, See Figure 2-30

1шт.

27

REF

INSTRUCTION

COVER - intake manifold, See Figure 2-30

1шт.

28

J906973

AIR INTAKE TUBE,42 - 54.7 mm ID x 50.8 - 63.5 mm OD

air intake

1шт.

29

J904422

HOSE

intake tube

1шт.

30

J901804

INTAKE AIR HOSE

air intake

1шт.

32

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

hose retaining

2шт.

33

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.
