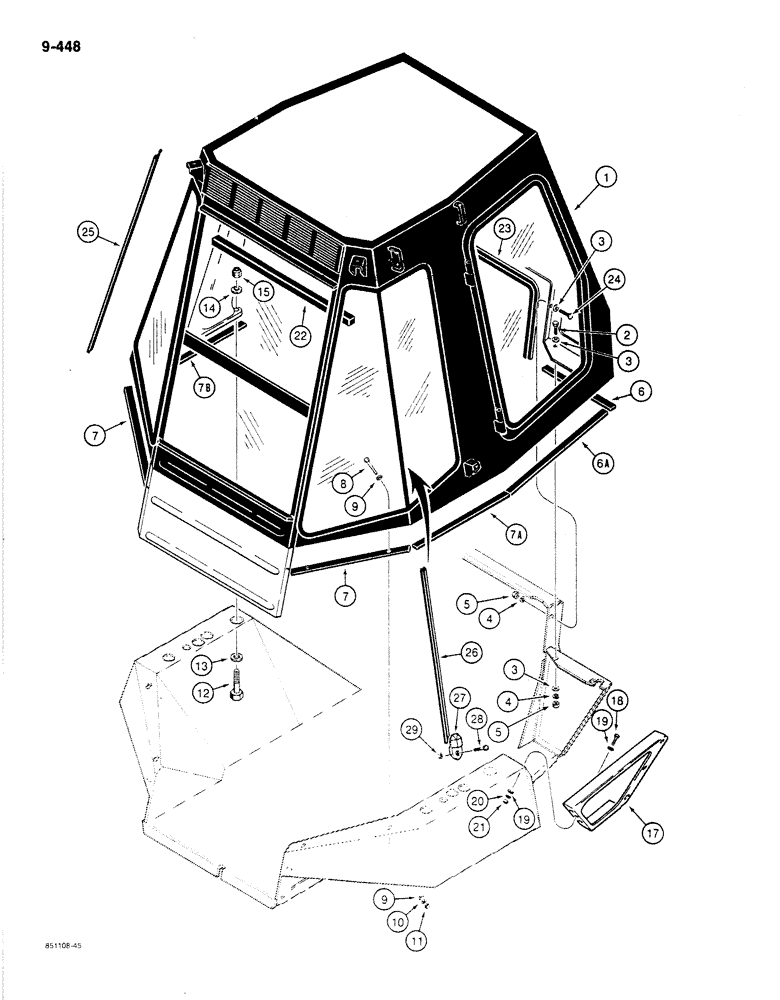

Запчасти Case 780C (9-448) - ROPS CAB AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CAB ASSEMBLY - ROPS, machinery item, order from the Machinery Price List

1шт.

2

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

For cab harness clamp, see Figure 9-466, Ref. 17

4шт.

3

195-104

WASHER,3/8"

flat, , plated 3/8"

10шт.

4

192-21

LOCK WASHER,3/8"

6шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

6шт.

6

L109502

STRIP

front, sponge rubber

2шт.

6a

L109504

STRIP

foam

1шт.

7

D90935

SEALING STRIP

SEAL - rubber, rear of cab frame

2шт.

7a

L109501

STRIP

sponge rubber

1шт.

7b

L109503

STRIP

sponge rubber

1шт.

8

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

9

195-104

WASHER,3/8"

flat, , plated 3/8"

8шт.

10

192-21

LOCK WASHER,3/8"

4шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

4шт.

12

28-1664

BOLT,Hex, 1" - 14 x 4", Gr 8

hex head, 1" - 14 NS x 4", grade 8

4шт.

13

196-43

WASHER,1 1/32" x 1 11/16" x .259", HDN

flat, hardened, plated

4шт.

14

D139615

WASHER

special, plated

4шт.

15

131-1253

LOCK NUT,1"-14, GC

4шт.

17

D86437

PANEL ASSY.

closure, right-hand

1шт.

18

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

9шт.

19

195-104

WASHER,3/8"

flat, , plated 3/8"

18шт.

20

192-21

LOCK WASHER,3/8"

9шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

9шт.

22

F44812

SEAL

rear window frame, upper

1шт.

23

L107724

SEAL

cowl, 48-1/2" (1232 mm) long

1шт.

24

111-319

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

2шт.

25

F44667

RUBBER

SUPPORT - glass, rear, left-hand

1шт.

26

F44668

SEAL

SUPPORT - glass, rear, right-hand

1шт.

27

F45183

BRACKET

RETAINER - glass

4шт.

28

111-2

CARRIAGE BOLT,Short NK, 3/16"-24 x 3/4", G2

4шт.

29

86625057

NUT,#10-24, GB

4шт.

A cab frame weldment is available thru parts (part nbr R100082). This is a frame only and all other cab parts must be ordered separately.

1шт.
