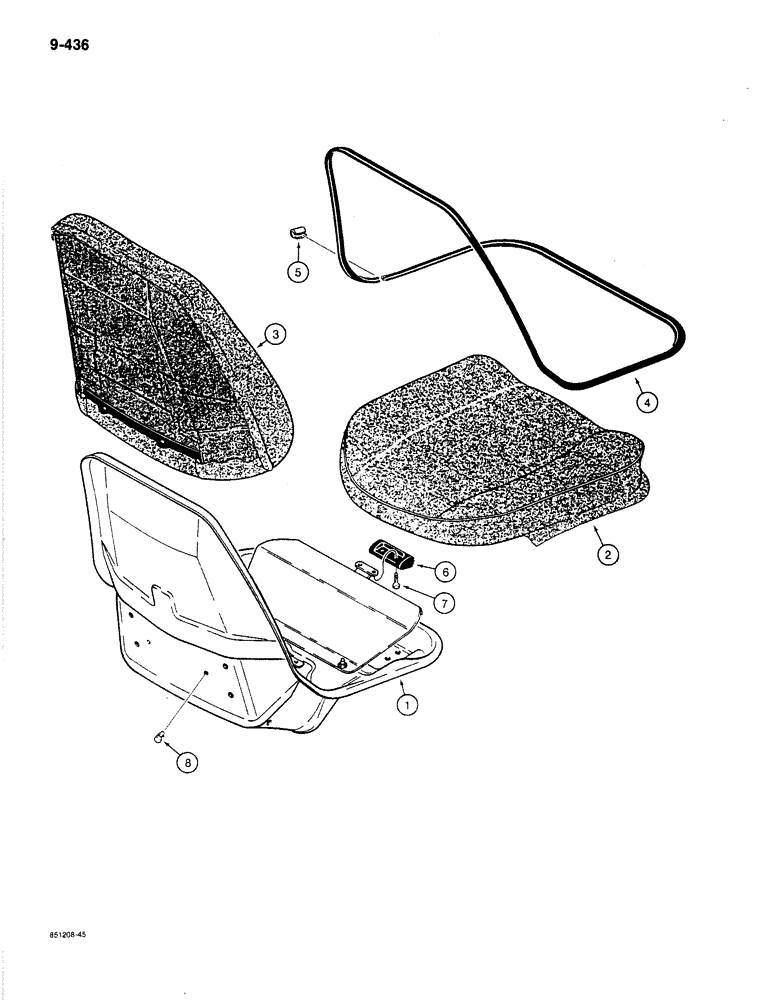

Запчасти Case 780C (9-436) - SEAT ASSEMBLY, D127367 SUSPENSION SEAT ASSEMBLY (09) - CHASSIS/ATTACHMENTS

D127367

SEAT

cushion, for seat support see Figure 9-442, for seat adjuster assembly, see Figure 9-446, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL - seat

2шт.

2

N9258

CUSHION ASSY.

seat, includes N7802 clip kit, see below

1шт.

3

N9259

BACKREST

seat, includes N7802 clip kit, see below

1шт.

4

N14614

GASKET

RETAINER - strip, brown, Serial Range: cushion-shell

1шт.

5

NSS

NOT SOLD SEPARAT

CLIP - retainer, order N7802 clip kit, see below

1шт.

See Figure 9-434 for standard seat.

1шт.

6

N9239

HANDLE

SPARE PART cushion adjustment

1шт.

7

182-591

SCREW,Cross Pan Hd, 1/4"-20 x 7/8"

machine, pan Phillips head, 1/4" - 20 NC x 7/8", plated

2шт.

8

NSS

NOT SOLD SEPARAT

RIVET - plastic

2шт.

345-44

ADHESIVE

pad retaining, in a can, 23 fl ounces (680 ml), not shown

1шт.

N7802

CLIP

KIT - clip, includes Ref. 5 clip above plus 6 additional narrow clips

1шт.

See Figure 9-434 for standard seat.

1шт.
