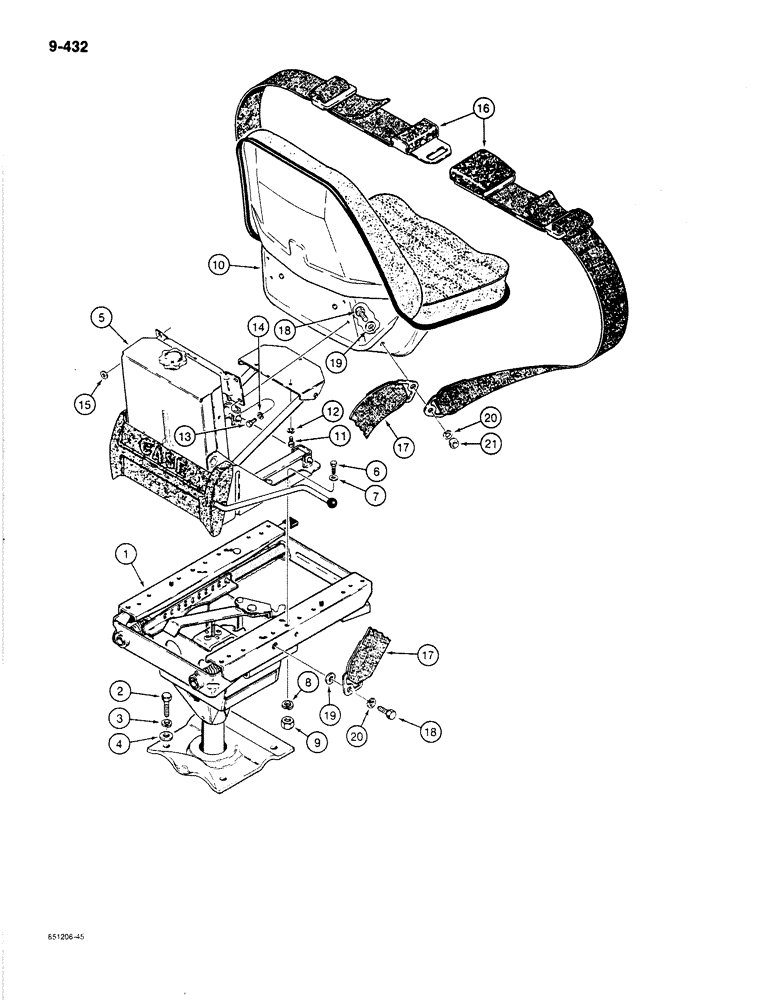

Запчасти Case 780C (9-432) - SUSPENSION SEAT AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

D127369

SUPPORT

suspension seat, parts list Figure 9-442

1шт.

2

113-2441

BOLT,Hex, 1/2" - 13 x 2", Gr 8

4шт.

3

192-23

LOCK WASHER,1/2"

4шт.

4

195-106

WASHER,1/2"

flat, plated

4шт.

5

D127368

ADJUSTER

ASSEMBLY - suspension seat, parts list Figure 9-446

1шт.

6

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

7

495-21038

WASHER,5/16"

4шт.

8

492-11031

LOCK WASHER,5/16"

If used

4шт.

9

425-105

NUT,5/16"-18, G5

If used

4шт.

10

D127367

SEAT

ASSEMBLY - suspension, vinyl, parts list Figure 9-436

1шт.

11

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

hex head, 5/16" - 18 NC x 1/2", plated

3шт.

12

492-11031

LOCK WASHER,5/16"

3шт.

13

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

hex head, 5/16" - 18 NC x 1/2", plated

4шт.

14

492-11031

LOCK WASHER,5/16"

4шт.

15

495-21038

WASHER,5/16"

LH side only

2шт.

16

D85816

SAFETY BELT

seat, 3" (76 mm) wide

1шт.

17

D127382

SAFETY BELT

Support to seat, 9-3/8" (238 mm) long

2шт.

18

114-301

BOLT,Hex, 7/16" - 20 x 1", Gr 5, Full Thd

4шт.

19

495-21050

WASHER,7/16"

Flat

4шт.

20

492-11044

LOCK WASHER,7/16"

4шт.

21

425-117

NUT,7/16"-20, G5

2шт.
