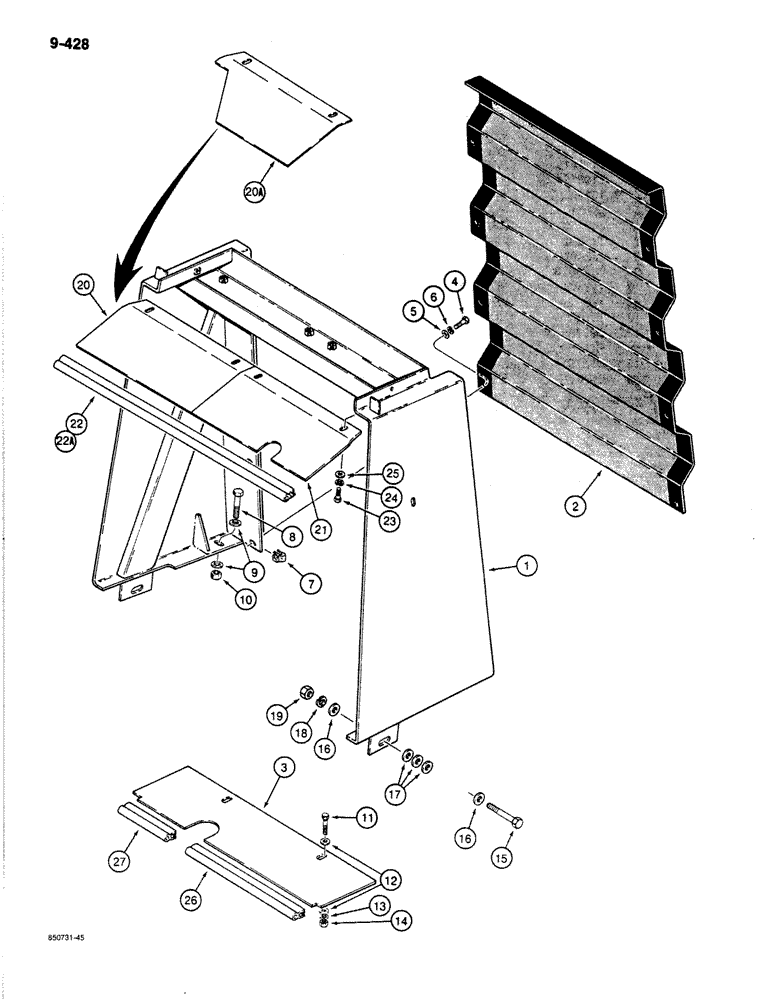

Запчасти Case 780C (9-428) - RADIATOR GUARD AND GRILLE (09) - CHASSIS/ATTACHMENTS

1

L110837

GUARD ASSY.

radiator

1шт.

2

L102717

GRILLE ASSY

radiator guard

1шт.

3

D128683

BAFFLE

SPARE PART lower

1шт.

4

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

5

195-104

WASHER,3/8"

flat, , plated 3/8"

8шт.

6

192-21

LOCK WASHER,3/8"

8шт.

7

131-851

SPRING NUT,Ret, J, 3/8"-16

8шт.

8

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

2шт.

9

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

5/8", hardened

4шт.

10

129-107

NUT,5/8"-11, G5

2шт.

11

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

12

195-104

WASHER,3/8"

flat, , plated 3/8"

4шт.

13

192-21

LOCK WASHER,3/8"

2шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

2шт.

15

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

16

195-108

WASHER,5/8"

flat, , plated 5/8"

4шт.

17

195-108

WASHER,5/8"

flat, , plated 5/8"

1шт.

18

192-25

LOCK WASHER,5/8"

If used

2шт.

19

129-107

NUT,5/8"-11, G5

2шт.

20

D129410

BAFFLE

upper, left-hand, used on models without air conditioning

1шт.

20a

D129409

BAFFLE

upper, left-hand, used on models with air conditioning

1шт.

21

D128682

BAFFLE

upper, right-hand

1шт.

22

D128750

SEAL ASSY.

25" (635 mm) long, upper baffles, used on models without air conditioning, may replace 3-piece seal used in production on some models

1шт.

22a

L79437

SEAL

8" (203 mm) long, upper baffles, cut to required length from F43117 bulk seal, see below, used on models with air conditioning

1шт.

23

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

24

192-21

LOCK WASHER,3/8"

4шт.

25

195-104

WASHER,3/8"

flat, , plated 3/8"

4шт.

26

D129412

SEAL

11" (279 mm) long, right-hand, cut to required length from D128750 seal, see below

1шт.

27

D129411

SEAL

7-5/16" (185 mm) long, left-hand, cut to required length from D128750 seal, see below

1шт.

F43117

SEAL

100 ft (3048 cm) long, bulk

1шт.

D128750

SEAL ASSY.

25" (635 mm) long, bulk

1шт.
