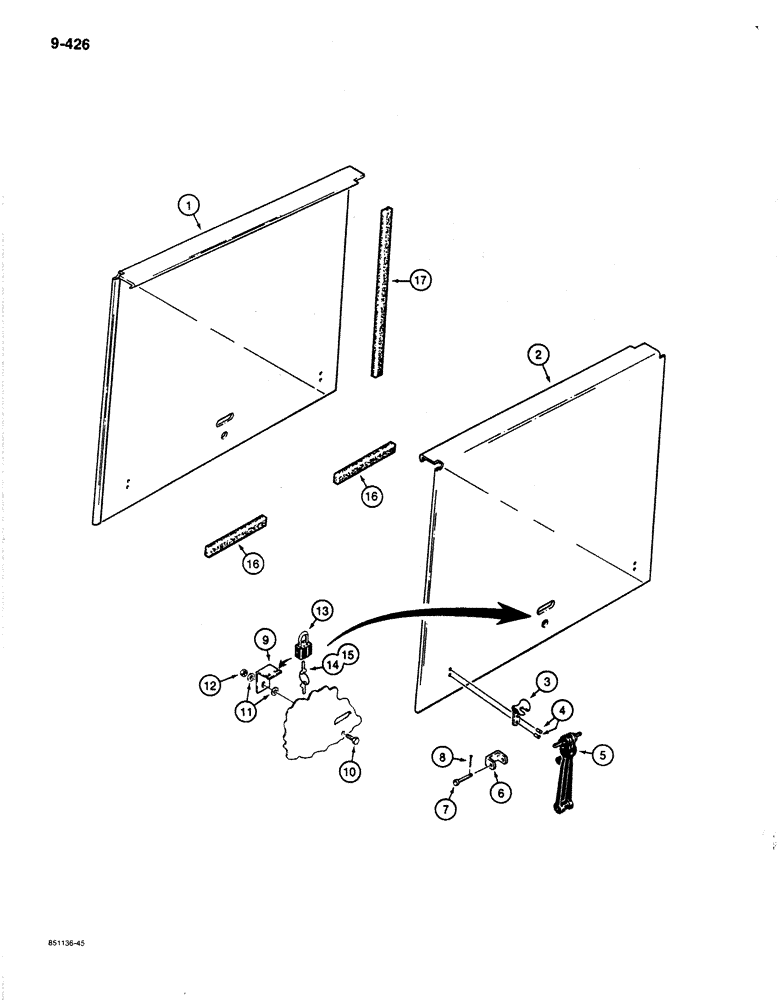

Запчасти Case 780C (9-426) - ENGINE SIDE PANELS (09) - CHASSIS/ATTACHMENTS

1

L108263

PANEL ASSY.

SPARE PART side, engine, left-hand

1шт.

2

L111418

PANEL ASSY.

side, engine, right-hand

1шт.

3

L105124

LATCH HOOK

side panel lock

4шт.

4

151-539

RIVET,Pop, 3/16" x .450"

pop, 3/16"

8шт.

5

L105100

HOOK

side panel

4шт.

6

L47159

BRACKET

anchor, Serial Range: welded-chassis

4шт.

7

T11232

PIN

hook fastener

4шт.

8

132-333

COTTER PIN,1/8" x 5/8"

4шт.

9

D134608

BRACKET

engine side panel, anti-vandalism, if used

2шт.

10

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

11

195-104

WASHER,3/8"

flat, , plated 3/8"

4шт.

12

131-52

NUT,3/8"-16, GC

hex, self-locking, 3/8" - 16 NC, plated

2шт.

13

D93753

PADLOCK

includes keys, Includes: Ref. 14 and 15

2шт.

14

R29555

KEY

for Master padlock only

2шт.

15

D93751

SET OF 2 KEYS

for Yale padlock only

2шт.

16

L100110

FOAM

SPARE PART STRIP - 1" (25 mm) x 3/8" (10 mm) x 10" (254 mm) long, cut from L73272 bulk strip, see below

4шт.

17

L105861

FOAM

SPARE PART STRIP - 1" (25 mm) x 3/8" (10 mm) x 29" (737 mm) long, cut from L104821 bulk strip, see below

2шт.

L73272

STRIP

bulk, 1" (25 mm) x 3/8" (10 mm) x 90" (2286 mm) long

1шт.

L104821

STRIP

SPARE PART bulk, 1" (25 mm) x 3/8" (10 mm) x 115" (2921 mm) long

1шт.
