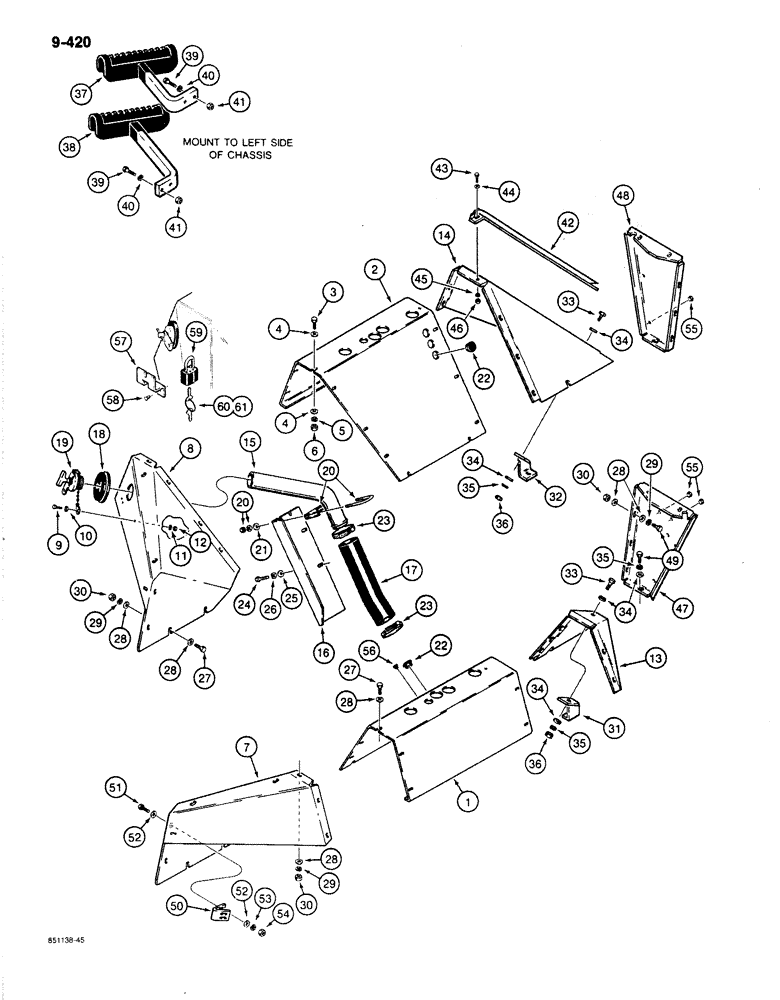

Запчасти Case 780C (9-420) - FENDERS AND STEPS (09) - CHASSIS/ATTACHMENTS

1

L108234

FENDER

rear, right-hand

1шт.

2

L108235

FENDER

rear, left-hand

1шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

14шт.

4

195-104

WASHER,3/8"

flat, , plated 3/8"

28шт.

5

192-21

LOCK WASHER,3/8"

14шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

14шт.

7

L108040

SHIELD

fender, right-hand, rear

1шт.

8

L108041

SHIELD

fender, left-hand, rear

1шт.

9

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

10

195-102

WASHER,1/4"

flat, plated

1шт.

11

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

1шт.

12

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.

13

L108038

SHIELD

SPARE PART fender, right-hand, front

1шт.

14

109273

SHIELD - fender, left-hand, front

1шт.

15

L103294

FUEL TUBE,2.5" OD x 17.2, 5.65" L

fuel filler

1шт.

16

L108265

COVER ASSY

fuel filler hose

1шт.

17

S86222

FUEL HOSE

tank to filler neck

1шт.

18

L101489

GROMMET

filler neck

1шт.

19

L108279

PLUG

CAP - filler, with chain fastener

1шт.

20

A13240

CLAMP,2-5/8" ID

support, includes (2) 92-5 lock washers and (2) 25-105 nuts

1шт.

21

195-103

WASHER,5/16"

2шт.

22

353-422

PLUG,Dome, 1.250" hole, Nylon

Used on models without heater or air-conditioning

4шт.

23

214-177

CLIP

CLAMP - hose

2шт.

24

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

25

195-106

WASHER,1/2"

flat, plated

2шт.

26

192-23

LOCK WASHER,1/2"

2шт.

27

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

22шт.

28

195-104

WASHER,3/8"

flat, , plated 3/8"

57шт.

29

192-21

LOCK WASHER,3/8"

30шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

28шт.

31

L103836

SUPPORT ASSY.

front shield, right-hand

1шт.

32

L103837

SUPPORT ASSY.

front shield, left-hand

1шт.

33

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

34

195-104

WASHER,3/8"

flat, , plated 3/8"

10шт.

35

192-21

LOCK WASHER,3/8"

6шт.

36

129-103

NUT,Hex, 3/8" - 16, Gr 5

4шт.

37

L102993

STEP

SPARE PART upper

1шт.

38

L102994

STEP

lower

1шт.

39

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

40

192-23

LOCK WASHER,1/2"

4шт.

41

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

42

L108090

STRIP

door frame, cab models

1шт.

43

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Cab models

4шт.

44

195-103

WASHER,5/16"

Cab models

4шт.

45

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

Cab models

4шт.

46

9635082

NUT,5/16" - 18, Gr 5

Cab models

4шт.

47

L102823

PANEL ASSY.

right-hand, front, cab models

1шт.

48

L109474

PANEL ASSY.

left-hand, front, cab models

1шт.

49

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

50

L104868

BRACKET

shield anchor, canopy models

2шт.

51

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

52

195-104

WASHER,3/8"

flat, , plated 3/8"

8шт.

53

192-21

LOCK WASHER,3/8"

4шт.

54

129-103

NUT,Hex, 3/8" - 16, Gr 5

4шт.

55

353-402

PLUG,Dome, .375" hole, Nylon

(10 mm), Used on models without cold start system and without air-conditioning

6шт.

56

353-403

PLUG,Dome, .437" hole, Nylon

1шт.

57

L105960

BRACKET

SPARE PART fuel filler cap lock, anti-vandalism, if used

1шт.

58

151-538

RIVET,Pop, 3/16" x .575"

pop, 3/16", filler cap bracket

2шт.

59

D93753

PADLOCK

includes keys, Includes: Ref. 60 and 61

1шт.

60

R29555

KEY

for Master padlock only

2шт.

61

D93751

SET OF 2 KEYS

for Yale padlock only

2шт.
