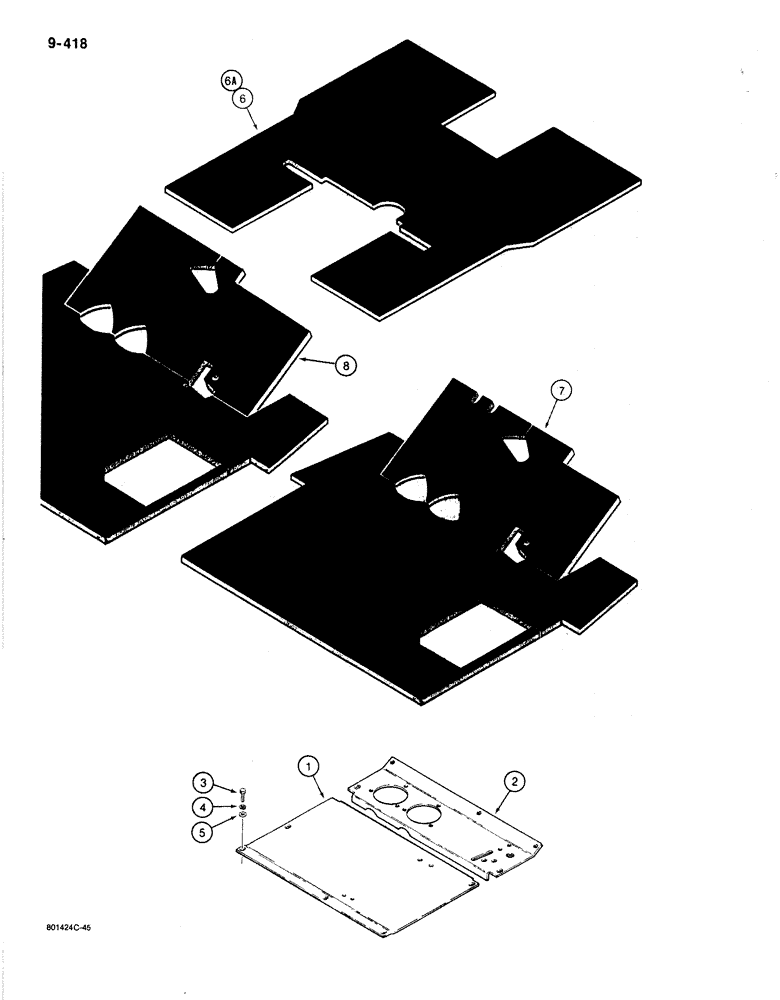

Запчасти Case 780C (9-418) - FLOOR PLATES AND MATS (09) - CHASSIS/ATTACHMENTS

1

L102587

PLATE ASSY.

floor, main, removable

1шт.

2

L102588

PLATE ASSY.

SPARE PART floor, small

1шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

7шт.

4

192-21

LOCK WASHER,3/8"

7шт.

5

195-104

WASHER,3/8"

flat, , plated 3/8"

7шт.

6

L108259

MAT

FLOORMAT - rear, black, if used

1шт.

6a

D140604

FLOOR MAT

rear, brown, if used

1шт.

7

L108258

MAT

FLOORMAT - front, used on models with 24 volt electrical circuit

1шт.

8

D139218

FLOOR MAT

front, used on models with 12 volt electrical circuit

1шт.
