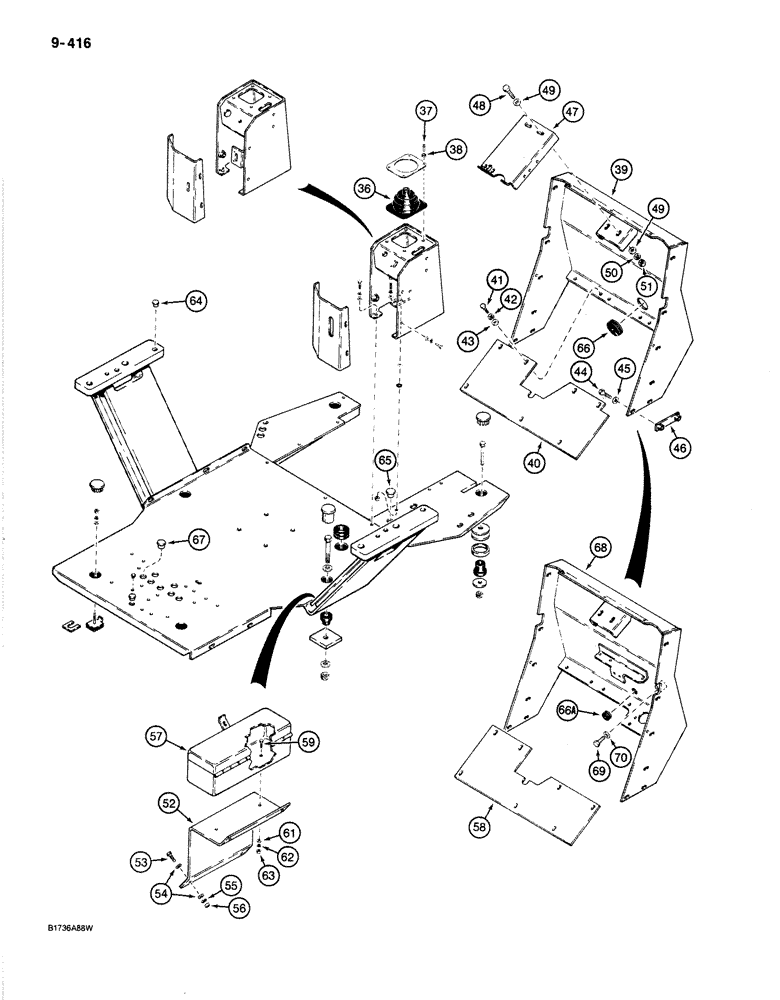

Запчасти Case 780C (9-416) - OPERATORS COMPARTMENT FRAME AND MOUNTING (09) - CHASSIS/ATTACHMENTS

36

L105188

INSULATOR BLOCK

RUBBER BLOCK BOOT - loader console

1шт.

37

187-1421

SELF-TAP SCREW,Slotted Oval Hd, #10 x 3/4"

oval Phillips head, No. 10-24 NC x 3/4"

4шт.

38

F43576

WASHER

special

4шт.

39

L102583

PANEL ASSY.

firewall, used on models with 24 volt electrical circuit

1шт.

40

L102568

PLATE ASSY.

front, removable, used on models with 24 volt electrical circuit

1шт.

41

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

7шт.

42

192-21

LOCK WASHER,3/8"

7шт.

43

195-104

WASHER,3/8"

flat - , plated 3/8"

7шт.

44

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

45

196-15

WASHER,17/32" x 1 1/6" x .134"

hardened, plated

4шт.

46

L108558

BLOCK

tapped

2шт.

47

L101724

BRACKET

SPARE PART steering column, mounting

1шт.

48

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

49

195-106

WASHER,1/2"

flat, plated

4шт.

50

192-23

LOCK WASHER,1/2"

2шт.

51

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

52

L107762

PLATE ASSY.

tool box mounting, used on models without cab

1шт.

53

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

54

195-104

WASHER,3/8"

flat, , plated 3/8"

4шт.

55

192-21

LOCK WASHER,3/8"

2шт.

56

129-103

NUT,Hex, 3/8" - 16, Gr 5

2шт.

57

D124090

BOX, TOOL

operators

1шт.

58

D137547

PLATE

SPARE PART front, removable, used on models with 12 volt electrical circuit

1шт.

59

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

60

RESERVED

1шт.

61

195-102

WASHER,1/4"

flat, plated

2шт.

62

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

63

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

64

353-412

PLUG,Dome, 1.093" hole, Nylon

nylon, 1-3/32", canopy models only

2шт.

65

353-413

PLUG,Dome, 1.187" hole, Nylon

nylon, 1-3/16", if used

1шт.

66

L53783

GROMMET,1 1/4" ID x 2 3/8" Groove Dia, Str Cut

firewall, front and rear harness, used on models with 24 volt electrical circuit

1шт.

66a

F37765

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

firewall, used on models with 12 volt electrical circuit

1шт.

67

353-413

PLUG,Dome, 1.187" hole, Nylon

1-3/16", models without extendable dipper

1шт.

D138167

ASSEMBLY

PANEL - firewall, used on models with 12 volt electrical circuit, Includes: Ref. 68 - 70

1шт.

68

NSS

NOT SOLD SEPARAT

PANEL - firewall

1шт.

69

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

70

195-104

WASHER,3/8"

flat, , plated 3/8"

1шт.
