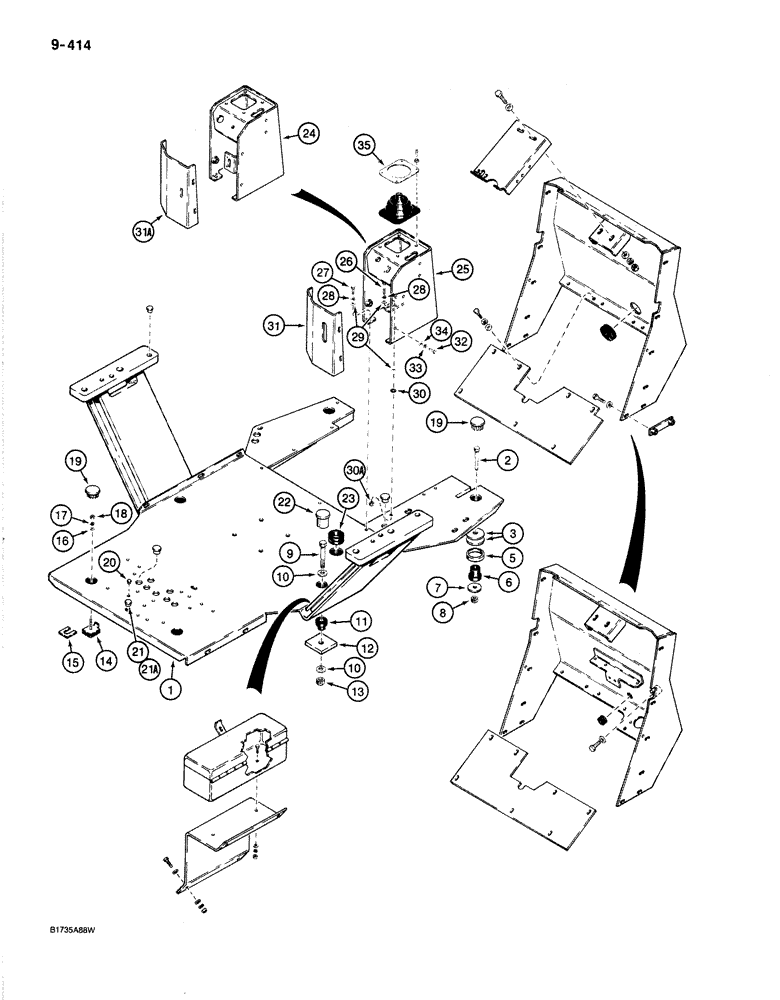

Запчасти Case 780C (9-414) - OPERATORS COMPARTMENT FRAME AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

L108867

FUNNEL

FRAME operators compartment, used on models that have hand throttle with lever release, see Figure 3-64

1шт.

1a

D136589

FRAME ASSY

SPARE PART operators compartment, not shown, used on models that have hand throttle with button release, see Figure 3-66

1шт.

2

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

2шт.

3

196-27

WASHER,21/32" x 3" x .179", HDN

5/8", hardened, plated

4шт.

5

L105792

SPACER

insulator

2шт.

6

A59516

RUBBER MOUNTING,63.5mm OD x 50.8mm L

frame mounting, rubber, front

2шт.

7

CASD35009

WASHER,16.67mm ID x 63.5mm OD

hardened

2шт.

8

131-1105

LOCK NUT,5/8"-11, GB

2шт.

9

28-1276

BOLT,Hex, 3/4" - 16 x 4-3/4", Gr 8

hex head, 3/4" - 16 NC x 4-3/4", grade 8

2шт.

10

496-11078

WASHER

3/4", hardened, plated

4шт.

11

A19066

MOUNTING PARTS

INSULATOR - frame, rubber, rear

2шт.

12

L107405

SPACER

insulator

2шт.

13

131-1251

LOCK NUT,3/4"-16, GC

2шт.

14

L103861

PAD

rear insulator

2шт.

15

L103868

SHIM,.050" Thk

Rear insulator pad

1шт.

16

195-104

WASHER,3/8"

flat, , plated 3/8"

2шт.

17

192-21

LOCK WASHER,3/8"

2шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

2шт.

19

205-67

HOLE PLUG BUTTON,2"

button, , floor 2"

4шт.

20

353-402

PLUG,Dome, .375" hole, Nylon

4шт.

21

353-404

PLUG,Dome, .500" hole, Nylon

If used

1шт.

21a

353-412

PLUG,Dome, 1.093" hole, Nylon

nylon, 1-3/32", if used

1шт.

22

L103917

PLUG

floor, rear

2шт.

23

L107028

GROMMET

SPARE PART floor

1шт.

24

D136585

CONSOLE

loader control lever, used on models that have hand throttle with button release

1шт.

25

L105116

BRACKET

SPARE PART CONSOLE - loader control lever, used on models that have hand throttle with lever release

1шт.

26

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

27

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

28

192-21

LOCK WASHER,3/8"

4шт.

29

195-104

WASHER,3/8"

flat, , plated 3/8"

5шт.

30

193-72

LOCK WASHER

internal-extenal tooth lock, 3/8", plated, if used

1шт.

30a

129-103

NUT,Hex, 3/8" - 16, Gr 5

1шт.

31

L111758

COVER ASSY

loader console, used on models that have hand throttle with lever release

1шт.

31a

D136591

COVER

loader console, used on models that have hand throttle with button release

1шт.

32

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

33

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

4шт.

34

195-102

WASHER,1/4"

flat, plated

4шт.

35

L105377

PLATE ASSY.

boot mounting

1шт.
