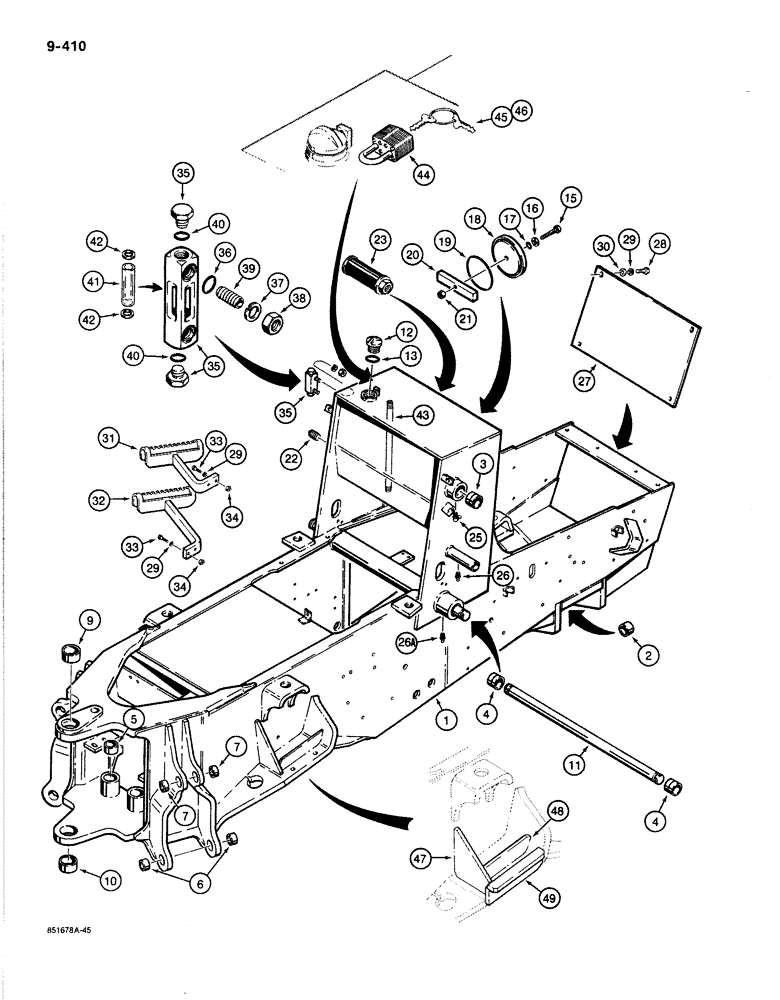

Запчасти Case 780C (9-410) - CHASSIS, STEPS, AND HYDRAULIC OIL LEVEL GAUGE (09) - CHASSIS/ATTACHMENTS

1

D136588

CHASSIS

ASSEMBLY - includes upper frame, used on models with 24 volt electrical cirucit, also includes Refs. 16-29 in Figure 3-60, Includes: Ref. 2 - 22

1шт.

1a

D138640

CHASSIS

SPARE PART ASSEMBLY - includes upper frame, not shown, used on models with 12 volt electrical circuit, also includes Refs. 16-29 in Figure 3-60

1шт.

2

L11494

BUSHING

front axle pivot

2шт.

3

L105212

BUSHING,57.35mm ID x 69.98mm OD x 46mm L

loader lift frame pivot

2шт.

4

L105212

BUSHING,57.35mm ID x 69.98mm OD x 46mm L

lift cylinder pivot

2шт.

5

D60159

BUSHING,60.55mm ID x 69.85mm OD x 38.1mm L

swing cylinder pivot, lower

2шт.

6

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

stabilizer, Serial Range: leg-frame

4шт.

7

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

stabilizer, Serial Range: cylinder-frame

4шт.

9

L102293

BUSHING

upper, swing tower mounting

1шт.

10

L102294

BUSHING

lower, swing tower mounting

1шт.

11

L101688

SHAFT

lift cylinder mounting

1шт.

12

L100349

PLUG

CAP - filler, hydraulic reservoir

1шт.

13

A7552

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

filler cap

1шт.

15

113-695

BOLT,Hex, 1/2" - 13 x 4", Gr 5

hex head, 1/2" - 13 NC x 4", special thread length

1шт.

16

L78045

WASHER

special

1шт.

17

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

cover

1шт.

18

L77124

COVER ASSY

access, hydraulic filter

1шт.

19

L55410

O-RING,0.275" Thk x 7.22" ID, -442, Cl 5, 75 Duro

cover, hydraulic reservoir

1шт.

20

L50741

BAR

cover retainer

1шт.

21

131-510

LOCK NUT,1/2"-13

1шт.

22

221-677

DRAIN PLUG,Sq Hd, 3/4" NPT

square head, 3/4" NPT, magnetic, reservoir drain

1шт.

23

D128526

FILTER CARTRIDGE

SCREEN - suction

2шт.

23a

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Not shown, located on RH frame to mount ground wires, use on models with D138640 chassis only

2шт.

24

195-104

WASHER,3/8"

flat, , plated, not shown, located on right-hand frame to mount ground wires, use on models with D138640 chassis only 3/8"

2шт.

24a

192-21

LOCK WASHER,3/8"

Not shown, located on RH frame to mount ground wires, use on models with D138640 chassis only

2шт.

25

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

Special short

2шт.

26

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

26a

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

27

D133561

COVER ASSY

front

1шт.

28

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

29

192-23

LOCK WASHER,1/2"

8шт.

30

195-106

WASHER,1/2"

flat, plated

4шт.

31

L102993

STEP

SPARE PART upper

1шт.

32

L102994

STEP

lower

1шт.

33

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

34

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

L79110

GAUGE

ASSEMBLY - hydrualic oil level, Includes: Ref. 35 - 42

1шт.

35

NSS

NOT SOLD SEPARAT

BODY - gauge, includes end plugs

1шт.

36

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

gauge

2шт.

37

92-8

LOCK WASHER,1/2"

2шт.

38

131-402

NUT,PAL, 1/2"-20

hex, special locking, 1/2" - 20 NF

2шт.

39

D75821

STUD

mounting

2шт.

40

N8539

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

end plugs to body

2шт.

41

D75820

TUBE

sight, internal

1шт.

42

D75819

GASKET

internal, sight tube

2шт.

43

221-727

PIPE,Nipple, 1/4" NPT x 18"

1/4" NPT x 18"

1шт.

44

D93753

PADLOCK

includes keys, Includes: Ref. 45 and 46

1шт.

45

R29555

KEY

for Master padlock only

2шт.

46

D93751

SET OF 2 KEYS

for Yale padlock only

2шт.

D102830

KIT

rear axle reinforcement, includes instruction sheet, Includes: Ref. 47 - 50

1шт.

47

NSS

NOT SOLD SEPARAT

GUSSET - rear

2шт.

48

NSS

NOT SOLD SEPARAT

PLATE - reinforcement

2шт.

49

NSS

NOT SOLD SEPARAT

PLATE - axle, right-hand

1шт.

50

NSS

NOT SOLD SEPARAT

PLATE - axle, left-hand, not shown

1шт.
