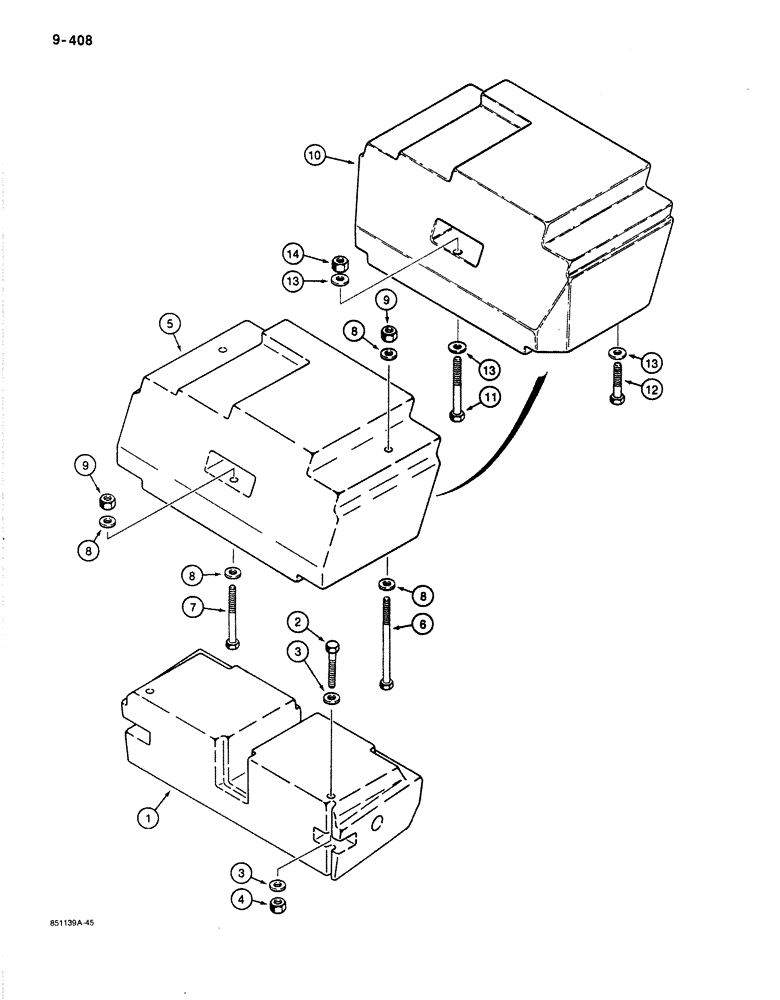

Запчасти Case 780C (9-408) - FRONT COUNTERWEIGHT, STANDARD COUNTERWEIGHT (09) - CHASSIS/ATTACHMENTS

1

L111861

WEIGHT

COUNTERWEIGHT - front, 480 lbs. (217.7 kg)

1шт.

2

113-432

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

4шт.

3

195-533

WASHER,1/2", SAE

8шт.

4

131-70

NUT,1/2"-13, GB

hex, self-locking, 1/2" - 13 NC, plated

4шт.

5

D134371

COUNTER

COUNTERWEIGHT - front, 970 lbs. (439 kg), may be cast or fabricated, no longer available, order Refs. 10 - 14, used on models w/ extendable dipper

1шт.

6

13-8184

BOLT,Hex, 1/2" - 13 x 11-1/2", Gr 5

If used, optional counterweight used on models w/ extendable dipper

2шт.

7

113-448

BOLT,Hex, 1/2" - 13 x 7", Gr 5

If used, optional counterweight used on models w/ extendable dipper

2шт.

8

195-533

WASHER,1/2", SAE

If used, optional counterweight used on models w/ extendable dipper

8шт.

9

131-70

NUT,1/2"-13, GB

hex, self-locking, 1/2" - 13 NC, plated, if used, optional counterweight used on models w/ extendable dipper

4шт.

10

D135773

WEIGHT

COUNTERWEIGHT - front, 970 lbs. (439.9 kg), also order 008-44481 instruction sheet, not used on models with clam bucket, optional used on models w/ extendable dipper

1шт.

11

113-654

BOLT,Hex, 5/8" - 11 x 7", Gr 5

Optional counterweight used on models w/ extendable dipper

2шт.

12

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

Optional counterweight used on models w/ extendable dipper

2шт.

13

195-541

WASHER,5/8", SAE

Optional counterweight used on models w/ extendable dipper

6шт.

14

129-107

NUT,5/8"-11, G5

Optional counterweight used on models w/ extendable dipper

2шт.
