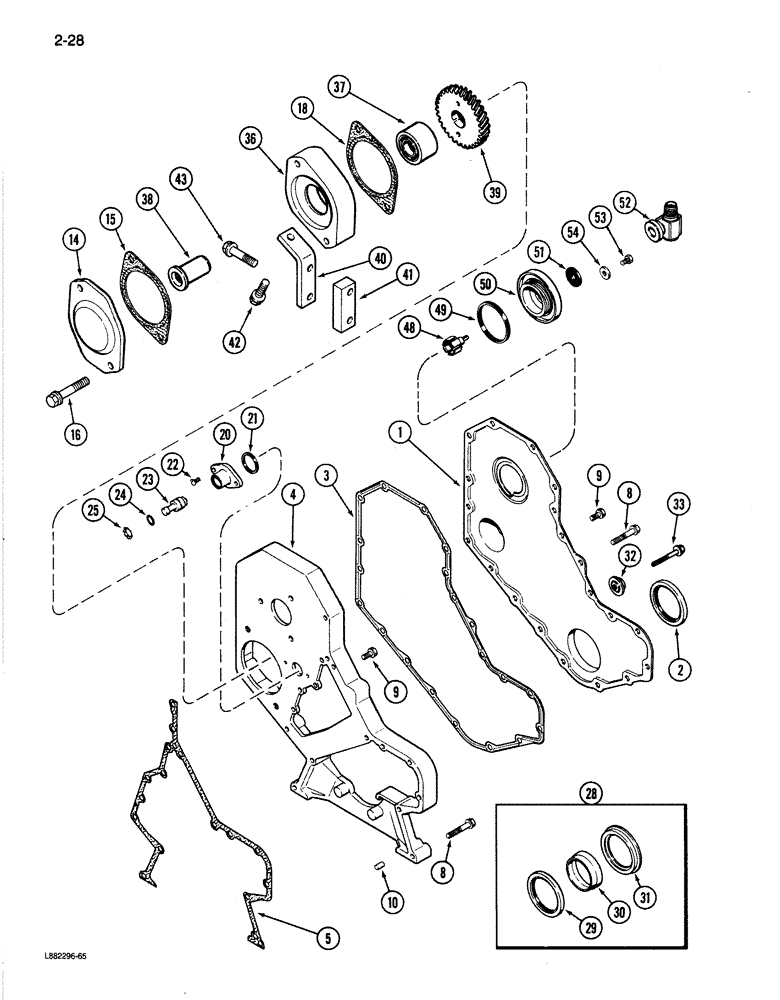

Запчасти Case 780C (2-28) - FRONT GEAR COVER, 6T-590 ENGINE (02) - ENGINE

1

J903794

COVER

gear, front

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - oil, cover (Order Ref 28)

1шт.

3

J914385

GASKET,1.02mm Thk

front cover (Replaces J905143)

1шт.

4

J910411

HOUSING

timing gear (Replaces J905731)

1шт.

5

J914384

GASKET

gear housing (Replaces J907836)

1шт.

8

J900633

BOLT,Hex Flg, M8 x 50mm, Cl 8.8

hex, M8 x 1.25 x 50 mm

10шт.

9

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

16шт.

10

J900257

PIN,10.01mm OD x 16mm L

dowel, locating, 16 mm

2шт.

14

J909918

PLATE

cover, access (Replaces A77440)

1шт.

15

A77441

GASKET

cover plate

2шт.

16

J902115

FLANGE BOLT,Hex, M12 x 65mm, Cl 10.9

flanged hex, M12 x 1.75 x 69 mm

2шт.

20

J905933

HOUSING

timing pin

1шт.

21

J914092

O-RING

pin housing

1шт.

22

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

23

J903924

PIN,18.87mm OD x 55mm L

timing

1шт.

24

J913994

O-RING

sealing, timing pin (Replaces J903927)

1шт.

25

J904849

SNAP RING,0.875", Int, #87

Timing pin

1шт.

28

J904353

GASKET KIT

oil, crankshaft front, Includes: Ref. 29 - 31

1шт.

29

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front

1шт.

30

NSS

NOT SOLD SEPARAT

TOOL - seal installation

1шт.

31

NSS

NOT SOLD SEPARAT

TOOL - seal installation

1шт.

32

J912772

RETAINER

bolt

1шт.

33

J901446

FLANGE BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

hex flange, M8 x 1.25 x 60 mm

1шт.

36

J905943

DRIVE

ADAPTER - hydraulic pump

1шт.

37

J902601

BEARING, ROLLER,35mm ID x 64mm OD x 37mm W

pump roller

1шт.

38

J912204

SHAFT

accessory drive

1шт.

39

J902595

GEAR

accessory drive

1шт.

40

J905945

BRACKET

pump

1шт.

41

J905944

SPACER

mounting

1шт.

42

J901249

FLANGE BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

hex flange, M12 x 1.75 x 25 mm

1шт.

43

J902116

FLANGE BOLT,Hvy Hex, M12 x 50mm, Cl 10.9

pump brace to block

2шт.

48

J905306

HUB

tachometer drive

1шт.

49

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

cover

1шт.

50

J903476

COVER

access hole

1шт.

51

J905218

GASKET

tachometer drive

1шт.

52

J905217

FITTING

drive

1шт.

53

A77442

DRIVE SCREW,Hex, M6 x 1 x 12mm, Cl 8.8

, Serial Range: drive-adapter

2шт.

54

J903644

WASHER

retaining

2шт.
