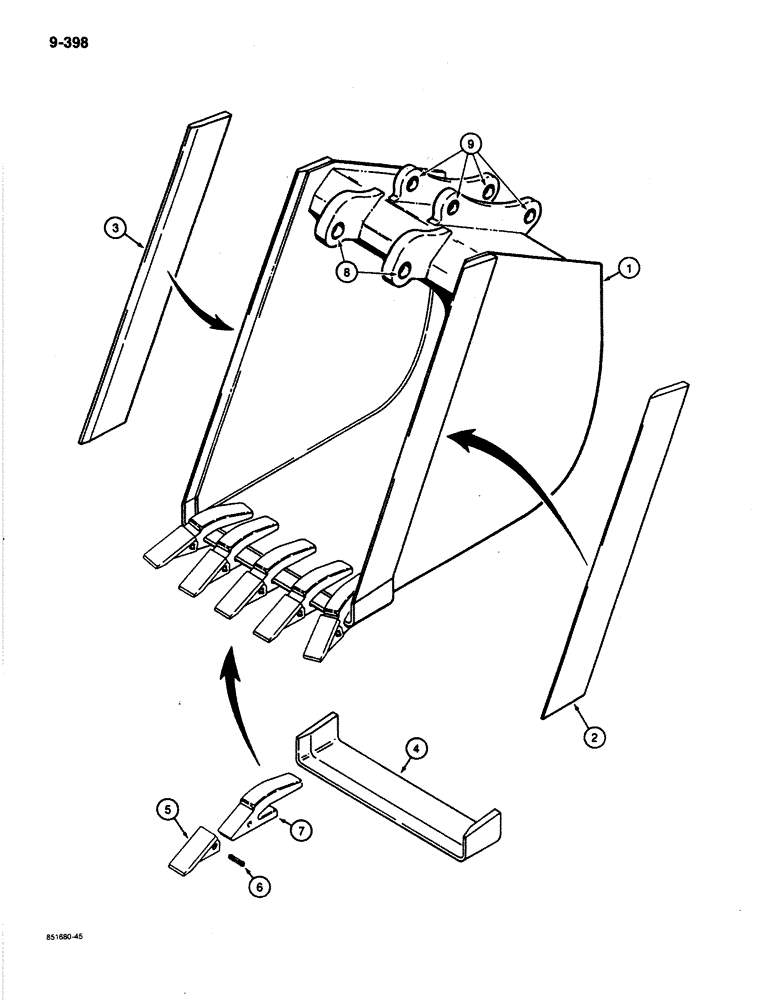

Запчасти Case 780C (9-398) - BACKHOE BUCKET, 30" TRENCHING BUCKET - HEAVY DUTY (09) - CHASSIS/ATTACHMENTS

1

D128979

BUCKET ASSEMBLY - 30" (762 mm) machinery item, order from the Machinery Price List, no longer available, order D138070 bucket assembly in Figure 9-400, Includes: Ref. 2 - 9

1шт.

2

L112004

EDGE

SPARE PART cutting, bucket, right-hand side

1шт.

3

L112005

EDGE

cutting, bucket, left-hand side

1шт.

4

D128975

EDGE

cutting, center

1шт.

D129198

TOOTH

ASSEMBLY - bucket, Includes: Ref. 5 - 7

5шт.

5

L32089

POINT

tooth

1шт.

6

L32090

PIN

PIN - flex

1шт.

7

D129197

SHANK

tooth

1шт.

8

D43508

BUSHING

bucket, 2" ID x 2-1/2" OD

2шт.

9

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

bucket, 1-3/4" ID x 2-1/4" OD

4шт.
