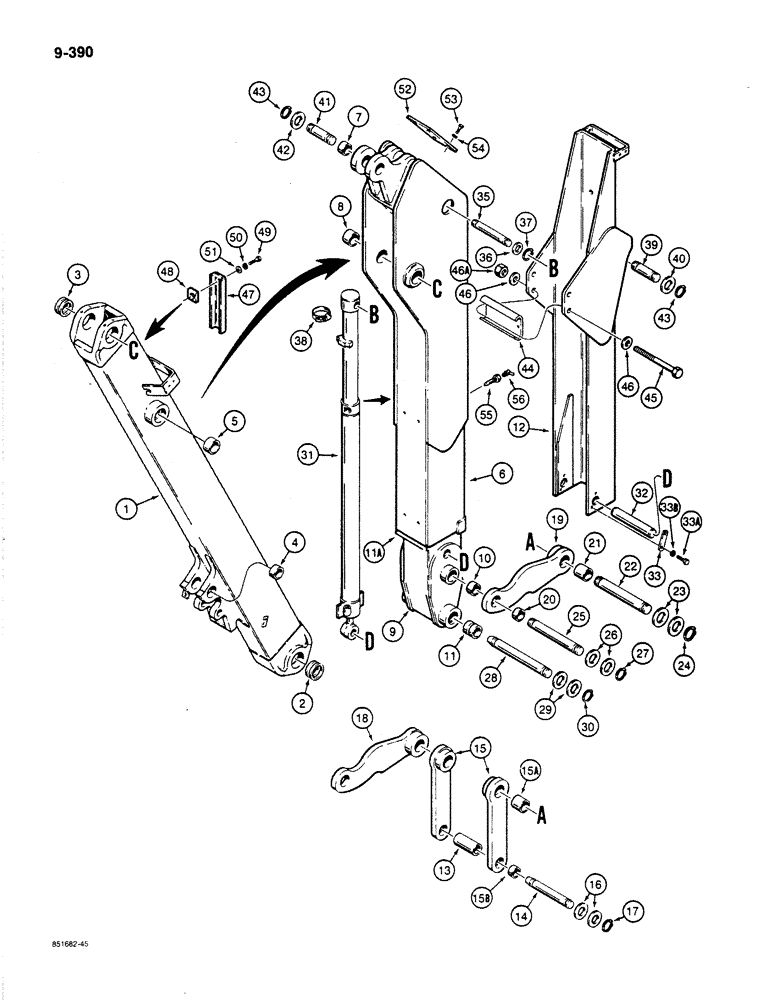

Запчасти Case 780C (9-390) - EXTENDABLE DIPPER (09) - CHASSIS/ATTACHMENTS

1

L108771

BOOM

ASSEMBLY - backhoe, used with extendable dipper only, Includes: Ref. 2 - 5

1шт.

2

L102178

BUSHING

boom, tower end

2шт.

3

L106645

BUSHING

boom, dipper end

2шт.

4

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

at dipper cylinder mounting

2шт.

5

D51545

BUSHING,63.75mm ID x 76.2mm OD x 38.1mm L

at boom cylinder mounting

2шт.

L109319

DIPPER

ASSEMBLY - extendable, Includes: Ref. 6 - 11A

1шт.

6

L102299

DIPPER

extendable, Includes: Ref. 7 and 8

1шт.

7

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

ear

2шт.

8

D51545

BUSHING,63.75mm ID x 76.2mm OD x 38.1mm L

at boom mounting

2шт.

9

L102261

DIPPER

EXTENSION - arm, inner, Includes: Ref. 10 and 11

1шт.

10

D34506

BUSHING,51.02mm ID x 63.5mm OD x 63.5mm L

guide link

2шт.

11

L79365

BUSHING

bucket mounting

2шт.

11a

L102211

WEAR PLATE

inner

1шт.

12

L109318

SLIDER

dipper, bucket cylinder

1шт.

13

L101577

SPACER

link, backhoe bucket

1шт.

14

L101371

PIN

link, backhoe bucket

1шт.

15

L104474

LINK

backhoe bucket to cylinder, Includes: Ref. 15A and 15B

2шт.

15a

L78951

BUSHING

link

1шт.

15b

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

link

1шт.

16

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

flat, 1-3/4", special

1шт.

17

D25280

SNAP RING,#175, Ext

Pin

2шт.

18

L104477

LINK ASSY.

bucket guide, left-hand

1шт.

19

L104476

LINK

bucket guide, right-hand, Includes: Ref. 20 and 21

1шт.

20

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

L104476 or L104477 link

1шт.

21

R28235

BUSHING

L104476 or L104477 link

1шт.

22

L104573

PIN

bucket cylinder to guide link

1шт.

23

195-2161

WASHER,2 5/16" x 3 1/2" x .134"

flat, 2-1/4", special

1шт.

24

F40807

SNAP RING,#225, Ext

pin #225, Ext

2шт.

25

L101365

PIN

guide, Serial Range: link-dipper

1шт.

26

195-2155

WASHER,2 1/16" x 3" x .109"

flat, 2", special

1шт.

27

D26919

SNAP RING,#200, Ext

Pin

2шт.

28

L113844

PIN

, Serial Range: bucket-dipper

1шт.

29

195-2155

WASHER,2 1/16" x 3" x .109"

flat, 2", special

1шт.

30

D26919

SNAP RING,#200, Ext

Pin

2шт.

31

G103108

CYLINDER ASSY.

dipper extension, parts list Figure 8-344

1шт.

32

L108599

PIN

SPARE PART slide to inner tube, used with L108758 pin retaining strap

1шт.

33

L108758

STRAP

SPARE PART pin retaining

2шт.

33a

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

33b

92-6

LOCK WASHER,3/8"

4шт.

35

D53812

PIVOT PIN,1.5" OD x 10.14" L

extension cylinder, closed end

1шт.

36

L79009

WASHER

flat, special

1шт.

37

D25279

SNAP RING,M35, Int

pin retaining

2шт.

38

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

extension cylinder

1шт.

39

R28040

PIN

bucket, Serial Range: cylinder-dipper

1шт.

40

195-2155

WASHER,2 1/16" x 3" x .109"

flat, 2", special

1шт.

41

R28040

PIN

dipper, Serial Range: cylinder-dipper

1шт.

42

195-2155

WASHER,2 1/16" x 3" x .109"

flat, 2", special

2шт.

43

D26919

SNAP RING,#200, Ext

Pin

4шт.

44

L108792

BLOCK

SPARE PART PLATE - wear

1шт.

45

13-16200

BOLT,Hex, 1" - 8 x 12-1/2", Gr 5

2шт.

46

195-553

WASHER,1", SAE

flat, 1", plated

4шт.

46a

131-82

NUT,1"-8

hex, self-locking, 1" - 8 NC

2шт.

47

L103653

GUARD

SPARE PART tube

1шт.

48

L103674

BLOCK

SPARE PART spacer

2шт.

49

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

50

92-8

LOCK WASHER,1/2"

2шт.

51

95-8

WASHER,1/2"

Flat

2шт.

52

L102210

PLATE

cover

1шт.

53

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

54

92-6

LOCK WASHER,3/8"

4шт.

55

219-107

NOZZLE CAP

extension, grease fitting, used with Ref. 56 to lubricate dipper slide

1шт.

56

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

Self-tapping, used with Ref. 55 to lubricate dipper slide

1шт.
