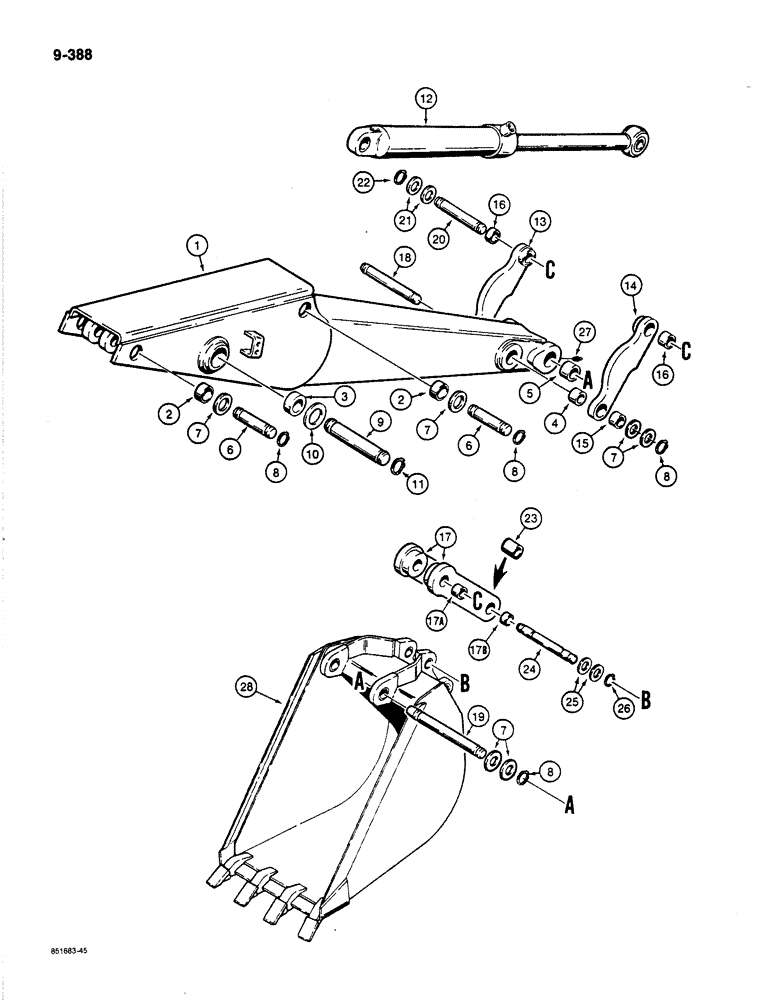

Запчасти Case 780C (9-388) - BACKHOE DIPPER AND BUCKET (09) - CHASSIS/ATTACHMENTS

1

L108811

DIPPER

ASSEMBLY - backhoe, Includes: Ref. 2 - 5

1шт.

2

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

dipper cylinder and bucket cylinder mounting

4шт.

3

D51545

BUSHING,63.75mm ID x 76.2mm OD x 38.1mm L

dipper pivot

2шт.

4

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

dipper at bucket link

2шт.

5

L103230

BUSHING

dipper at bucket

2шт.

6

L103165

PIN

dipper cylinder and bucket, Serial Range: cylinder-dipper

2шт.

7

195-2155

WASHER,2 1/16" x 3" x .109"

flat, 2", special, cylinder pin

1шт.

8

D26919

SNAP RING,#200, Ext

Pin

8шт.

9

L101373

PIN

, Serial Range: dipper-boom

1шт.

10

195-2167

WASHER,2 5/8" x 4" x .109"

flat, 2-1/2", special

1шт.

11

L16015

RING

snap, pin retaining

2шт.

12

G105857

CYLINDER

ASSEMBLY - bucket, parts list Figure 9-342

1шт.

13

L104477

LINK ASSY.

bucket guide, left-hand

1шт.

14

L104476

LINK

bucket guide, right-hand, Includes: Ref. 15 and 16

1шт.

15

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

L104476 or L104477 link

1шт.

16

R28235

BUSHING

L104476 or L104477 link

1шт.

17

L104474

LINK

backhoe bucket to cylinder, Includes: Ref. 17A and 17B

2шт.

17a

L78951

BUSHING

link

1шт.

17b

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

link

1шт.

18

L101365

PIN

guide, Serial Range: link-dipper

1шт.

19

L113844

PIN

, Serial Range: bucket-dipper

1шт.

20

L104573

PIN

bucket cylinder to guide link

1шт.

21

195-2161

WASHER,2 5/16" x 3 1/2" x .134"

flat, 2-1/4", special

1шт.

22

F40807

SNAP RING,#225, Ext

pin #225, Ext

2шт.

23

L101577

SPACER

link, backhoe bucket

1шт.

24

L101371

PIN

link, backhoe bucket

1шт.

25

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

flat, 1-3/4", special

1шт.

26

D25280

SNAP RING,#175, Ext

Pin

2шт.

27

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

28

REF

INSTRUCTION

BUCKET - backhoe, see Figures 9-394 - 9-404 for bucket options

1шт.
