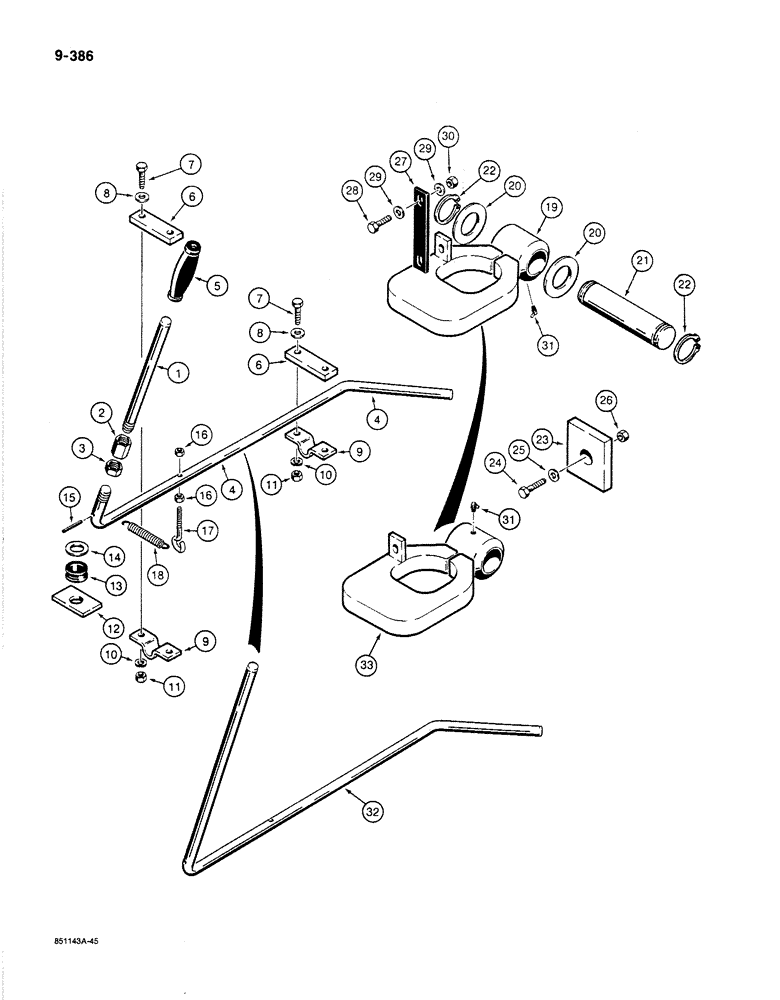

Запчасти Case 780C (9-386) - BOOM LATCH (09) - CHASSIS/ATTACHMENTS

L36219

KIT

boom latch lever, four piece lever, may be replaced by one piece lever on some models, see Refs. 32 and 33, Includes: Ref. 1 - 4

1шт.

1

L107990

LEVER

upper

1шт.

2

L107992

NUT

special

1шт.

3

129-107

NUT,5/8"-11, G5

1шт.

4

L107991

LEVER

lower

1шт.

5

L52477

GRIP

lever, boom latch

1шт.

6

L57268

BAR

lock mounting

2шт.

7

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

8

95-6

WASHER,3/8"

4шт.

9

L103258

RETAINER

SPARE PART lever

2шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

4шт.

12

L103350

PLATE ASSY.

cover, special

1шт.

13

T28755

GROMMET,5/8" ID x 7/8" Groove Dia

handle

1шт.

14

T22220

WASHER

special

1шт.

15

138-62

LOCK PIN,1/8" x 1 1/8", Slotted

Lever

1шт.

16

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

17

C10792

BOLT (SPREADER)

EYEBOLT - 1/4" - 20 NC

1шт.

18

L50735

VALVE SPRING

eyebolt

1шт.

19

L103307

LATCH ASSY.

boom, with lower grease port, used with four piece lever, Refs. 1 - 4

1шт.

20

A11990

WASHER

special

2шт.

21

D42611

PIN

boom, Serial Range: latch-boom

1шт.

22

D25279

SNAP RING,M35, Int

pin retaining

2шт.

23

L79185

BLOCK

stop

1шт.

24

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

25

195-525

WASHER,3/8", SAE

1шт.

26

131-94

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC, special

1шт.

27

L73300

STRAP

boom lock

1шт.

28

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

29

95-6

WASHER,3/8"

4шт.

30

131-52

NUT,3/8"-16, GC

hex, self-locking, 3/8" - 16 NC, plated

2шт.

31

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

Special short

1шт.

32

D139194

ROD

LEVER - boom latch, one piece lever, replaces four piece lever used on some models

1шт.

33

D140191

RING

LATCH - boom, with upper grease port

1шт.
