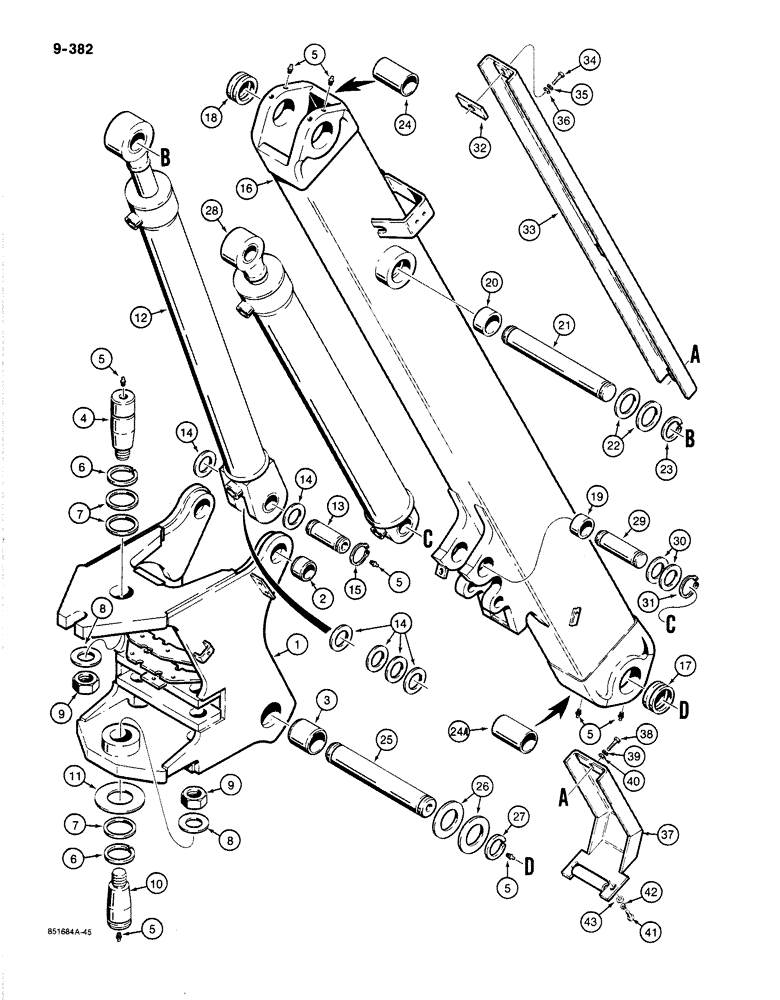

Запчасти Case 780C (9-382) - BACKHOE SWING TOWER AND BOOM (09) - CHASSIS/ATTACHMENTS

1

L102233

BOOM

TOWER ASSEMBLY - swing, backhoe, Includes: Ref. 2 and 3

1шт.

2

D43508

BUSHING

at boom cylinders

2шт.

3

L102262

BUSHING

at boom

2шт.

4

L102303

PIN

tower mounting, upper

1шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

8шт.

6

L16016

RING

retaining, pin

2шт.

7

L45001

WASHER

special, shim

1шт.

8

L107223

WASHER

2", special, used with hex nut

2шт.

9

25-1532

JAM NUT,Jam, 2"-12, G5

hex, jam, 2" - 12 NF

2шт.

Above Ref. 9 there is a hole for pin number D127101 the bushing is p/n G33061

1шт.

10

L102304

PIN

tower mounting, lower

1шт.

11

L70236

BEARING WASHER

bearing, special

1шт.

12

G103044

CYLINDER ASSY.

boom, parts list Figure 9-338

2шт.

13

L105882

PIN

boom cylinder to swing tower

2шт.

14

195-2155

WASHER,2 1/16" x 3" x .109"

flat, 2", special, pin, boom cylinder to swing tower

1шт.

15

D26919

SNAP RING,#200, Ext

Pin

4шт.

16

L108770

BOOM

ASSEMBLY - backhoe, not used with extendable dipper, Includes: Ref. 17 - 20

1шт.

17

L102178

BUSHING

boom, tower end

2шт.

18

L106645

BUSHING

boom, dipper end

3шт.

19

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

at dipper cylinder mounting

2шт.

20

D51545

BUSHING,63.75mm ID x 76.2mm OD x 38.1mm L

at boom cylinder mounting

2шт.

21

L101374

PIN

boom, Serial Range: cylinder-boom

1шт.

22

195-2167

WASHER,2 5/8" x 4" x .109"

flat, 2-1/2", special, used as a spacer

4шт.

3

L16015

RING

retaining, pin

2шт.

24

L103865

SPACER

SPARE PART boom end casting, upper, 2-3/4" diameter

1шт.

24a

L107093

SPACER

boom end casting, lower, 3" diameter

1шт.

25

L102561

PIN

boom to swing tower

1шт.

26

H71514

WASHER,72mm ID x 114mm OD x 3mm Thk

special, boom to swing tower

1шт.

27

L106635

RING

retaining, pin

2шт.

28

G103050

CYLINDER

ASSEMBLY - dipper, parts list Figure 9-340

1шт.

29

L54437

AXLE PIN

dipper, Serial Range: cylinder-boom

1шт.

30

195-2155

WASHER,2 1/16" x 3" x .109"

flat, 2", special, dipper cylinder to boom

4шт.

31

D26919

SNAP RING,#200, Ext

Pin

2шт.

32

L103660

BLOCK

cover, hose protector

1шт.

33

L103750

SHIELD

COVER - hose protector

1шт.

34

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

35

92-8

LOCK WASHER,1/2"

2шт.

36

95-8

WASHER,1/2"

Flat

2шт.

37

D129070

GUARD ASSY.

boom end, lower, hose protector

1шт.

38

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

39

92-8

LOCK WASHER,1/2"

1шт.

40

95-8

WASHER,1/2"

Flat

1шт.

41

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

42

92-8

LOCK WASHER,1/2"

2шт.

43

95-8

WASHER,1/2"

Flat

2шт.
