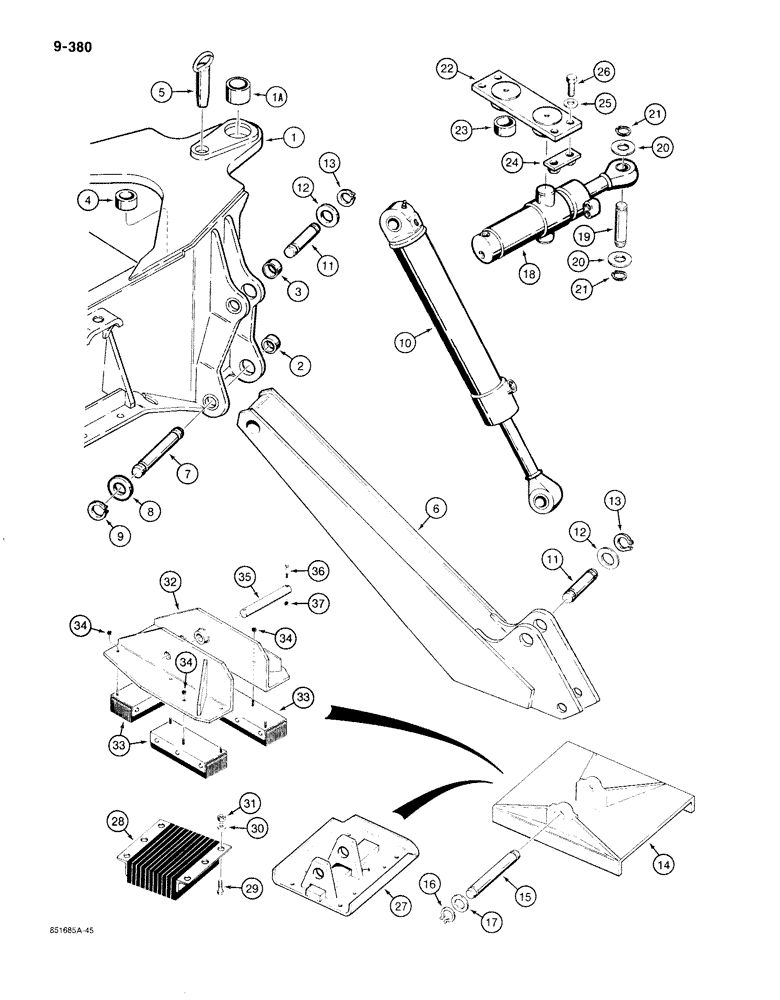

Запчасти Case 780C (9-380) - BACKHOE MOUNTING FRAME AND STABILIZERS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CHASSIS ASSEMBLY - frame assembly, for correct chassis, see parts list Figure 9-410, Includes: Ref. 1A - 4

1шт.

1a

L102293

BUSHING

upper, swing tower mounting

1шт.

2

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

stabilizer, Serial Range: leg-frame

4шт.

3

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

stabilizer, Serial Range: cylinder-frame

4шт.

4

D60159

BUSHING,60.55mm ID x 69.85mm OD x 38.1mm L

swing cylinder

2шт.

5

L70598

AXLE PIN

swing tower lock

1шт.

6

D133302

STABILIZER

SPARE PART LEG

2шт.

7

L103135

PIN

, Serial Range: stabilizer-chassis

2шт.

8

195-2155

WASHER,2 1/16" x 3" x .109"

flat, 2", special, used as a spacer

1шт.

9

D26919

SNAP RING,#200, Ext

Pin

4шт.

10

G103057

CYLINDER ASSY.

stabilizer, parts list Figure 9-334

2шт.

11

D25079

AXLE PIN,44.45mm OD x 157.2mm L

stabilizer cylinder to stabilizer leg

4шт.

12

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

flat, 1-1/3", special

1шт.

13

D25280

SNAP RING,#175, Ext

Pin

8шт.

14

L110512

PAD

PLATE - stabilizer

2шт.

15

L71043

AXLE PIN

, Serial Range: stabilizer-plate

2шт.

16

D25279

SNAP RING,M35, Int

pin retaining

4шт.

17

195-2142

WASHER,1 17/32" x 2 1/16" x .109"

flat, 1-1/2", special, used as a spacer

1шт.

18

G103072

CYLINDER

ASSEMBLY - swing, parts list Figure 9-336

2шт.

19

D127101

PIN

swing, Serial Range: cylinder-tower

2шт.

20

T15465

WASHER

special

4шт.

21

D25280

SNAP RING,#175, Ext

Pin

4шт.

22

L104211

PLATE ASSY.

swing cylinder mounting, Includes: Ref. 23

1шт.

23

D60159

BUSHING,60.55mm ID x 69.85mm OD x 38.1mm L

plate

2шт.

24

L106669

RETAINER

bolt retaining

2шт.

25

D30196

WASHER

hardened

4шт.

26

113-917

BOLT,Hex, 1" - 8 x 2-3/4", Gr 5, Full Thd

4шт.

27

L78070

PLATE ASSY.

FOOT - cemetery and street, if used

2шт.

28

D61368

PAD

Rubber, bolt on, street and cemetary plate, if used

2шт.

29

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

If used

8шт.

30

95-10

WASHER,5/8"

flat, , if used 5/8"

16шт.

31

129-107

NUT,5/8"-11, G5

If used

8шт.

32

D143479

PAD

SPARE PART PLATE - stabilizer, flip over, Category III

2шт.

33

D142314

SKID/SHOE

PAD - rubber, used with D143479 plate

6шт.

34

131-1129

LOCK NUT,7/16"-14, GA

hex, self-locking, 7/16" - 14 NC, plated

18шт.

35

D143478

PIN

D143479 plate to stabilizer leg

2шт.

36

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

37

131-52

NUT,3/8"-16, GC

hex, self-locking, 3/8" - 16 NC, plated

4шт.
