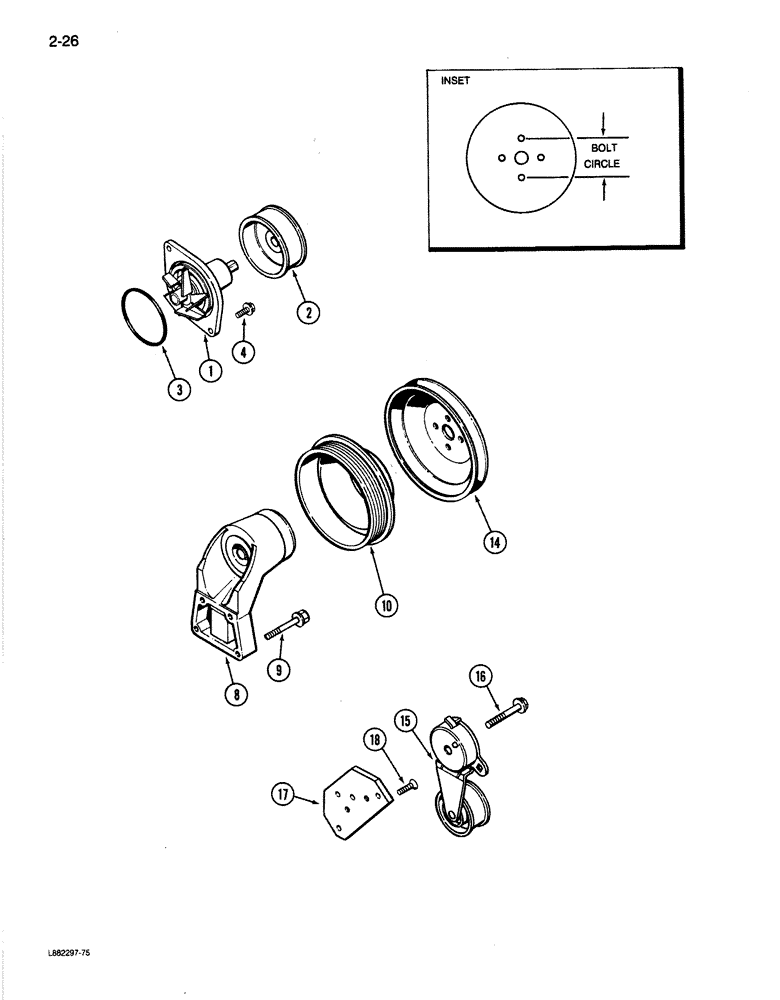

Запчасти Case 780C (2-26) - WATER PUMP SYSTEM, 6T-590 ENGINE (02) - ENGINE

AR77471

REMAN-WATER PUMP

remanufactured

1шт.

J286278R

REMAN-WATER PUMP

780C

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

AC77471

CORE-WATER PUMP

RETURN NUMBER - use this part number to return pump core for credit

1шт.

A77471

PUMP, WATER

KIT - Includes: Ref. 1 - 3

1шт.

A77703GV

WATER PUMP

Value, Water Pump Assy.

1шт.

J286278R

REMAN-WATER PUMP

780C, Replaces P/N A77471 & AR77471

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY - pump (Order A77471)

1шт.

3

22290R1

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

sealing (Replaces A30395)

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

8

J909890

SUPPORT

ASSEMBLY - fan pulley, 50 mm bolt circle (Replaces J908270)

1шт.

8

J911922

SUPPORT ASSY.

fan pulley, 60 mm bolt circle

1шт.

9

J900678

BOLT,Hex Flg, M8 x 40mm, Cl 8.8

hex flange, M8 x 63 mm

4шт.

10

J902710

PULLEY

fan, 50 mm bolt circle

1шт.

10

J914462

PULLEY,163mm OD

fan, 60 mm bolt circle

1шт.

14

J903221

PULLEY

accessory drive, 50 mm bolt circle

1шт.

14

J908819

PULLEY

accessory drive, 60 mm bolt circle

1шт.

15

J912246

BELT TENSIONER

ASSEMBLY - belt (Replaces J908163)

1шт.

16

J905426

BOLT,Hex, M10 x 1.5 x 61.86mm

hex flange head, M10 x 62 mm

1шт.

17

J904548

BRACKET

belt tension

1шт.

18

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

Flat head cap

2шт.
