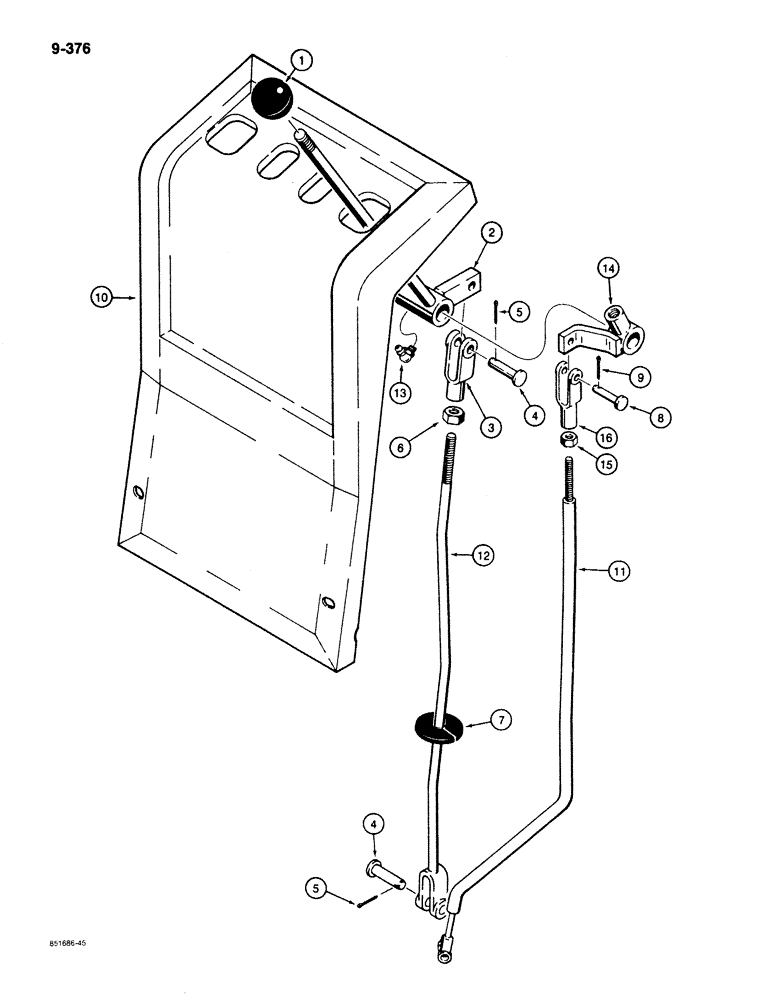

Запчасти Case 780C (9-376) - BACKHOE EXTENDABLE DIPPER CONTROL, FOOT SWING MODELS (09) - CHASSIS/ATTACHMENTS

1

L54563

KNOB

control lever

1шт.

2

L108117

HANDLE

LEVER - control extendahoe

1шт.

3

213-41

ADJUSTABLE CLEVIS,3/8"-24

Rod end

1шт.

4

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

5

132-320

COTTER PIN,3/32" x 3/4"

2шт.

6

86585245

SPECIAL NUT,JAM, 5/8" - 18

1шт.

7

L109751

SEAL

control rod

1шт.

8

141-53

CLEVIS PIN,5/16" x .940"

1шт.

9

132-320

COTTER PIN,3/32" x 3/4"

1шт.

10

D124082

COVER

control tower, see Figure 9-366

1шт.

11

L103415

ROD ASSY.

stabilizer, left-hand, see Figure 9-368 Ref. 32 for rod used on models without extendable dipper

1шт.

12

L104125

ROD ASSY.

bucket, dipper, boom, and extendable dipper, see Figure 9-368 Ref. 24 for rods used on models without extendable dipper

4шт.

13

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

90 degree, 1/4" - 28 NF taper

1шт.

14

D87834

LEVER

right-hand stabilizer

1шт.

15

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

16

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - 5/16", adjustable, rod end

1шт.
