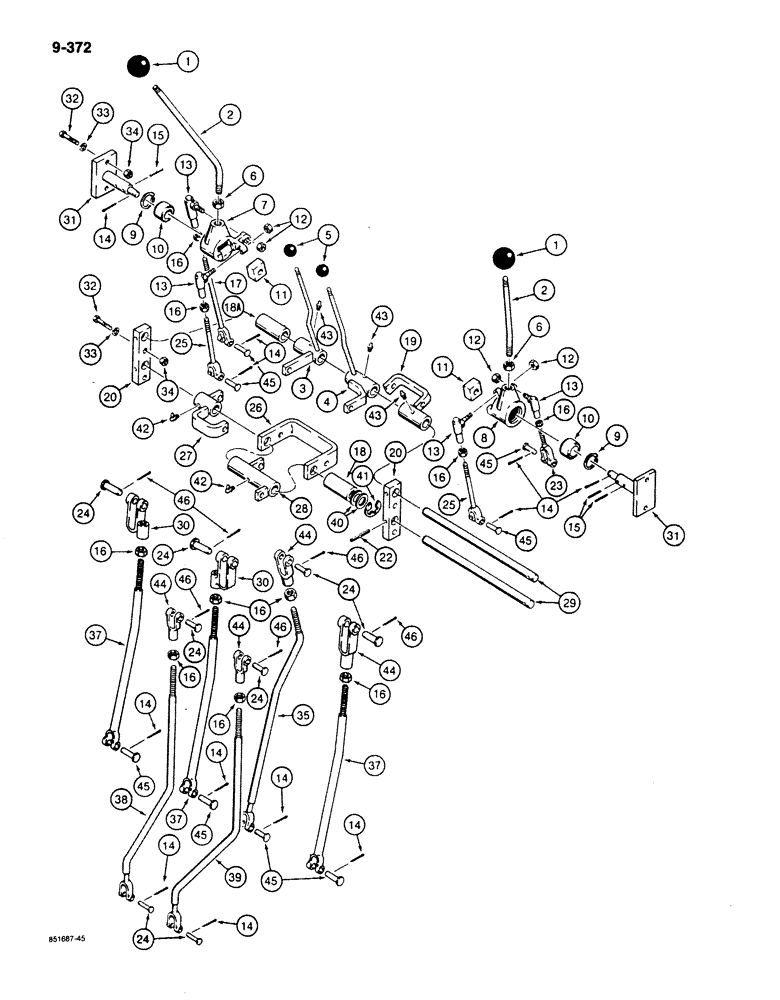

Запчасти Case 780C (9-372) - BACKHOE CONTROLS WITH HAND SWING (09) - CHASSIS/ATTACHMENTS

1

D39118

KNOB

control levers

2шт.

2

L108087

LEVER

boom and swing control, dipper and bucket

2шт.

3

L105459

LEVER

SPARE PART stabilizer control, left-hand

1шт.

4

L105456

LEVER

SPARE PART stabilizer control, right-hand

1шт.

5

D59912

KNOB

stabilizer control lever

2шт.

6

129-127

NUT,5/8"-18, G5

2шт.

7

L105056

LEVER

pivot, left-hand

1шт.

8

L109118

LEVER

pivot, right-hand

1шт.

9

D1038223

SPRING

Ring, Snap, 1.438", Int, #143, brg

2шт.

10

D38297

SPHERICAL BEARING,22.23mm ID x 36.51mm OD x 19.43mm W

BEARING - self-aligning

2шт.

11

D38305

BLOCK

wear

2шт.

12

129-123

NUT,3/8"-24, G5

4шт.

13

D38296

JOINT

ball, 3/8"

4шт.

14

132-25

COTTER PIN,3/32" x 5/8"

12шт.

15

138-327

PIN,3/16" x 1", Slotted

SPARE PART

4шт.

16

86585245

SPECIAL NUT,JAM, 5/8" - 18

10шт.

17

L106744

ROD

boom control, upper

1шт.

18

D128652

SPACER

split, 2-13/16" (72 mm) long

1-2шт.

18a

L105446

TUBE

2-17/32" (64 mm) long, spacer, replaces split spacer, Ref. 18, on some models

1шт.

19

L105454

BRACKET

dipper pivot

1шт.

20

L106412

SUPPORT ASSY.

pivot shaft

2шт.

22

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

2шт.

23

R20187

ROD

dipper control, upper

1шт.

24

141-54

CLEVIS PIN,3/8" x 1 1/16"

8шт.

25

L106462

ROD

bucket control

2шт.

26

L105448

BRACKET

boom pivot

1шт.

27

L107159

LEVER

swing

1шт.

28

L105440

SHAFT - bucket

1шт.

29

D79526

ROD

SHAFT - pivot

2шт.

30

L11182

YOKE,3/8" - 24

UNIVERSAL JOINT YOKE CLEVIS - 3/8", offset, rod end

2шт.

31

L106441

SUPPORT ASSY.

pivot

2шт.

32

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

33

192-21

LOCK WASHER,3/8"

8шт.

34

129-103

NUT,Hex, 3/8" - 16, Gr 5

8шт.

35

L108551

ROD

lower dipper control

1шт.

37

L108549

ROD

lower control, bucket and boom

3шт.

38

L108553

ROD

left-hand stabilizer

1шт.

39

L108555

ROD

right-hand stabilizer

1шт.

40

195-545

WASHER,3/4", SAE

flat, 3/4", plated, used as a spacer

1шт.

41

A27812

CIRCLIP,#87, .668" Dia, E-Type

Ring, Retaining, #87, .668" Dia, E-Type

1шт.

42

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

90 degree, 1/4" - 28 NF taper

2шт.

43

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

3шт.

44

213-41

ADJUSTABLE CLEVIS,3/8"-24

4шт.

45

141-53

CLEVIS PIN,5/16" x .940"

8шт.

46

132-320

COTTER PIN,3/32" x 3/4"

6шт.
