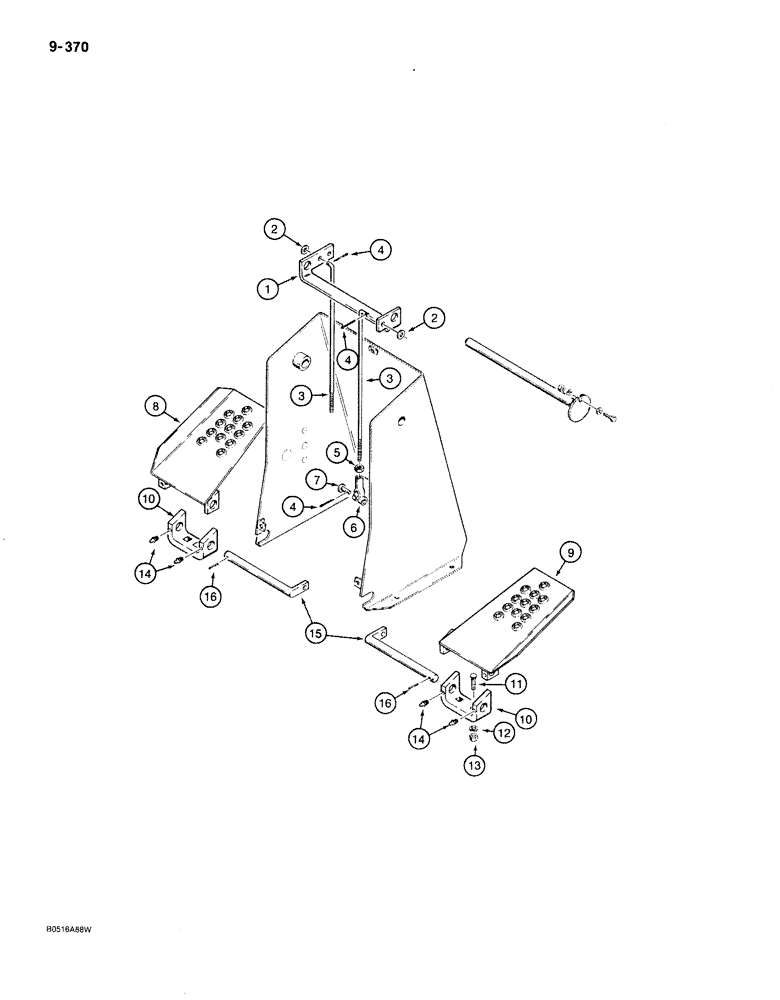

Запчасти Case 780C (9-370) - BACKHOE CONTROLS WITH FOOT SWING, SWING PEDALS AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

D129392

BRACKET

swing

1шт.

2

195-525

WASHER,3/8", SAE

2шт.

3

D81905

ROD

swing, Serial Range: pedal-bracket

2шт.

4

132-320

COTTER PIN,3/32" x 3/4"

4шт.

5

86585245

SPECIAL NUT,JAM, 5/8" - 18

2шт.

6

213-41

ADJUSTABLE CLEVIS,3/8"-24

2шт.

7

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

8

D87888

PEDAL

left-hand swing

1шт.

9

D87886

PEDAL

right-hand swing

1шт.

10

D92817

BRACKET

swing pedal

2шт.

11

111-319

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

4шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

4шт.

14

219-17

LUBE NIPPLE,3/16" NPTF

4шт.

15

D135328

SHAFT

swing pedal

2шт.

16

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

2шт.
