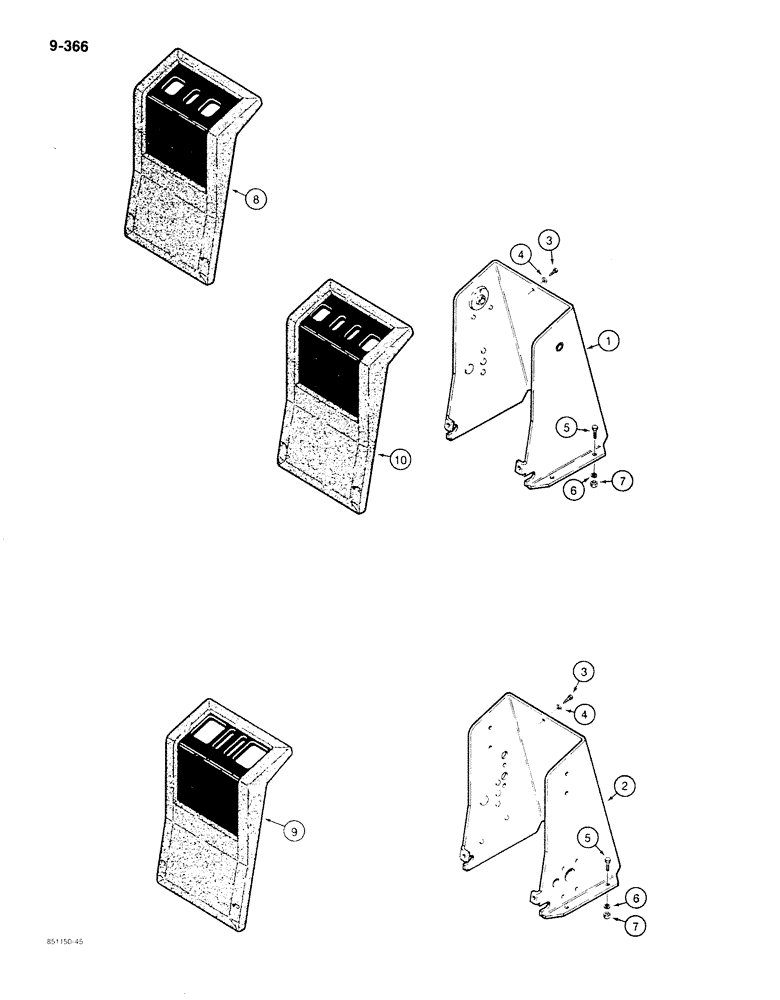

Запчасти Case 780C (9-366) - BACKHOE CONTROL TOWER (09) - CHASSIS/ATTACHMENTS

1

D123189

CONTROL BLOCK

TOWER - backhoe control, used with foot swing, if used

1шт.

2

L111602

BRACKET

TOWER - backhoe control, used with hand swing, if used

1шт.

3

187-575

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

hex washer head, self-tapping, 1/4" - 20 NC x 3/4", black

3шт.

4

195-102

WASHER,1/4"

flat, plated

3шт.

5

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

6

92-6

LOCK WASHER,3/8"

4шт.

7

129-103

NUT,Hex, 3/8" - 16, Gr 5

4шт.

8

D124081

COVER ASSY

control tower, used on models with foot swing, without extendable dipper, if used, includes decals, see Figures 9-500 and 9-502 for decals

1шт.

9

D124080

COVER ASSY

control tower, used on models with hand swing, with or without extendable dipper, if used, includes decals, see Figures 9-500 and 9-502 for decals

1шт.

10

D124082

COVER

control tower, used on models with foot swing, with extendable dipper, if used, includes decals, see Figures 9-500 and 9-502 for decals

1шт.
