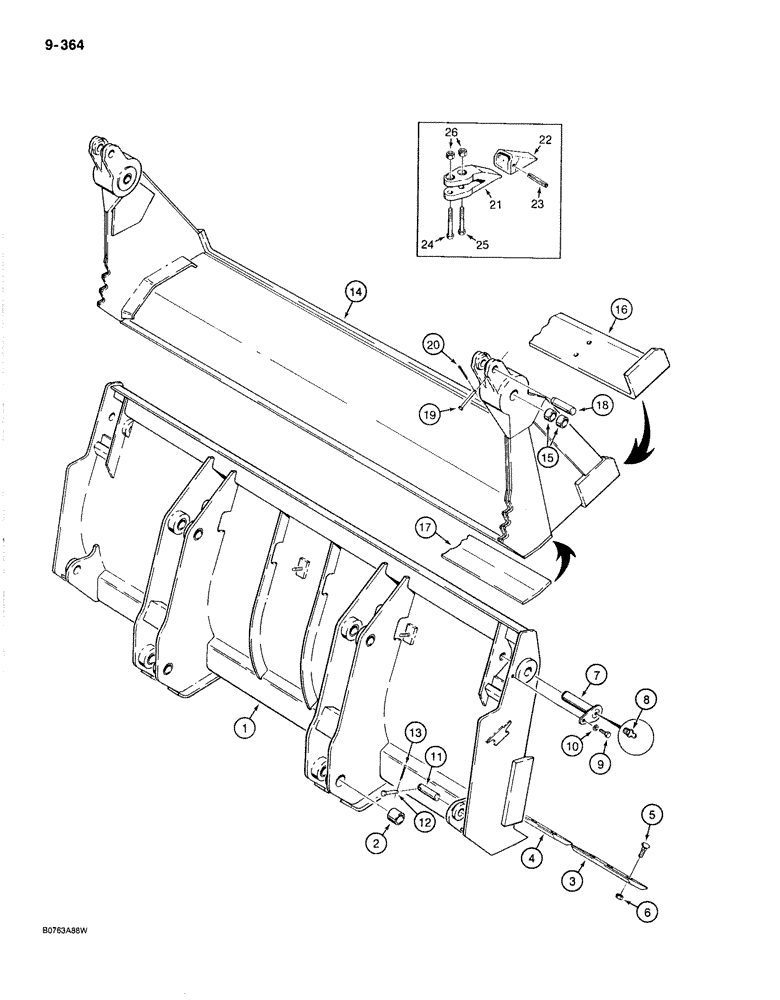

Запчасти Case 780C (9-364) - CLAM BUCKET - D139626, 1-3/4 CUBIC YARD (09) - CHASSIS/ATTACHMENTS

D139626

BUCKET ASSEMBLY - clam, 1-3/4 cubic yard (1.35 cubic meter), machinery item, order from Machinery Price List, bucket assembly also includes Refs. 1 - 11 in Figure 8-264 and D143217 clam cylinder in Figure 8-332, Includes: Ref. 1 - 20

1шт.

1

NSS

NOT SOLD SEPARAT

BLADE - bucket

1шт.

2

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

bucket ear

8шт.

3

N6743

EDGE

cutting, end

2шт.

4

A17654

EDGE

cutting, center

1шт.

5

118-509

PLOW BOLT,3/4"-10 x 2", G8

plow, 3/4" - 10 NC x 2

18шт.

6

129-572

NUT,3/4"-10, G8

18шт.

7

N7658

PIN

clam to blade, Includes: Ref. 8

2шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

9

426-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 8

2шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

11

S46134

PIN,37.95mm OD x 98.55mm L

cylinder, Serial Range: base-blade

2шт.

12

S61971

CLEVIS PIN,15.88mm OD x 80.16mm L

clevis, use with S46134 pin

2шт.

13

132-310

COTTER PIN,1/8" x 1"

2шт.

D143212

SHELL

CLAM ASSEMBLY - bucket, Includes: Ref. 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

CLAM - bucket

1шт.

15

S23904

BUSHING

clam

4шт.

16

A17657

EDGE

cutting, clam, front

1шт.

17

D143213

EDGE

PLATE - compaction, rear

1шт.

18

S18633

AXLE PIN,38.13mm OD x 102.36mm L

, Serial Range: clam-cylinder

2шт.

19

S10786

CLEVIS PIN

Use with S18633 pin

2шт.

20

132-310

COTTER PIN,1/8" x 1"

2шт.

21

S22929

TOOTH

bucket

9шт.

22

S204157

TOOTH

POINT

9шт.

23

138-316

LOCK PIN,1/2" x 2 1/2", Slotted

9шт.

24

26-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

hex head, 5/8" - 11 NC x 3-1/2", grade 8

9шт.

25

26-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

hex head, 5/8" - 11 NC x 3", grade 8

9шт.

26

129-183

NUT,5/8"-11, G8

18шт.
