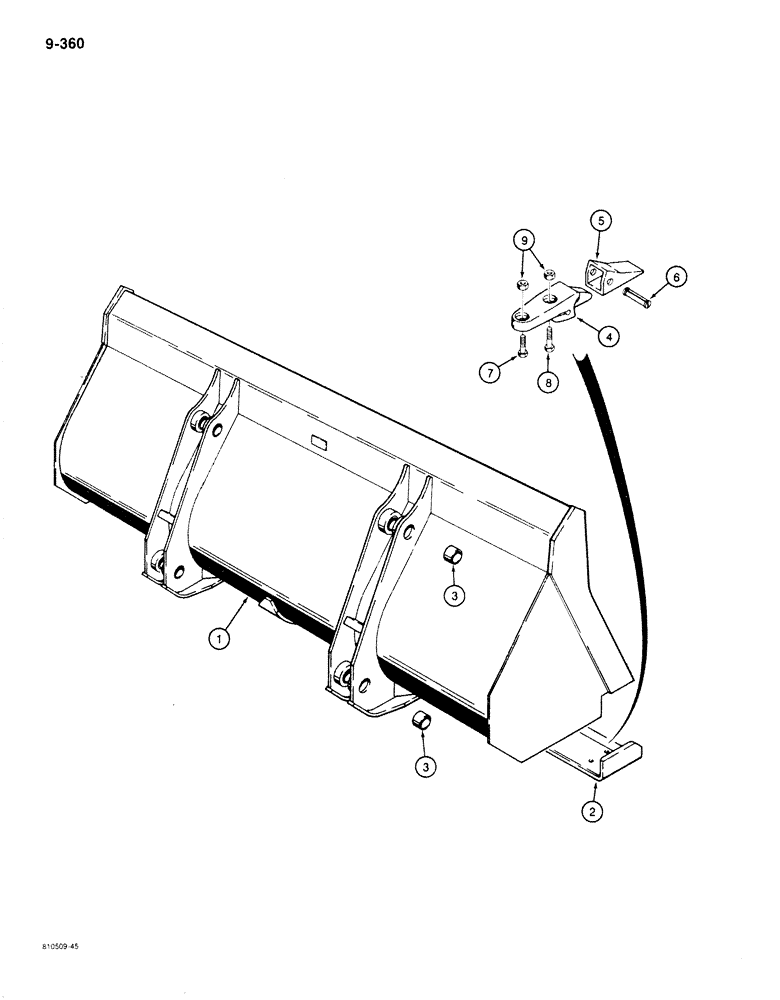

Запчасти Case 780C (9-360) - LOADER BUCKETS, 1-3/4 CUBIC YARD (1.3 CUBIC METER) LOADER (09) - CHASSIS/ATTACHMENTS

L104652

BUCKET ASSEMBLY - 96" (2438 mm) wide, machinery item, order from the Machinery Price List, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

L101620

EDGE, CUTTING

front

1шт.

3

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

bucket ear

8шт.

D50780

TOOTH

ASSEMBLY - bucket, Includes: Ref. 4 - 6

8шт.

4

NSS

NOT SOLD SEPARAT

SHANK - tooth bucket

1шт.

5

D51750

BUCKET TOOTH POINT

1шт.

6

D39094

BUCKET TOOTH KEY

PIN - flex, point

1шт.

7

113-2617

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

Bucket teeth

8шт.

8

113-684

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

SPARE PART Bucket teeth

8шт.

9

129-183

NUT,5/8"-11, G8

Bucket teeth

16шт.
