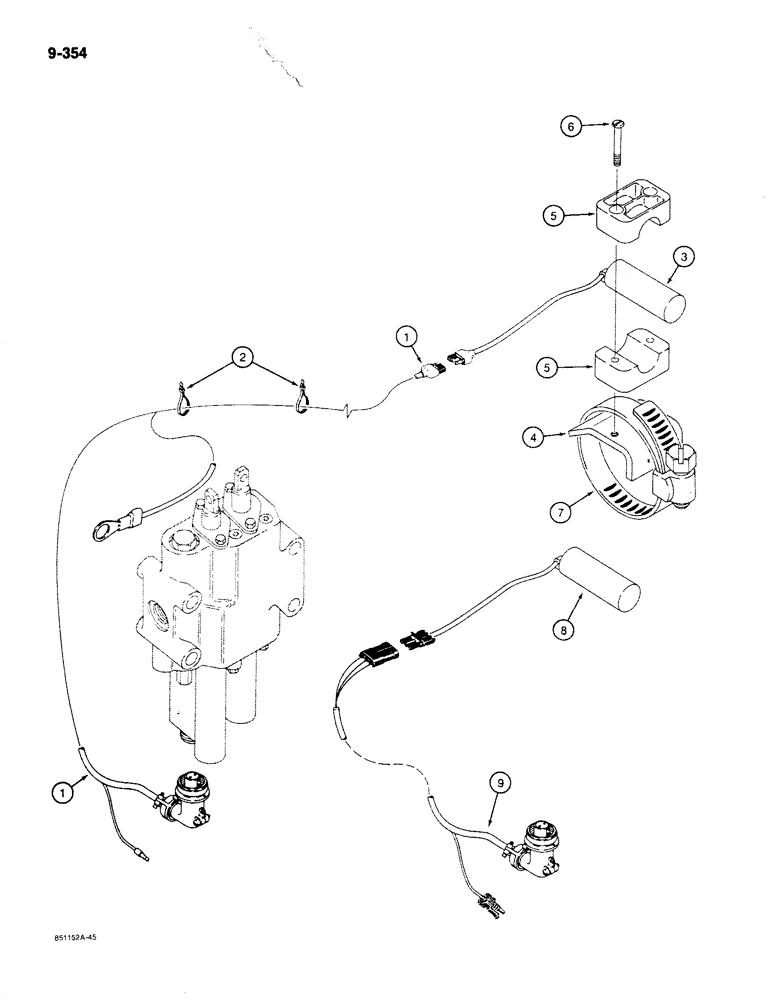

Запчасти Case 780C (9-354) - LOADER RETURN-TO-DIG CONTROL (09) - CHASSIS/ATTACHMENTS

1

D128136

HARNESS

return-to-dig, switch to loader control valve, used on models with 24 volt electrical circuit

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

3

R47120

SWITCH

return-to-dig, used on models with 24 volt electrical circuit

1шт.

4

D132339

BRACKET

switch mounting

1шт.

5

R48091

CLAMP

two-piece, switch, Serial Range: mouting-bracket

1шт.

6

71-424

SCREW

Fillister head, 1/4" - 20 NC x 1-1/2"

2шт.

7

214-179

HOSE CLAMP,3-1/4" - 4-1/8", HD Worm

heavy duty drive type, includes hardware

1шт.

8

D137276

SWITCH

return-to-dig, used on models with 12 volt electrical circuit

1шт.

9

D137815

HARNESS

return-to-dig, switch to loader control valve, used on models with 12 volt electrical circuit

1шт.
