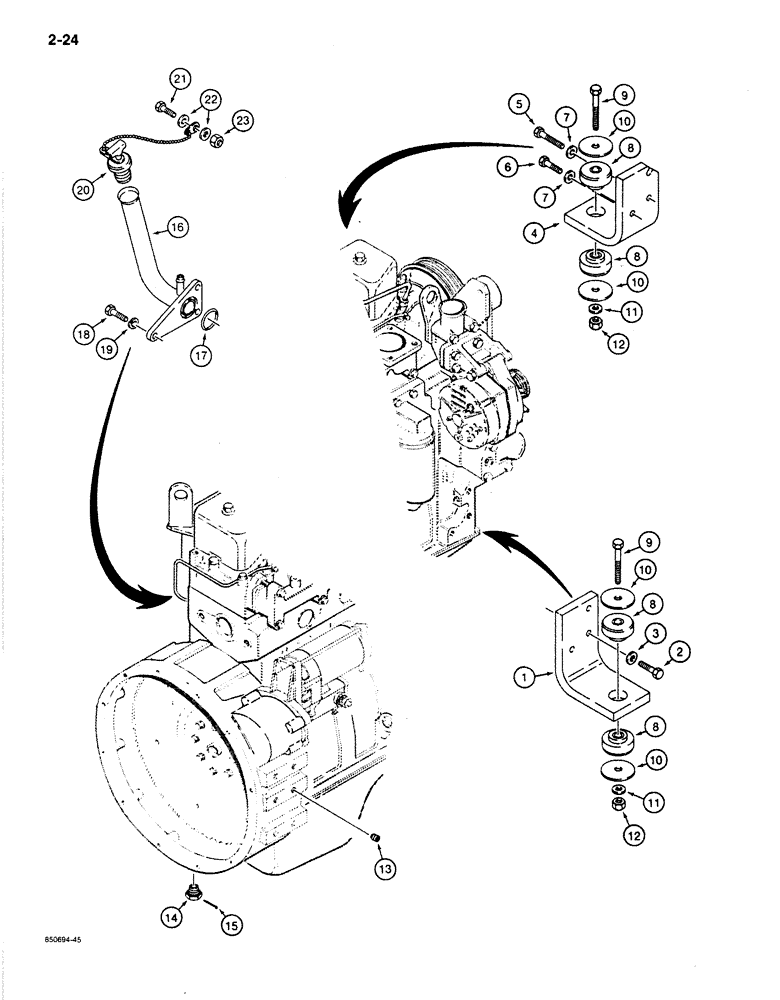

Запчасти Case 780C (2-24) - ENGINE MOUNTING (02) - ENGINE

1

D128664

BRACKET

engine mount, right-hand side

1шт.

2

814-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

hex head, 12 mm - 1.75 x 40 mm, plated

3шт.

3

196-15

WASHER,17/32" x 1 1/6" x .134"

flat, 1/2", hardened, plated

3шт.

4

D128662

BRACKET

SPARE PART engine mount, left-hand side

1шт.

5

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

6

814-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

hex head, 12 mm - 1.75 x 40 mm, plated

1шт.

7

196-15

WASHER,17/32" x 1 1/6" x .134"

flat, 1/2", hardened, plated

3шт.

8

R49482

RUBBER MOUNTING

INSULATOR - engine mount

4шт.

9

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

2шт.

10

196-27

WASHER,21/32" x 3" x .179", HDN

5/8", hardened, plated

4шт.

11

196-31

WASHER

flat, 3/4", hardened, plated

2шт.

12

131-1105

LOCK NUT,5/8"-11, GB

2шт.

13

L113743

SET SCREW,M12 x 1.75 x 12mm

set, used as a plug

4шт.

14

L113178

PLUG

bushing

1шт.

15

132-363

PIN - cotter, 7/32 x 1-1/8"

1шт.

16

L111601

TUBE,4.85, 2.3" L

oil filler

1шт.

17

S98707

O-RING,1.739" ID x 1.879" OD x 0.07"

oil filler tube to engine

1шт.

18

814-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

hex head, 12 mm - 1.75 x 30 mm, plated

3шт.

19

892-1112

LOCK WASHER,M12

3шт.

20

L61111

PLUG

CAP - oil fill

1шт.

21

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

22

195-104

WASHER,3/8"

flat, , plated 3/8"

2шт.

23

131-217

LOCK NUT

light hex, self-locking, 3/8" - 16 NC, zinc plated

1шт.
