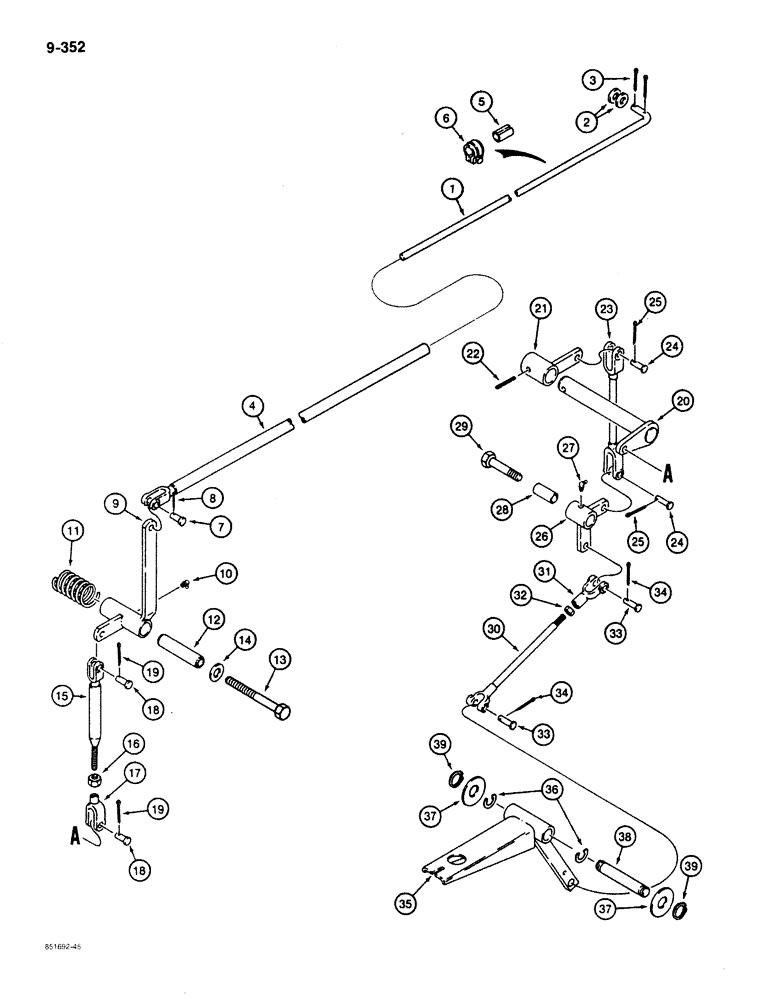

Запчасти Case 780C (9-352) - LOADER ANTIROLLBACK CONTROL (09) - CHASSIS/ATTACHMENTS

1

D133376

ROD

straight, antirollback

1шт.

2

195-533

WASHER,1/2", SAE

2шт.

3

132-310

COTTER PIN,1/8" x 1"

2шт.

4

D133379

TUBE

straight, antirollback rod to upper pivot lever

1шт.

5

D129972

SLEEVE CYLINDER

clamp

1шт.

6

D71880

CLAMP,22.23mm

tube to rod, includes bolt, washer, and nut

1шт.

7

141-54

CLEVIS PIN,3/8" x 1 1/16"

1шт.

8

132-331

COTTER PIN,3/32" x 5/8"

1шт.

9

D133375

LEVER

upper pivot

1шт.

10

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

90 degree, 1/4" - 28 NF taper

1шт.

11

D72099

SPRING

upper pivot

1шт.

12

D86652

SLEEVE

upper pivot lever

1шт.

13

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

1шт.

14

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

flat, 5/8", hardened, plated

1шт.

15

D131281

ROD

self-leveling

1шт.

16

86585245

SPECIAL NUT,JAM, 5/8" - 18

1шт.

17

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

3/8"

1шт.

18

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

19

132-331

COTTER PIN,3/32" x 5/8"

2шт.

20

D131278

SHAFT

middle

1шт.

21

D128811

LEVER

to middle shaft

1шт.

22

138-2041

PIN,3/8" x 2", Coiled

Lever to shaft

1шт.

23

D128817

ROD

connecting, Serial Range: middle-lower

1шт.

24

141-56

CLEVIS PIN,1/2" x 1.360"

clevis, 1/2", plated

2шт.

25

132-310

COTTER PIN,1/8" x 1"

2шт.

26

D128814

LEVER

lower pivot

1шт.

27

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

90 degree, 1/4" - 28 NF taper

1шт.

28

D86653

BUSHING

SLEEVE - lower pivot lever

1шт.

29

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

30

L103591

ROD

connecting, lower pivot, Serial Range: lever-bellcrank

1шт.

31

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS - 1/2"

1шт.

32

129-165

JAM NUT,Jam, 1/2"-20, G5

1шт.

33

141-56

CLEVIS PIN,1/2" x 1.360"

clevis, 1/2", plated

2шт.

34

132-310

COTTER PIN,1/8" x 1"

2шт.

35

L103614

DIPPER

BELLCRANK - antirollback control

1шт.

36

L108524

RING

special, used as a spacer

2шт.

37

195-553

WASHER,1", SAE

flat, 1", plated

2шт.

38

D25984

PIN

pivot

1шт.

39

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

retaining, pivot pin

2шт.
