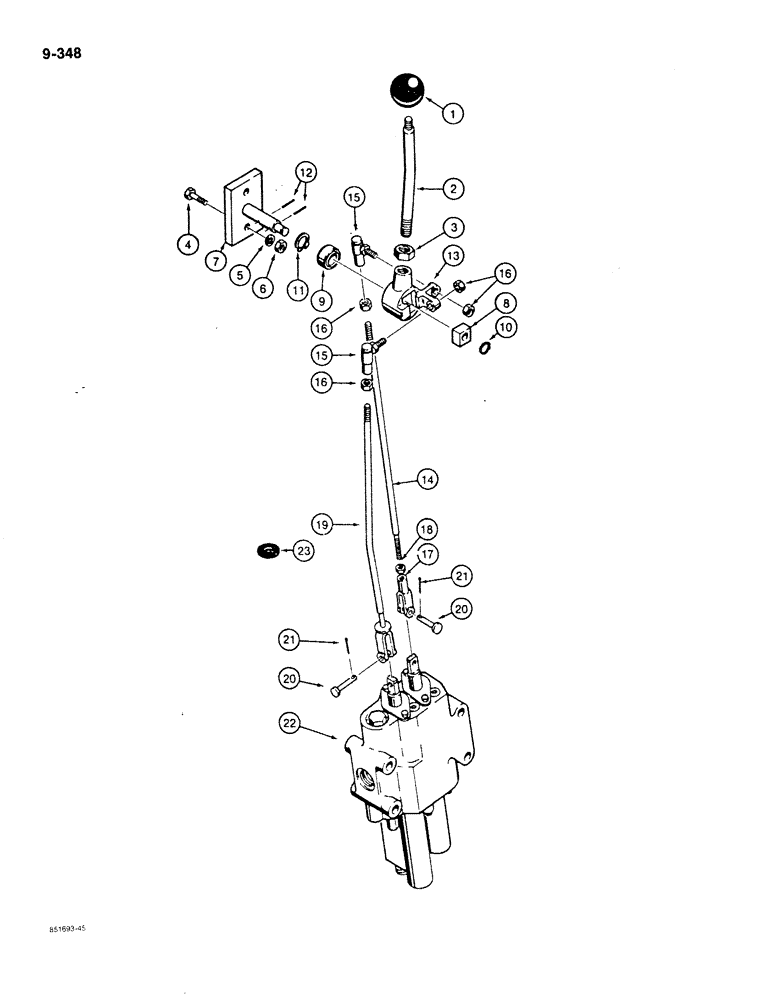

Запчасти Case 780C (9-348) - LOADER CONTROLS - LIFT AND BUCKET SPOOLS (09) - CHASSIS/ATTACHMENTS

1

L54563

KNOB

control lever

1шт.

2

L102968

LEVER

loader control

1шт.

3

129-127

NUT,5/8"-18, G5

1шт.

4

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

5

192-21

LOCK WASHER,3/8"

2шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

2шт.

7

L78119

PIVOT PIN

BRACKET - pivot lever

1шт.

8

D38305

BLOCK

wear

1шт.

9

D38297

SPHERICAL BEARING,22.23mm ID x 36.51mm OD x 19.43mm W

self-aligning

1шт.

10

A11538

SNAP RING,#50, Ext

pin, small #50, Ext

1шт.

11

D38298

SNAP RING

Ring, Snap, 1.438", Int, #143, pin, large

1шт.

12

138-96

LOCK PIN,3/16" x 1", Slotted

2шт.

13

L105056

LEVER

pivot

1шт.

14

L103004

ROD

loader lift

1шт.

15

D38296

JOINT

ball, 3/8"

2шт.

16

86585245

SPECIAL NUT,JAM, 5/8" - 18

4шт.

17

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - 5/16", rod end

1шт.

18

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

19

L103400

ROD

loader bucket

1шт.

20

141-53

CLEVIS PIN,5/16" x .940"

2шт.

21

132-331

COTTER PIN,3/32" x 5/8"

2шт.

22

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, 2 spool, parts list Figure 8-286

1шт.

23

L109751

SEAL

control rod

2шт.
