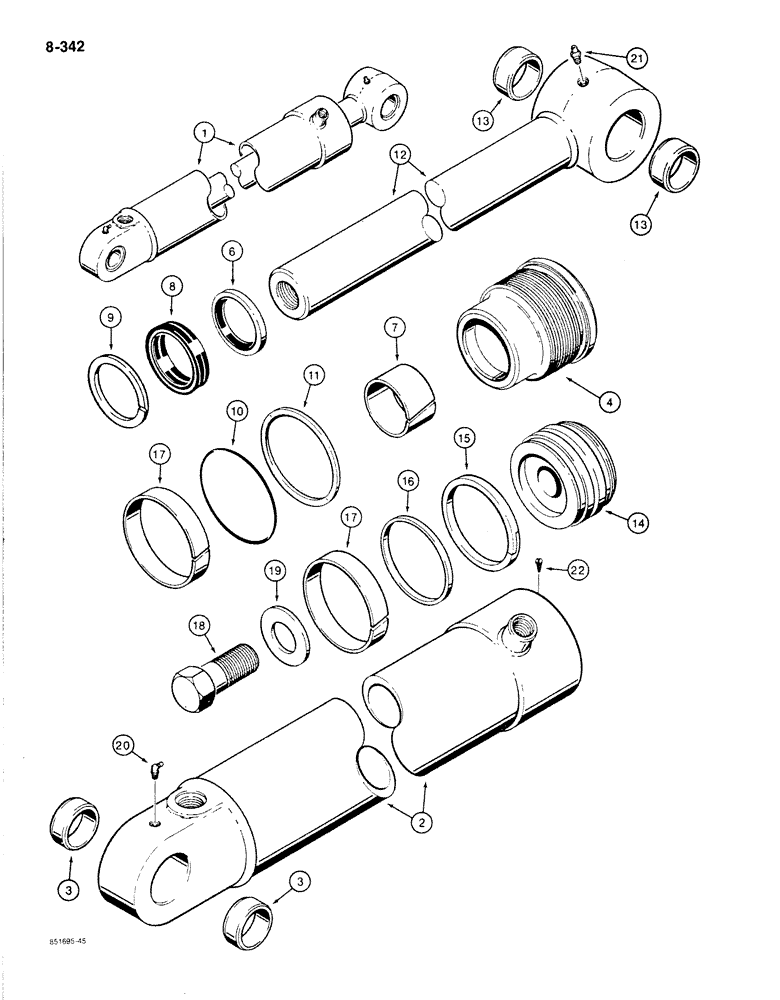

Запчасти Case 780C (8-342) - G105857 BACKHOE BUCKET CYLINDER (08) - HYDRAULICS

1

G105857

CYLINDER

ASSEMBLY - 4-1/2" (114 mm) ID x 33" (838 mm) stroke, bucket, Includes: Ref. 2 - 22

1шт.

2

G105858

TUBE,4.5" DIA x 42.44" L

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

tube

2шт.

G104304

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 11

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

piston rod, outer

1шт.

Part of Seal Kit, P/N G109503.

1шт.

7

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

center

1шт.

Part of Seal Kit, P/N G109503.

1шт.

8

G109228

SEAL,63.45mm ID x 76.25mm OD x 10.69mm Thk

U-cup, with O-ring, piston rod, wide

1шт.

Part of Seal Kit, P/N G109503.

1шт.

8

G100780

SEAL

U-cup, piston rod, service option - severe heat or cold

1шт.

9

G107998

SEAL,63.07mm ID x 79.2mm OD x 4.9mm Thk

buffer, grooved, piston rod, narrow

1шт.

Part of Seal Kit, P/N G109503.

1шт.

10

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

gland

1шт.

Part of Seal Kit, P/N G109503.

1шт.

11

G32284

BACK-UP RING

backup, gland O-ring

1шт.

Part of Seal Kit, P/N G109503.

1шт.

12

G105863

ROD

ASSEMBLY - piston, Includes: Ref. 13

1шт.

13

D52579

BUSHING,57.38mm ID x 69.85mm OD x 28.57mm L

piston rod

2шт.

14

G102182

PISTON ASSY.

cylinder

1шт.

15

G101994

SEAL,RECTANGULAR, 111.02mm ID x 115.75mm OD x 6.96mm Thk

piston

1шт.

Part of Seal Kit, P/N G109503.

1шт.

16

G101995

SEALING RING,Square, 5.28mm Thk x 100.71mm ID

SEALRING RING - backup, piston seal

1шт.

Part of Seal Kit, P/N G109503.

1шт.

17

G101996

WEAR RING,4.5" OD x 0.75" Thk

RING - wear, piston

2шт.

Part of Seal Kit, P/N G109503.

1шт.

18

28-2052

BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8

1шт.

19

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

hardened

1шт.

20

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

22

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

G109503

SEAL

KIT - Includes: Ref. 6 - 11, 15, 16 and 17

1шт.
