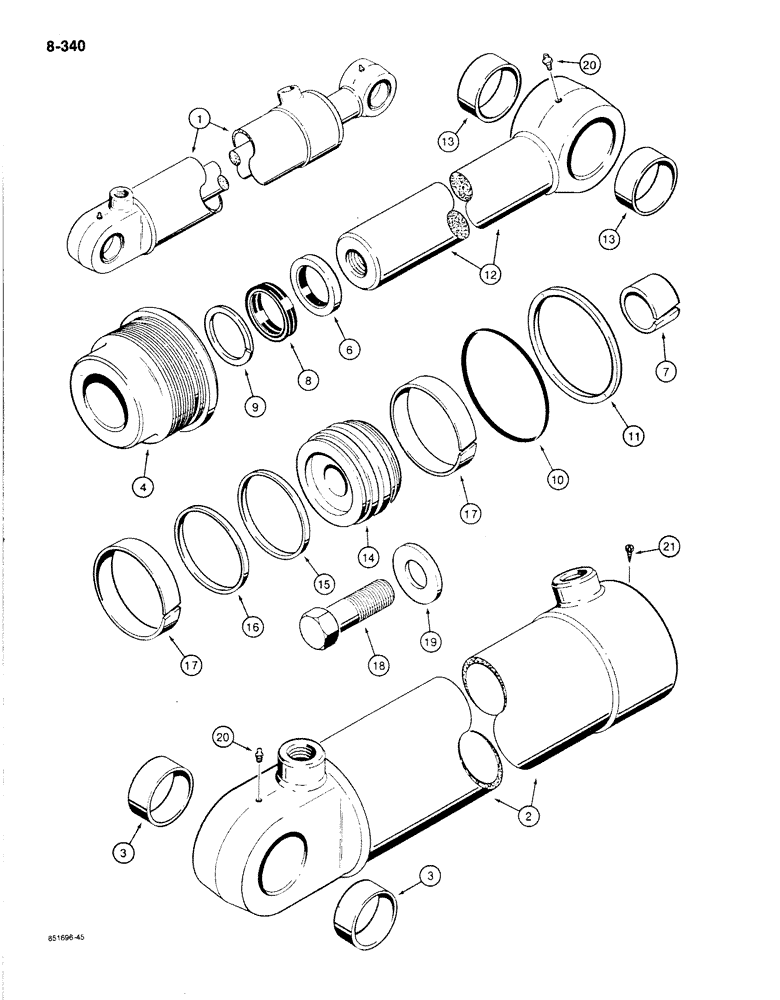

Запчасти Case 780C (8-340) - G103050 BACKHOE DIPPER CYLINDER (08) - HYDRAULICS

1

G103050

CYLINDER

ASSEMBLY - 5" (127 mm) ID x 44-15/16" (1141 mm) stroke, dipper, Includes: Ref. 2 - 21

1шт.

2

G103051

TUBE

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

tube

2шт.

G104320

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 11

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

piston rod, outer

1шт.

Part of Seal Kit, P/N G109432.

1шт.

7

G102428

BEARING,2.75mm ID x 69.85mm OD x 37.85 W

center

1шт.

Part of Seal Kit, P/N G109432.

1шт.

8

G109053

OIL SEAL

U-cup, with O-ring, piston rod, wide

1шт.

Part of Seal Kit, P/N G109432.

1шт.

8

G100781

SEAL ASSY.

U-cup, piston rod, service option - severe heat or cold

1шт.

9

G107999

SEAL

buffer, grooved, piston rod, narrow

1шт.

Part of Seal Kit, P/N G109432.

1шт.

10

39738

O-RING,4.609" ID x 0.139" Width

gland

1шт.

Part of Seal Kit, P/N G109432.

1шт.

11

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of Seal Kit, P/N G109432.

1шт.

12

G103056

ROD ASSY.

piston, 2-3/4" (70 mm) OD, Includes: Ref. 13

1шт.

13

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

piston rod

2шт.

14

G103116

PISTON

cylinder

1шт.

15

G102091

SEAL,128.52mm OD x 6.96mm Thk

piston

1шт.

Part of Seal Kit, P/N G109432.

1шт.

16

G102092

RING,Square, 5.28mm Thk x 113.92mm ID

backup, piston seal

1шт.

Part of Seal Kit, P/N G109432.

1шт.

17

G102090

RING,127mm OD, Ext

wear, piston

2шт.

Part of Seal Kit, P/N G109432.

1шт.

18

28-2456

BOLT,Hex, 1-1/2" - 12 x 3-1/2", Gr 8

hex head, 1-1/2" - 12 NF x 3-1/2", grade 8

1шт.

19

G104990

WASHER

hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

21

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

G109432

KIT

seal, Includes: Ref. 6 - 11, 15, 16 and 17

1шт.
