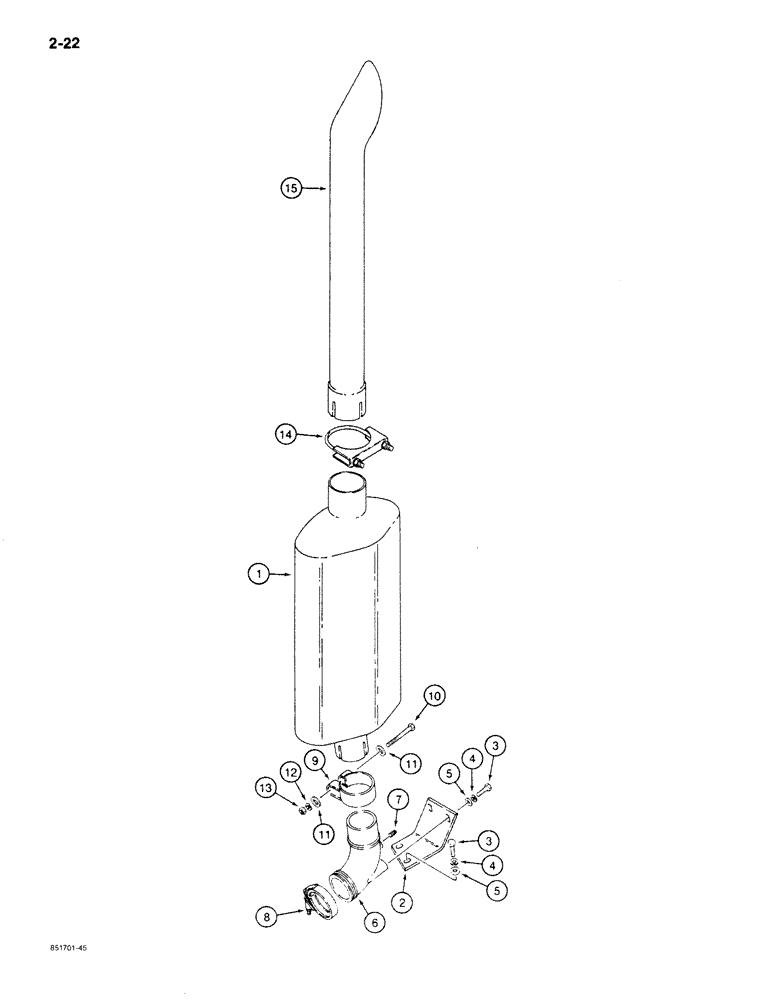

Запчасти Case 780C (2-22) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

A171621

MUFFLER

engine exhaust, noise reduction

1шт.

2

A171823

BRACKET

elbow support

1шт.

3

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

4шт.

4

892-1110

LOCK WASHER,M10

4шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

6

A173623

ELBOW

Muffler adapter

1шт.

7

221-12

PLUG,Sq Hd, 1/4"-18

square head, 1/4" NPT

1шт.

8

A170467

CLAMP,72mm ID

T-bolt

1шт.

9

R27691

CLAMP

muffler

1шт.

10

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

Muffler clamp

1шт.

11

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

flat, 3/8", hardened, plated

2шт.

12

192-21

LOCK WASHER,3/8"

1шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

1шт.

14

L100055

CLAMP

exhaust pipe, includes hardware

1шт.

15

L111575

PIPE

exhaust, muffler, 31-1/2" long

1шт.
