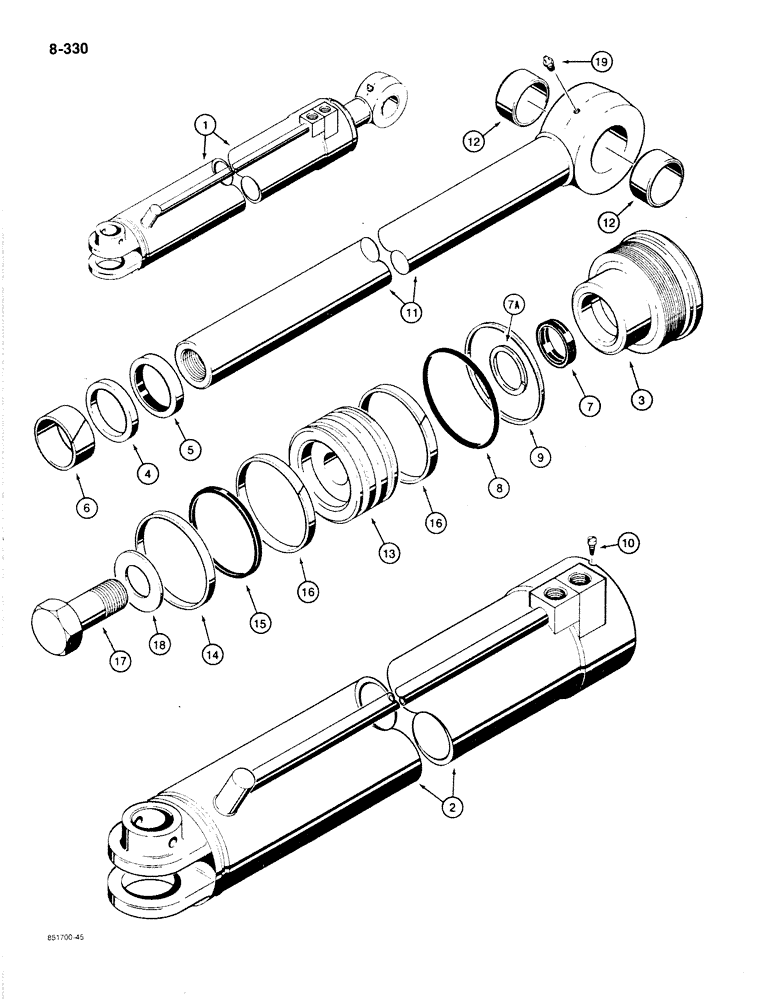

Запчасти Case 780C (8-330) - G101564 AND G101565 LOADER CLAM CYLINDERS, USED WITH 1-1/2" CUBIC YARD CLAM BUCKET (08) - HYDRAULICS

1

G101564

CYLINDER BLOCK

ASSEMBLY - 4" (102 mm) ID x 10" (254 mm) stroke, clam right-hand, Includes: Ref. 2 - 19

1шт.

1

G101565

CYLINDER BLOCK

ASSEMBLY - 4" (102 mm) ID x 10" (254 mm) stroke, clam, left-hand, Includes: Ref. 2 - 19

1шт.

2

G31964

HYD TUBE,18.69" L

cylinder, right-hand

1шт.

2

G31965

HYD TUBE

cylinder, left-hand

1шт.

G107524

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

RING - retaining, bushing

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of Seal Kit, P/N G109423.

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

center

1шт.

Part of Seal Kit, P/N G109423.

1шт.

7

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

U-Cup, with O-ring, piston rod, wide

1шт.

Part of Seal Kit, P/N G109423.

1шт.

7

G100778

SEAL

U-cup, piston rod, service option - severe heat or cold

1шт.

7a

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

buffer, grooved, piston rod, narrow

1шт.

Part of Seal Kit, P/N G109423.

1шт.

8

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

gland

1шт.

Part of Seal Kit, P/N G109423.

1шт.

9

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of Seal Kit, P/N G109423.

1шт.

10

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

11

G33626

ROD

ASSEMBLY - piston, 2" (51 mm) OD, Includes: Ref. 12

1шт.

12

D33127

BUSHING,38.33mm ID x 47.63mm OD x 12.7mm L

piston rod

2шт.

13

G100438

PISTON,100.89mm Bore, 32.8mm Rod, 50.7mm W

cylinder

1шт.

14

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

piston

1шт.

Part of Seal Kit, P/N G109423.

1шт.

15

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

backup, piston seal

1шт.

Part of Seal Kit, P/N G109423.

1шт.

16

G100448

RING,101.6mm OD, Ext

wear, piston

2шт.

Part of Seal Kit, P/N G109423.

1шт.

17

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

1шт.

18

G32351

WASHER

hardened

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

G109423

GASKET KIT

Includes: Ref. 5 - 9, 14, 15 and 16

1шт.
