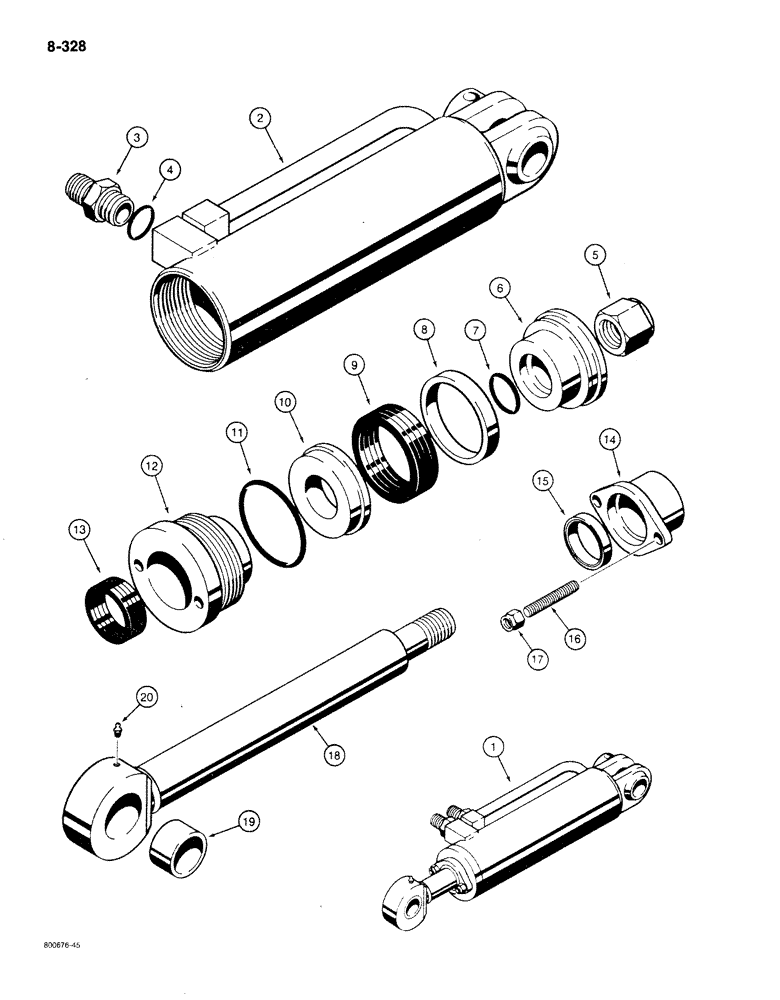

Запчасти Case 780C (8-328) - A17668 AND A17669 CLAM CYLINDERS, USED WITH 1-1/2 CUBIC YARD CLAM BUCKET (08) - HYDRAULICS

1

A17668

CYLINDER

4" (102 mm) ID x 10" (254 mm) stroke, clam, right-hand, no longer available, for complete cylinder assembly, order G101564 cylinder, see Figure 8-330, Includes: Ref. 2 - 20

1шт.

1

A17669

CYLINDER

ASSEMBLY - 4" (102 mm) ID x 10" (254 mm) stroke, clam, left-hand, no longer available, for complete cylinder assembly, order G101565 cylinder, see Figure 8-330, Includes: Ref. 2 - 20

1шт.

2

S27939

TUBE ASSY.

right-hand, Includes: Ref. 3 - 4

1шт.

2

S27940

CYLINDER

TUBE ASSEMBLY - left-hand, Includes: Ref. 3 - 4

1шт.

3

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Straight, male

2шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Adapter

1шт.

5

131-22

LOCK NUT,1 1/4"-12, GB

1шт.

6

S28225

PISTON

half, nut end

1шт.

7

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

8

S23703

RING

wiper

1шт.

9

S25984

PACKING

piston

1шт.

10

S28259

PISTON

half, eye end, Includes: Ref. 11 - 12

1шт.

11

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

gland

1шт.

12

S242855

HEAD (CYLINDER)

GLAND - packing, outer

1шт.

13

S28120

CUP

PACKING - gland

1шт.

14

S28562

FLANGE

GLAND - packing, inner

1шт.

15

S40025

WIPER SEAL

wiper

1шт.

16

S40005

STUD

flange

2шт.

17

131-181

LOCK NUT,3/8"-24, GC

hex, self-locking, 3/8" - 24 NF

2шт.

18

S26065

PISTON ROD

cylinder, Includes: Ref. 19

1шт.

19

S23796

BUSHING

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.
