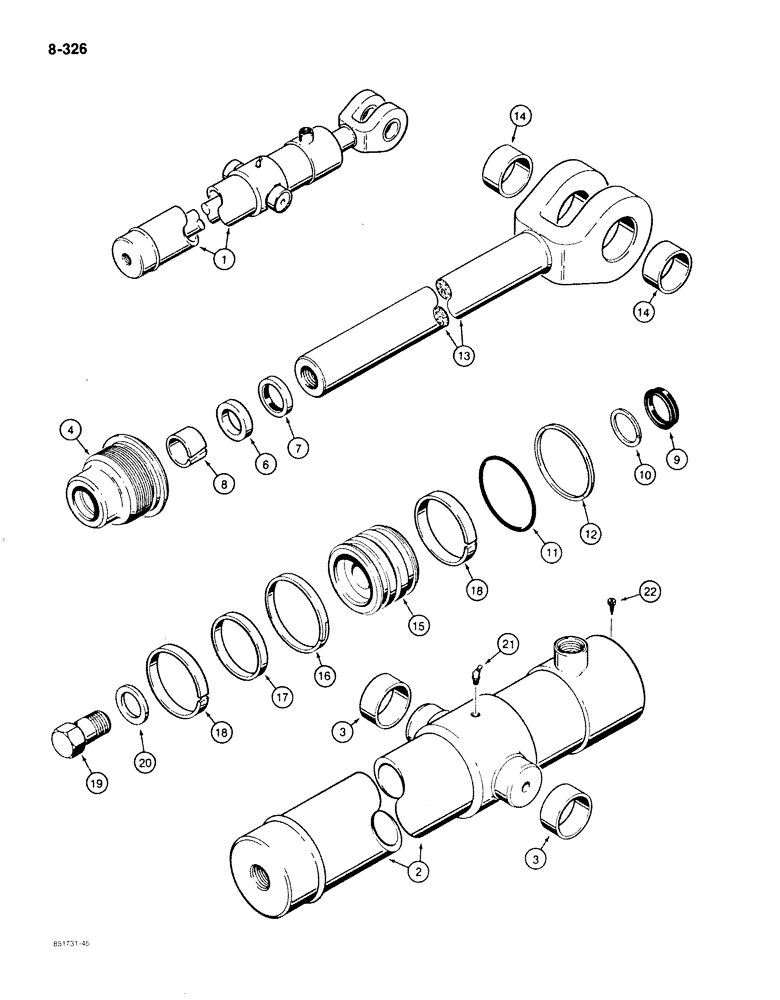

Запчасти Case 780C (8-326) - G103753 LOADER BUCKET TILT CYLINDER (08) - HYDRAULICS

1

G103753

CYLINDER

ASSEMBLY - 3-1/2" (89 mm) ID x 23-3/8" (594 mm) stroke, bucket, tilt, Includes: Ref. 2 - 22

2шт.

2

G103754

TUBE,30.51" L

TUBE ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

G103411

BUSHING,38mm ID x 47.4mm OD x 20.57mm L

tube

2шт.

G104402

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 12

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

RESERVED

1шт.

6

NSS

NOT SOLD SEPARAT

RING - retaining, bushing

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer

1шт.

Part of Seal Kit, P/N G109453.

1шт.

8

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

CENTER

1шт.

Part of Seal Kit, P/N G109453.

1шт.

9

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

U-cup, with O-ring, piston rod, wide

1шт.

Part of Seal Kit, P/N G109453.

1шт.

9

G100778

SEAL

U-cap, piston rod, service option - severe heat or cold

1шт.

10

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

buffer, grooved, piston rod, narrow

1шт.

Part of Seal Kit, P/N G109453.

1шт.

11

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

gland

1шт.

Part of Seal Kit, P/N G109453.

1шт.

12

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

backup, gland O-ring

1шт.

Part of Seal Kit, P/N G109453.

1шт.

13

G103089

ROD

ASSEMBLY - piston, 2" (51 mm) OD, Includes: Ref. 14

1шт.

14

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

piston rod

2шт.

15

G100692

PISTON

cylinder

1шт.

16

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

Piston

1шт.

Part of Seal Kit, P/N G109453.

1шт.

17

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

backup, piston seal

1шт.

Part of Seal Kit, P/N G109453.

1шт.

18

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

Piston

2шт.

Part of Seal Kit, P/N G109453.

1шт.

19

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

1шт.

20

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

hardened

1шт.

21

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

Special short

1шт.

22

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

G109453

GASKET KIT

Includes Ref. 7 - 12, 16, 17 and 18

1шт.
