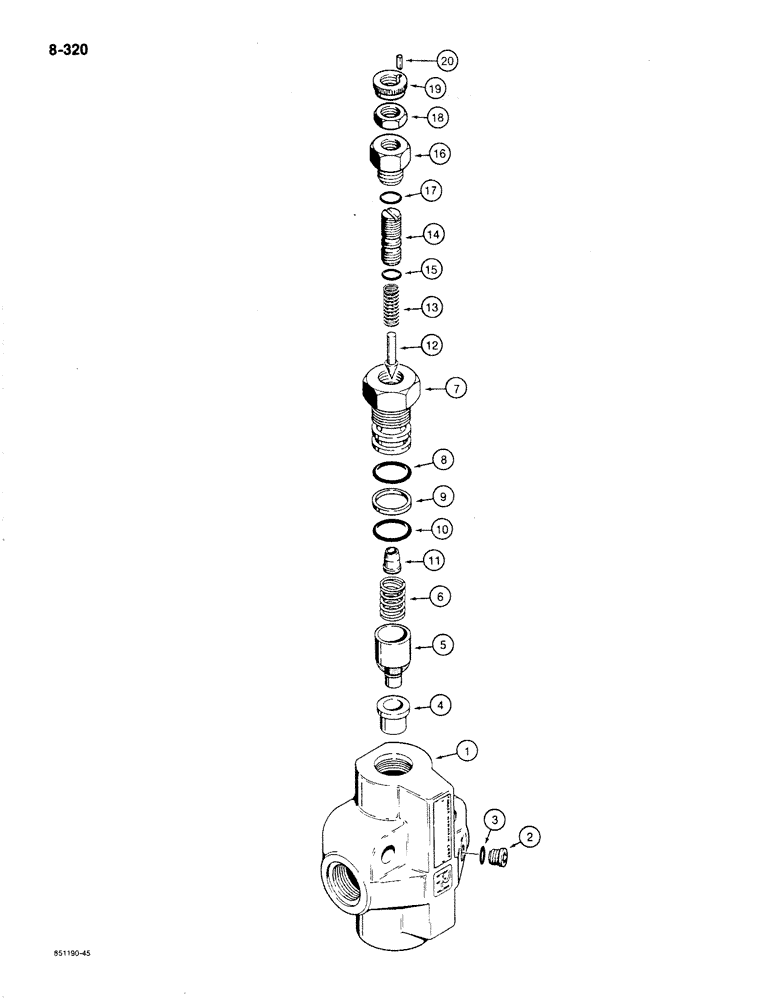

Запчасти Case 780C (8-320) - D131348 HYDRAULIC BACKHOE RELIEF VALVE (08) - HYDRAULICS

D131348

LOCK VALVE

ASSEMBLY - relief, backhoe, Includes: Ref. 1 - 20

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - relief valve

1шт.

2

86529630

PLUG,Hex Soc, 3/8"-24 ORB

Gauge Port, Includes Ref. 3

1шт.

3

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

Plug

1шт.

4

D26259

SEAT

poppet

1шт.

5

L30687

SPOOL

POPPET - relief valve

1шт.

6

D26261

VALVE SPRING

poppet

1шт.

N9907

VALVE

ASSEMBLY - relief, less housing, preset pressure setting, Includes: Ref. 7 - 19

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - relief, hex head

1шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Large, body head

1шт.

9

L30443

BACK-UP RING,0.547" ID x 0.049" Width

backup, small O-ring

1шт.

10

L30444

O-RING,0.521" ID x 0.661" OD

small

1шт.

11

NSS

NOT SOLD SEPARAT

SEAT - plunger

1шт.

12

NSS

NOT SOLD SEPARAT

PLUNGER - relief valve

1шт.

13

NSS

NOT SOLD SEPARAT

SPRING - plunger

1шт.

14

NSS

NOT SOLD SEPARAT

SCREW - adjusting, relief valve

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - adjusting screw, small

1шт.

16

NSS

NOT SOLD SEPARAT

PLUG - end, special

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

18

NSS

NOT SOLD SEPARAT

NUT - hex, jam

1шт.

19

NSS

NOT SOLD SEPARAT

NUT - special, dowel pin

1шт.

20

N9911

AXLE PIN

dowel, special, relief valve

1шт.
