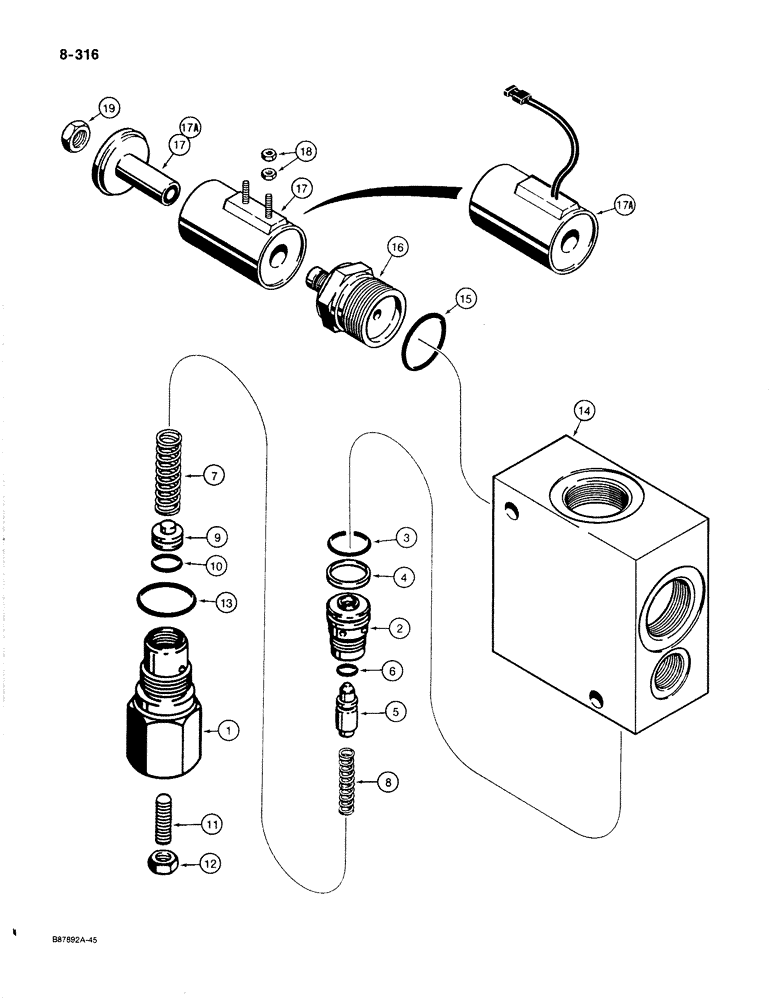

Запчасти Case 780C (8-316) - SOLENOID RELIEF VALVE (08) - HYDRAULICS

D139524

VALVE, PRESSURE RELI

EF ASSEMBLY - solenoid, relief, backhoe boom lock, used on models with 24 volt electrical circuit, if used, Includes: Ref. 1 - 19

1шт.

D139523

HYDRAULIC VALVE

ASSEMBLY - solenoid, relief, backhoe boom lock, used on models with 12 volt electrical circuit, if used, Includes: Ref. 1 - 19

1шт.

G110467

VALVE, PRESSURE RELI

EF ASSEMBLY - circuit, relief, solenoid, used in production, order G110077 kit for service, Includes: Ref. 1 - 13

1шт.

Part of Service Kit, P/N G110077.

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

2

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

3

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

relief valve seat

1шт.

4

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, seat O-ring

1шт.

5

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - poppet

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING - relief, outer

1шт.

8

NSS

NOT SOLD SEPARAT

SPRING - relief, inner

1шт.

9

NSS

NOT SOLD SEPARAT

PISTON - relief valve

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING -piston

1шт.

11

178-890

SET SCREW,Hex Soc, 5/16"-24 x 1"

hex socket headless, 5/16" - 24 NF x 1", oval point, plated

1шт.

12

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Body

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - solenoid

1шт.

15

L33129

O-RING,1.109" ID x 1.387" OD x 0.139"

solenoid body

1шт.

16

NSS

NOT SOLD SEPARAT

SOLENOID - relief

1шт.

17

N7469

COIL ASSY.

solenoid, component parts not serviced separately, used on models with 24 volt electrical circuit

1шт.

17a

N14634

COIL

solenoid, component parts not serviced separately, used on models with 12 volt electrical circuit

1шт.

18

129-16

NUT,#8-32

Used on models with 24 volt electrical circuit

4шт.

19

131-813

NUT,3/8"-24

hex, self-locking, 3/8" - 24 NF

1шт.

G110077

KIT

service for G110467 circuit relief valve, kit includes an instruction sheet and G110078 circuit relief valve (Refs. 1-13) which is the same as G110467 except with a different pressure setting

1шт.
