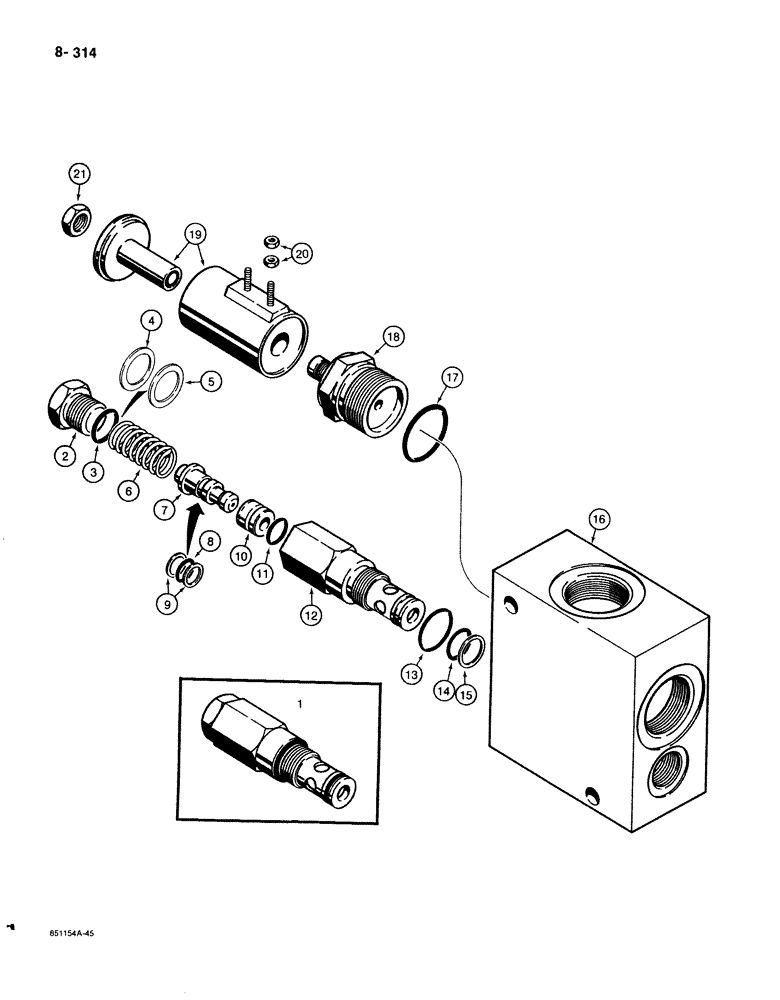

Запчасти Case 780C (8-314) - L104686 SOLENOID RELIEF, USED ON MODELS WITH 24 VOLT ELECTRICAL CIRCUIT (08) - HYDRAULICS

L104686

LOCK VALVE

ASSEMBLY - solenoid, relief, backhoe boom lock, no longer available, for service order D139524 24 volt solenoid relief valve on Figure 8-316, Includes: Ref. 1 - 21

1шт.

1

N7468

SPOOL

SPARE PART RELIEF ASSEMBLY - solenoid, Includes: Ref. 2 - 15

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG - end, relief

1шт.

3

F8222

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

end plug

1шт.

4

N9955

SPACER

flat, 23/32" OD x 13/32" ID x 3/64" thick

1шт.

5

N9954

SPACER

flat, 11/16" OD x 15/32" ID x 1/64" thick

1шт.

6

N7470

VALVE SPRING

relief

1шт.

7

NSS

NOT SOLD SEPARAT

SPOOL - solenoid

1шт.

8

N8539

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

seal

1шт.

9

L31330

BACK-UP RING,109mm ID x 128.81mm OD x 12mm Thk

backup, spool

2шт.

10

N7471

SEAT

spool

1шт.

11

A40109

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

seat

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - solenoid

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Large

1шт.

14

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

small

1шт.

15

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

backup, small O-ring

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

17

L33129

O-RING,1.109" ID x 1.387" OD x 0.139"

solenoid body

1шт.

18

NSS

NOT SOLD SEPARAT

SOLENOID - relief

1шт.

19

N7469

COIL ASSY.

solenoid, component parts not serviced separately

1шт.

20

129-16

NUT,#8-32

4шт.

21

131-813

NUT,3/8"-24

hex, self-locking, 3/8" - 24 NF

1шт.
