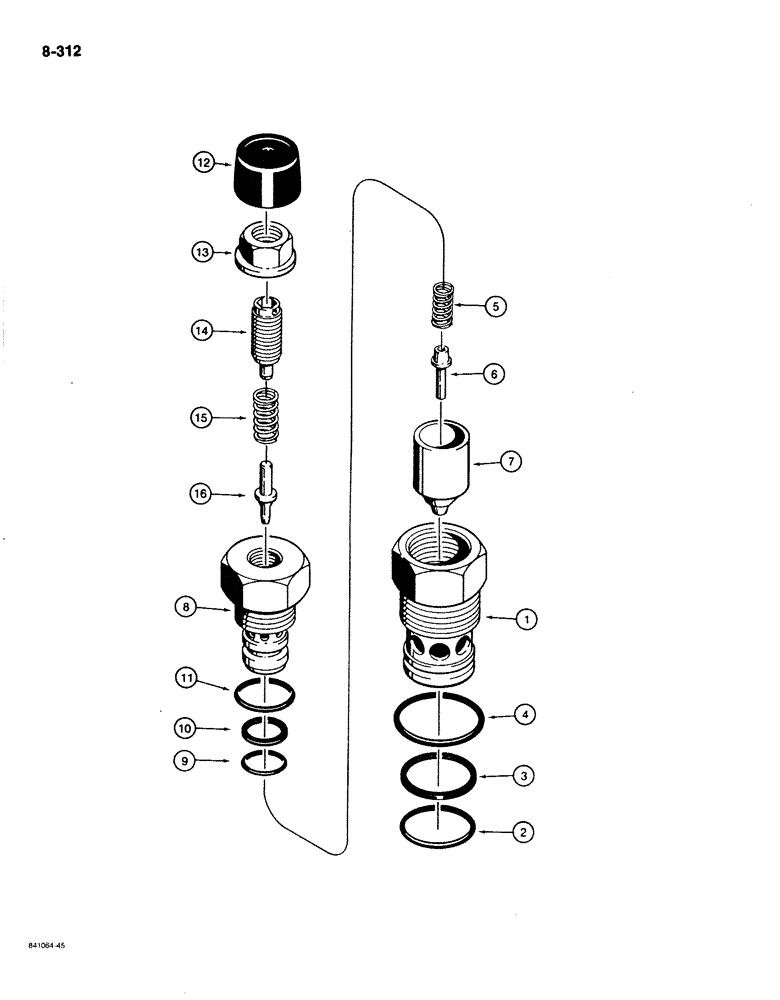

Запчасти Case 780C (8-312) - BACKHOE CONTROL VALVE, D128695 ANTICAVITATION AND RELIEF VALVE (08) - HYDRAULICS

D128695

VALVE

ASSEMBLY - anticavitation and relief, replaces 6 hole valves used on some models, used in the boom, bucket, dipper, and swing sections, Includes: Ref. 1 - 16

8шт.

Any 6 hole perimeter valves should be replaced with an 8 hole perimeter valve. Pressure setting is not preset for these applications. Please refer to your 780C Service Manual for the correct pressure settings.

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve, 8 holes around perimeter

1шт.

2

A141835

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

small, body

1шт.

3

R31052

O-RING,15/16" ID x 1-1/16" OD x 3/64"

RING - backup, small

1шт.

4

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

large, body

1шт.

5

N9267

SPRING

plunger

1шт.

6

N9264

PLUNGER

valve

1шт.

7

N9263

PISTON

POPPET - anticavitation

1шт.

8

N13269

SEAT, VALVE

1шт.

10

N13271

O-RING

special, one-piece, with O-ring and backup ring, replaces two-piece seal

1шт.

11

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

large, poppet

1шт.

12

N9270

CAP

valve

1шт.

13

N9269

SPECIAL NUT

special

1шт.

14

N9266

ADJUSTMENT SCREW,M10 x 1 x 1.14mm

special, adjusting

1шт.

15

N13270

SPRING

relief

1шт.

16

N9265

PISTON

POPPET - relief

1шт.
